固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7441501FIXED IND 12UH 14.5A 8 MOHM TH Würth Elektronik |
3,656 |
|
数据手册 |
WE-SI | Radial | Bulk | Active | Toroidal | Iron Powder | 12 µH | ±20% | 14.5 A | 6.9A | Unshielded | 8mOhm Max | - | 44.6MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.122" Dia x 0.571" W (28.50mm x 14.50mm) | - |
|

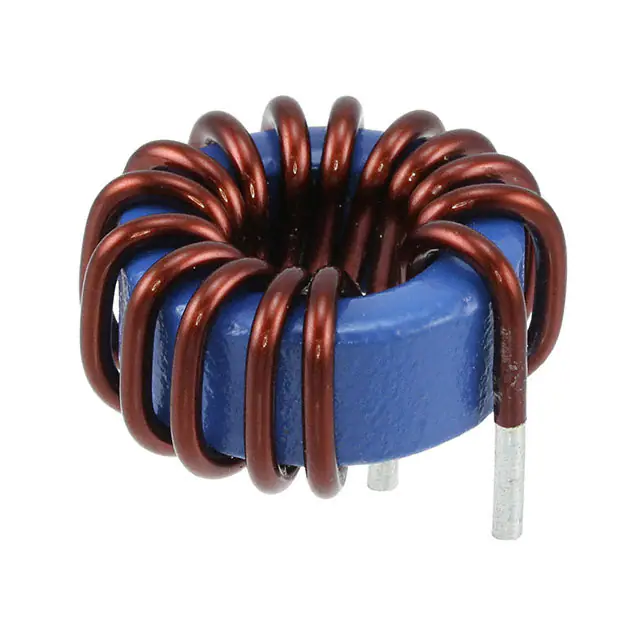

S14100033FIXED IND 15UH 15A 5 MOHM TH Würth Elektronik |
1,456 |
|
数据手册 |
WE-FI | Radial, Horizontal (Open) | Tray | Active | Toroidal | Ferrite | 15 µH | ±20% | 15 A | - | Unshielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.181" Dia (30.00mm) | 0.630" (16.00mm) |
|
7447798250FIXED IND 2.5UH 13.7A 4.95 MOHM Würth Elektronik |
1,817 |
|
数据手册 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.5 µH | ±30% | 13.7 A | 10.1A | Shielded | 4.95mOhm Max | - | 57MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
744152FIXED IND 82UH 7.7A 30 MOHM TH Würth Elektronik |
1,950 |
|
数据手册 |
WE-SI | Radial, Vertical Cylinder (Open) | Bag | Active | Toroidal | Iron Powder | 82 µH | ±20% | 7.7 A | 1.7A | Unshielded | 30mOhm Max | - | 5.4MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.102" Dia x 0.472" W (28.00mm x 12.00mm) | - |
|
7443782012068FIXED IND 6.8UH 20.6A 5 MOHM TH Würth Elektronik |
4,901 |
|
数据手册 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±20% | 20.6 A | 30.6A | Shielded | 5mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|

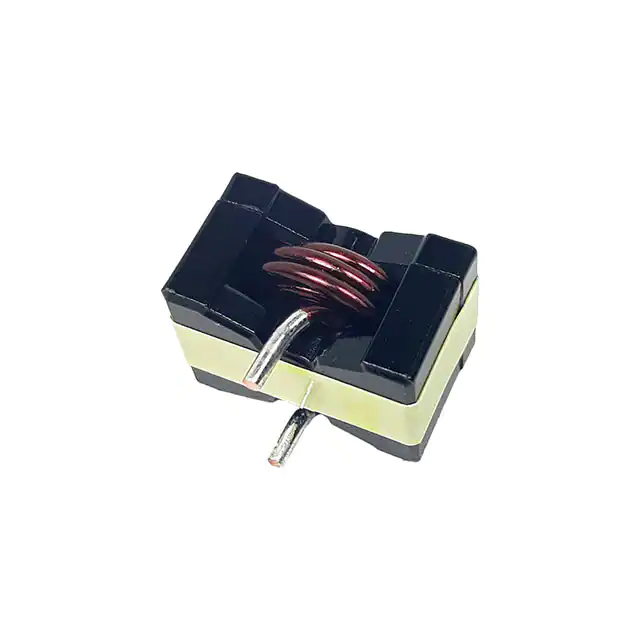

7443782012047FIXED IND 4.7UH 28.7A 2.4MOHM TH Würth Elektronik |
3,299 |
|
数据手册 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 4.7 µH | ±20% | 28.7 A | 29.8A | Shielded | 2.4mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
7443782012150FIXED IND 15UH 20.6A 5 MOHM TH Würth Elektronik |
1,344 |
|
数据手册 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±20% | 20.6 A | 12.9A | Shielded | 5mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
78439370100WE-XHMA SMT POWER INDUCTOR 1510; Würth Elektronik |
2,689 |
|
数据手册 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 11.5 A | 31.2A | Shielded | 6.4mOhm | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
|
78439370220WE-XHMA SMT POWER INDUCTOR 1510; Würth Elektronik |
3,856 |
|
数据手册 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 8 A | 22.35A | Shielded | 12.5mOhm | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
7443762504022FIXED IND 2.2UH 30A 1.96 MOHM TH Würth Elektronik |
4,991 |
|
数据手册 |
WE-HCFT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 2.2 µH | ±20% | 30 A | - | Shielded | 1.96mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.992" L x 0.866" W (25.20mm x 22.00mm) | 0.161" (4.10mm) |
