固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

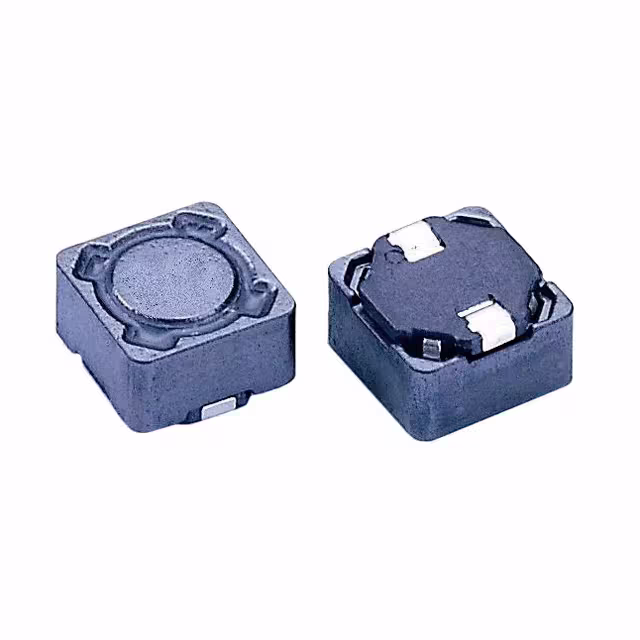

SCRH74B-331FIXED IND 330UH 320MA 1.86OHM SM Signal Transformer |
3,231 |
|
数据手册 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 320 mA | 320mA | Shielded | 1.86Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
|
SCRH74B-390FIXED IND 39UH 910MA 230MOHM SMD Signal Transformer |
4,021 |
|
数据手册 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 910 mA | 910mA | Shielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
|
SCRH74B-391FIXED IND 390UH 290MA 2.85OHM SM Signal Transformer |
1,416 |
|
数据手册 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 390 µH | ±20% | 290 mA | 290mA | Shielded | 2.85Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
|
SCRH74B-470FIXED IND 47UH 880MA 260MOHM SMD Signal Transformer |
2,014 |
|
数据手册 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 880 mA | 880mA | Shielded | 260mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
|
SCRH74B-471FIXED IND 470UH 260MA 3.01OHM SM Signal Transformer |
4,825 |
|
数据手册 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 260 mA | 260mA | Shielded | 3.01Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
|
SCRH74B-560FIXED IND 56UH 750MA 350MOHM SMD Signal Transformer |
1,082 |
|
数据手册 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 750 mA | 750mA | Shielded | 350mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
|
SCRH74B-561FIXED IND 560UH 230MA 3.62OHM SM Signal Transformer |
1,935 |
|
数据手册 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±20% | 230 mA | 230mA | Shielded | 3.62Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
|
SCRH74B-680FIXED IND 68UH 690MA 380MOHM SMD Signal Transformer |
1,429 |
|
数据手册 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 690 mA | 690mA | Shielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
|
SCRH74B-681FIXED IND 680UH 220MA 4.63OHM SM Signal Transformer |
4,341 |
|
数据手册 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 220 mA | 220mA | Shielded | 4.63Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
|
SCRH74B-820FIXED IND 82UH 610MA 430MOHM SMD Signal Transformer |
4,419 |
|
数据手册 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 610 mA | 610mA | Shielded | 430mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
