固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

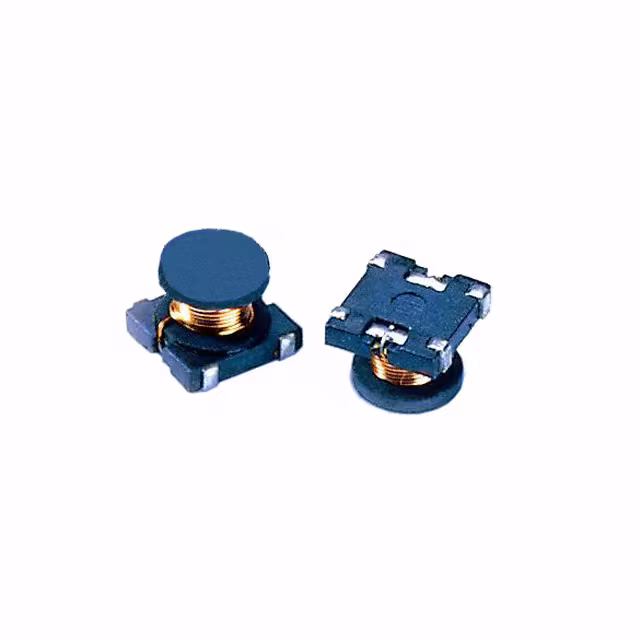

SC32B-560FIXED IND 56UH 430MA 1.25OHM SMD Signal Transformer |
3,459 |
|
数据手册 |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 430 mA | 290mA | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-680FIXED IND 68UH 400MA 1.45OHM SMD Signal Transformer |
4,012 |
|
数据手册 |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 400 mA | 275mA | Unshielded | 1.45Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-820FIXED IND 82UH 360MA 1.85OHM SMD Signal Transformer |
4,680 |
|
数据手册 |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 360 mA | 235mA | Unshielded | 1.85Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
SC53LC-151FIXED IND 150UH 460MA 1.24OHM SM Signal Transformer |
2,365 |
|
数据手册 |
SC53LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 460 mA | 210mA | Shielded | 1.24Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.118" (3.00mm) |
|
|
SC53LC-221FIXED IND 220UH 390MA 2.04OHM SM Signal Transformer |
4,786 |
|
数据手册 |
SC53LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 390 mA | 180mA | Shielded | 2.04Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.118" (3.00mm) |
|
|
SC53LC-330FIXED IND 33UH 1.09A 288MOHM SMD Signal Transformer |
3,834 |
|
数据手册 |
SC53LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.09 A | 720mA | Shielded | 288mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.118" (3.00mm) |
|
|
SC53LC-680FIXED IND 68UH 730MA 545MOHM SMD Signal Transformer |
3,812 |
|
数据手册 |
SC53LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 730 mA | 510mA | Shielded | 545mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.118" (3.00mm) |
|
SCRH127-121FIXED IND 120UH 1.7A 250MOHM SMD Signal Transformer |
2,561 |
|
数据手册 |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | 1.7 A | 1.6A | Shielded | 250mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-181FIXED IND 180UH 1.52A 350MOHM SM Signal Transformer |
4,370 |
|
数据手册 |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 1.52 A | 1.3A | Shielded | 350mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-1R2FIXED IND 1.2UH 12A 7 MOHM SMD Signal Transformer |
1,166 |
|
数据手册 |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±30% | 12 A | 9.8A | Shielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
