固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIML-0603-120K-TFIXED IND 12UH 3MA 2.75 OHM SMD Abracon LLC |
7,469 |
|
数据手册 |
AIML-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 12 µH | ±10% | 3 mA | - | Shielded | 2.75Ohm Max | 35 @ 2MHz | 22MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
ATFC-0402-1N9B-TFIXED IND 1.9NH 560MA 350MOHM SM Abracon LLC |
6,663 |
|
数据手册 |
ATFC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | 1.9 nH | ±0.1nH | 560 mA | - | Unshielded | 350mOhm Max | 13 @ 500MHz | 8GHz | - | -45°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
ATFC-0402-3N3B-TFIXED IND 3.3NH 380MA 450MOHM SM Abracon LLC |
3,816 |
|
数据手册 |
ATFC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | 3.3 nH | ±0.1nH | 380 mA | - | Unshielded | 450mOhm Max | 13 @ 500MHz | 6GHz | - | -45°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|

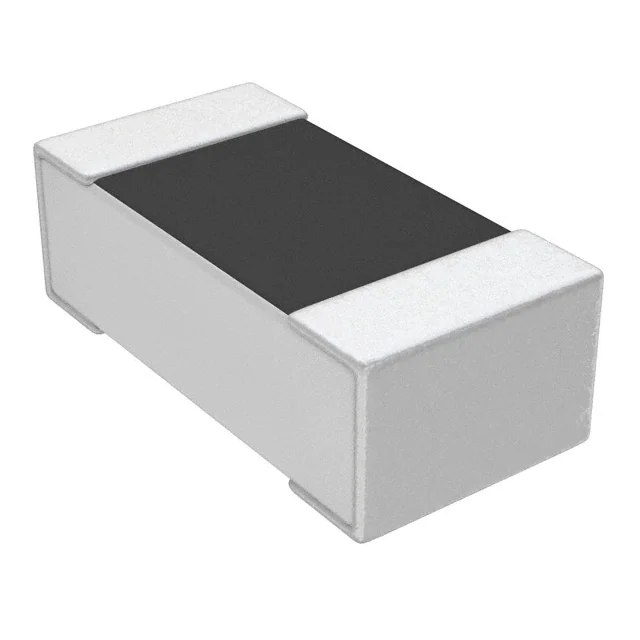

ATFC-0201-1N0B-TFIXED IND 1NH 300MA 300 MOHM SMD Abracon LLC |
10,000 |
|
数据手册 |
ATFC-0201 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | 1 nH | ±0.1nH | 300 mA | - | Unshielded | 300mOhm Max | 8 @ 500MHz | 9GHz | - | -25°C ~ 85°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.011" (0.28mm) |
|
AIMC-Q0402-18NG-TIND 18NH 0.3A 650MOHM Abracon LLC |
10,000 |
|
数据手册 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 18 nH | ±2% | 300 mA | - | Unshielded | 650mOhm Max | 8 @ 100MHz | 2.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
AIMC-Q0402-15NG-TIND 15NH 0.4A 550MOHM Abracon LLC |
10,000 |
|
数据手册 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±2% | 400 mA | - | Unshielded | 550mOhm Max | 8 @ 100MHz | 2.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
AIMC-Q0402-10NG-TIND 10NH 0.5A 300MOHM Abracon LLC |
10,000 |
|
数据手册 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±2% | 500 mA | - | Unshielded | 300mOhm Max | 8 @ 100MHz | 3.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
AIMC-Q0402-27NG-TIND 27NH 0.3A 800MOHM Abracon LLC |
10,000 |
|
数据手册 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 27 nH | ±2% | 300 mA | - | Unshielded | 800mOhm Max | 8 @ 100MHz | 1.7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
AIMC-Q0402-6N8G-TIND 6.8NH 0.6A 250MOHM Abracon LLC |
9,970 |
|
数据手册 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 6.8 nH | ±2% | 600 mA | - | Unshielded | 250mOhm Max | 8 @ 100MHz | 4.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
AIMC-Q0402-8N2G-TIND 8.2NH 0.5A 280MOHM Abracon LLC |
9,938 |
|
数据手册 |
AIMC-Q0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 8.2 nH | ±2% | 500 mA | - | Unshielded | 280mOhm Max | 8 @ 100MHz | 3.7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
