固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIAP-01-471K-TFIXED IND 470UH 240MA 3.4 OHM TH Abracon LLC |
3,338 |
|
数据手册 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±10% | 240 mA | - | Unshielded | 3.4Ohm Max | - | 1.4MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
ASPI-6045T-101M-TIND 100UH 0.8A 563M Abracon LLC |
8,940 |
|
数据手册 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 800 mA | 950mA | Shielded | 563mOhm Max | - | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

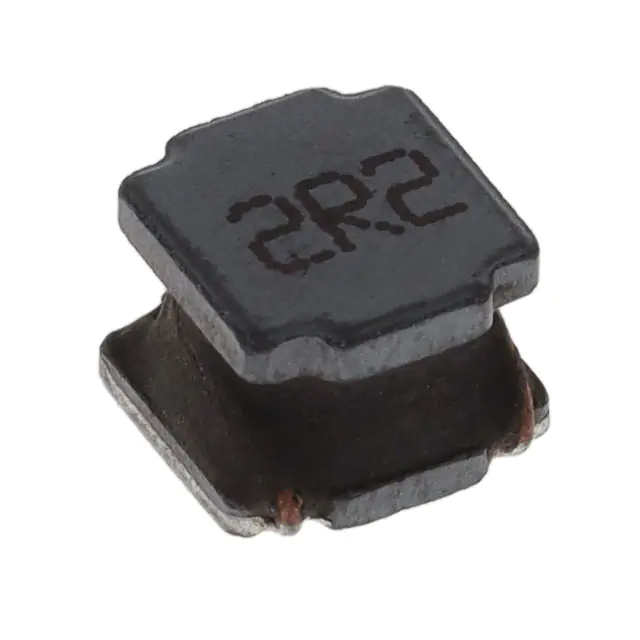

ASPI-6045T-2R2N-TIND 2.2UH 4.6A 18M Abracon LLC |
1,640 |
|
数据手册 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 4.6 A | 6.75A | Shielded | 18mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
AIAP-01-682K-TFIXED IND 6.8MH 59MA 60 OHM TH Abracon LLC |
8,740 |
|
数据手册 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 6.8 mH | ±10% | 59 mA | - | Unshielded | 60Ohm Max | - | 360kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
|
AIAP-01-102K-TFIXED IND 1MH 160MA 7.9 OHM TH Abracon LLC |
9,730 |
|
数据手册 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 160 mA | - | Unshielded | 7.9Ohm Max | - | 1MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|

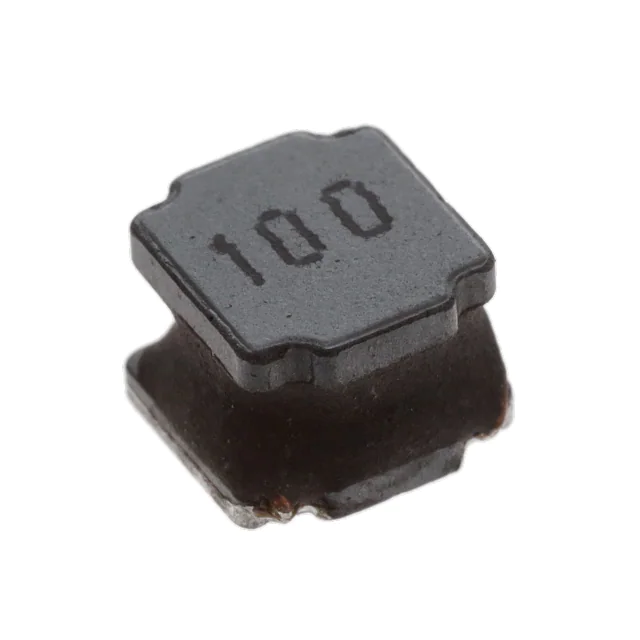

ASPI-6045T-100M-TIND 10UH 2.45A 62M Abracon LLC |
7,355 |
|
数据手册 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 2.45 A | 3.2A | Shielded | 62mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
ASPI-6045T-4R7M-TIND 4.7UH 3.3A 34M Abracon LLC |
3,600 |
|
数据手册 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 3.3 A | 4.97A | Shielded | 34mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
ASPI-6045S-7R5M-TFIXED IND 7.5UH 2.9A 34 MOHM SMD Abracon LLC |
5,261 |
|
数据手册 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.5 µH | ±20% | 2.9 A | 3.5A | Shielded | 34mOhm | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-6045S-2R2N-TFIXED IND 2.2UH 4.6A 14 MOHM SMD Abracon LLC |
3,328 |
|
数据手册 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.6 A | 6.75A | Shielded | 14mOhm | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-6045S-510M-TFIXED IND 51UH 1.15A 207MOHM SMD Abracon LLC |
3,209 |
|
数据手册 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 51 µH | ±20% | 1.15 A | 1.35A | Shielded | 207mOhm | - | 6.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
