固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMELA2012S-2R2MTFIXED IND 2.2UH 2.4A 90MOHM SMD Abracon LLC |
20,975 |
|
数据手册 |
AMELA2012S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 2.4 A | 2.7A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

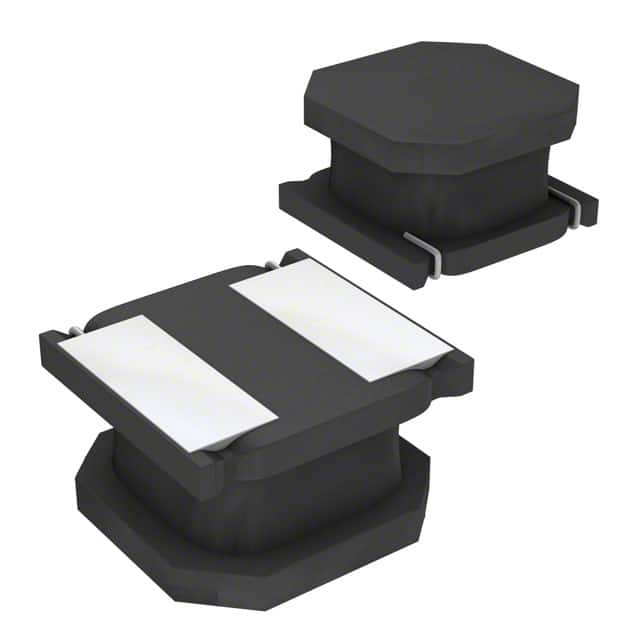

ASPI-2012-4R7M-TFIXED IND 4.7UH 820MA 294MOHM SM Abracon LLC |
4,600 |
|
数据手册 |
ASPI-2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 820 mA | 970mA | Shielded | 294mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|

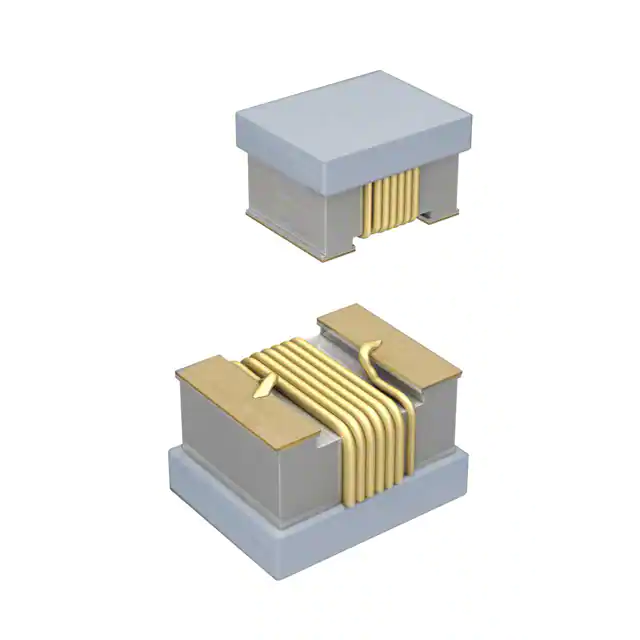

AISC-1210HS-330K-T2FIXED IND 33UH 220MA 5 OHM SMD Abracon LLC |
3,880 |
|
数据手册 |
AISC-1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 220 mA | 250mA | Unshielded | 5Ohm Max | 10 @ 1MHz | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.051" (1.30mm) |
|
|
AISC-1210HS-3R3K-T2FIXED IND 3.3UH 650MA 750MOHM SM Abracon LLC |
3,675 |
|
数据手册 |
AISC-1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 650 mA | 700mA | Unshielded | 750mOhm Max | 10 @ 1MHz | 100MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.051" (1.30mm) |
|
|
AISC-1210HS-6R8K-T2FIXED IND 6.8UH 480MA 1.1OHM SMD Abracon LLC |
2,287 |
|
数据手册 |
AISC-1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 480 mA | 500mA | Unshielded | 1.1Ohm Max | 10 @ 1MHz | 55MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.051" (1.30mm) |
|

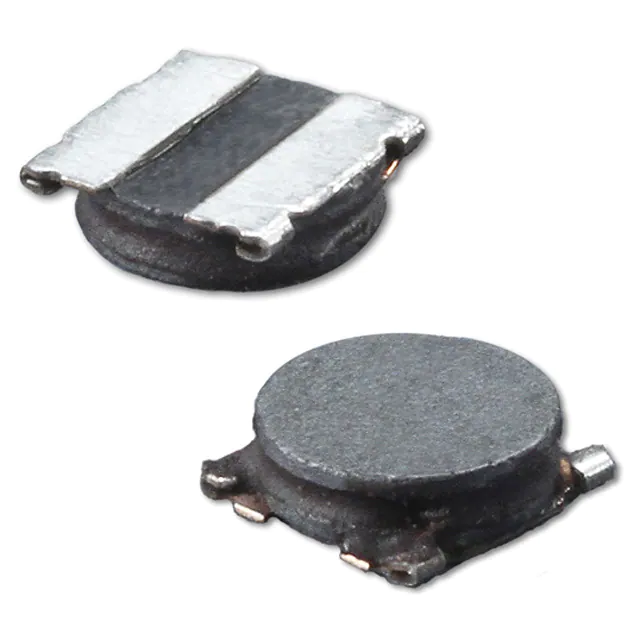

ASPI-0310FS-4R7M-T2FIXED IND 4.7UH 1.7A 175MOHM SMD Abracon LLC |
2,243 |
|
数据手册 |
ASPI-0310FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 1.7 A | 850mA | Shielded | 175mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
AISC-0805HQ-10NJ-TFIXED IND 10NH 1.6A 60 MOHM SMD Abracon LLC |
1,848 |
|
数据手册 |
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 1.6 A | - | Unshielded | 60mOhm Max | 80 @ 1GHz | 3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
AISC-1008F-2R2G-TFIXED IND 2.2UH 520MA 1.15OHM SM Abracon LLC |
1,990 |
|
数据手册 |
AISC-1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±2% | 520 mA | - | Unshielded | 1.15Ohm Max | 30 @ 50MHz | 150MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
AIMC-0603-27NJ-TFIXED IND 27NH 300MA 450MOHM SMD Abracon LLC |
11,023 |
|
数据手册 |
AIMC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 27 nH | ±5% | 300 mA | - | Unshielded | 450mOhm Max | 12 @ 100MHz | 1.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
AISC-0603F-R47J-TFIXED IND 470NH 470MA 370MOHM SM Abracon LLC |
22,431 |
|
数据手册 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 470 mA | - | Unshielded | 370mOhm Max | - | 670MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
