固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0805-R47G-TFIXED IND 470NH 250MA 1.72OHM SM Abracon LLC |
1,905 |
|
数据手册 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±2% | 250 mA | - | Unshielded | 1.72Ohm Max | 33 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
AISC-1008-R0047J-TFIXED IND 4.7NH 1A 110 MOHM SMD Abracon LLC |
1,699 |
|
数据手册 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±5% | 1 A | - | Unshielded | 110mOhm Max | 50 @ 1.5GHz | 6GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-1008F-1R5G-TFIXED IND 1.5UH 630MA 760MOHM SM Abracon LLC |
193,284 |
|
数据手册 |
AISC-1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±2% | 630 mA | - | Unshielded | 760mOhm Max | 35 @ 50MHz | 190MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
ASMPH-0805-4R7M-TFIXED IND 4.7UH 800MA 250MOHM SM Abracon LLC |
56,688 |
|
数据手册 |
ASMPH-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 800 mA | 280mA | Shielded | 250mOhm | - | 30MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
AISC-1008-R39G-TFIXED IND 390NH 470MA 1.12OHM SM Abracon LLC |
18,919 |
|
数据手册 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±2% | 470 mA | - | Unshielded | 1.12Ohm Max | 50 @ 100MHz | 480MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
ASMPH-0805-1R0M-TFIXED IND 1UH 1.3A 110 MOHM SMD Abracon LLC |
16,022 |
|
数据手册 |
ASMPH-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.3 A | 1.15A | Shielded | 110mOhm | - | 60MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
.jpg)
|

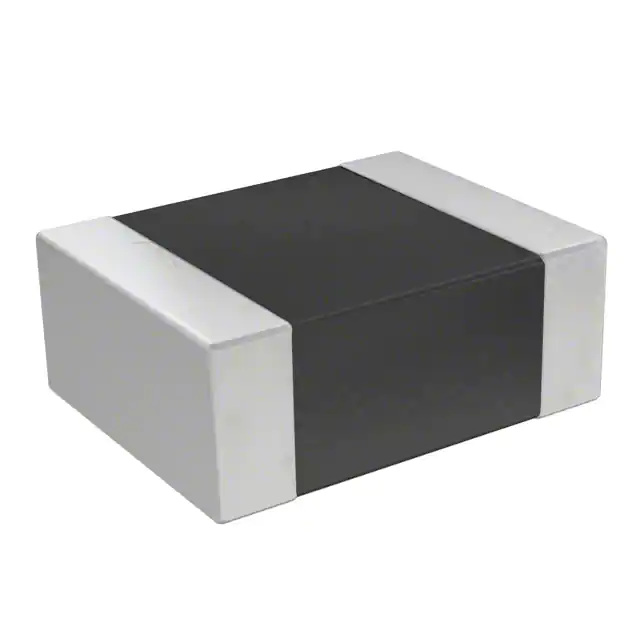

AIML-1008HC-4R7M-TFIXED IND 4.7UH 1.3A 120MOHM SMD Abracon LLC |
9,435 |
|
数据手册 |
AIML-1008HC | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 1.3 A | - | Shielded | 120mOhm | - | 20MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
AISC-1008-R62G-TFIXED IND 620NH 300MA 1.4OHM SMD Abracon LLC |
7,906 |
|
数据手册 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 620 nH | ±2% | 300 mA | - | Unshielded | 1.4Ohm Max | 45 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
ASMPH-0603-R47M-TFIXED IND 470NH 1.1A 150MOHM SMD Abracon LLC |
6,369 |
|
数据手册 |
ASMPH-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.1 A | 1.2A | Shielded | 150mOhm | - | 180MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
ASPI-2010-6R8M-TFIXED IND 6.8UH 580MA 816MOHM SM Abracon LLC |
5,750 |
|
数据手册 |
ASPI-2010 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 580 mA | 700mA | Shielded | 816mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
