固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

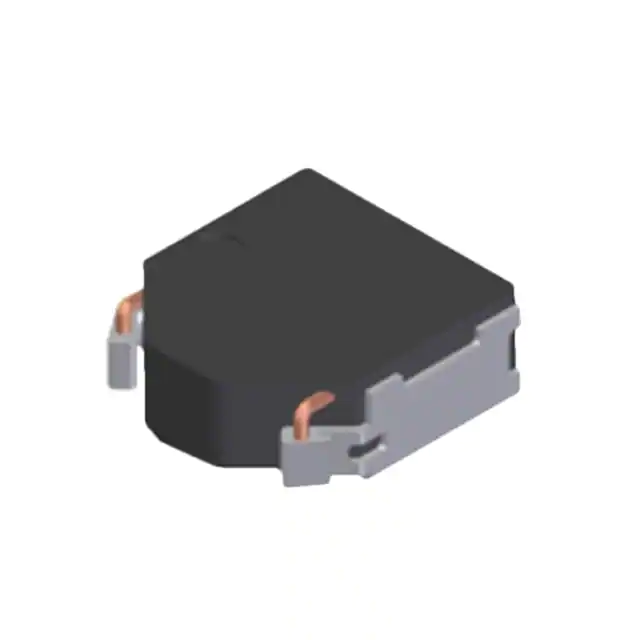

FDSD0420D-3R3M=P3FIXED IND 3.3UH 2.9A 71MOHM SMD Murata Electronics |
3,571 |
|
数据手册 |
FDS0420 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 3.3 µH | ±20% | 2.9 A | 4.9A | Shielded | 71mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420D-4R7M=P3FIXED IND 4.7UH 2.7A 83MOHM SMD Murata Electronics |
4,990 |
|
数据手册 |
FDS0420 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 4.7 µH | ±20% | 2.7 A | 4.6A | Shielded | 83mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420D-6R8M=P3FIXED IND 6.8UH 1.9A 150MOHM SMD Murata Electronics |
1,239 |
|
数据手册 |
FDS0420 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 6.8 µH | ±20% | 1.9 A | 3.6A | Shielded | 150mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420D-100M=P3FIXED IND 10UH 1.7A 200MOHM SMD Murata Electronics |
2,225 |
|
数据手册 |
FDS0420 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 10 µH | ±20% | 1.7 A | 3.3A | Shielded | 200mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
FDUE1260-H-R45N=P3FIXED IND 450NH 42A 0.58MOHM SMD Murata Electronics |
2,406 |
|
数据手册 |
FDUE1260 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 450 nH | ±30% | 42 A | 41.8A | Shielded | 0.58mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.563" L x 0.500" W (14.30mm x 12.70mm) | 0.236" (6.00mm) |
|
1267AY-6R8N=P3FIXED IND 6.8UH 4.5A 26.4MOHM SM Murata Electronics |
3,786 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.5 A | 4A | Shielded | 26.4mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
1234AS-H-150M=P3FIXED IND 15UH 1A 276 MOHM SMD Murata Electronics |
2,807 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1 A | 800mA | Shielded | 276mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
B1135AS-4R7N=P3FIXED IND 4.7UH 5.1A 21 MOHM SMD Murata Electronics |
1,679 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.1 A | 3.7A | Shielded | 21mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-6R8N=P3FIXED IND 6.8UH 4A 29 MOHM SMD Murata Electronics |
2,974 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4 A | 3.1A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-100M=P3FIXED IND 10UH 3.3A 45 MOHM SMD Murata Electronics |
4,834 |
|
数据手册 |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.3 A | 2.4A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
