固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBH10145C-221MA=P3FIXED IND 220UH 850MA 470MOHM SM Murata Electronics |
3,491 |
|
数据手册 |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 850 mA | 680mA | Shielded | 470mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
MBH10145C-330MA=P3FIXED IND 33UH 2.1A 82 MOHM SMD Murata Electronics |
4,668 |
|
数据手册 |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.1 A | 1.7A | Shielded | 82mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

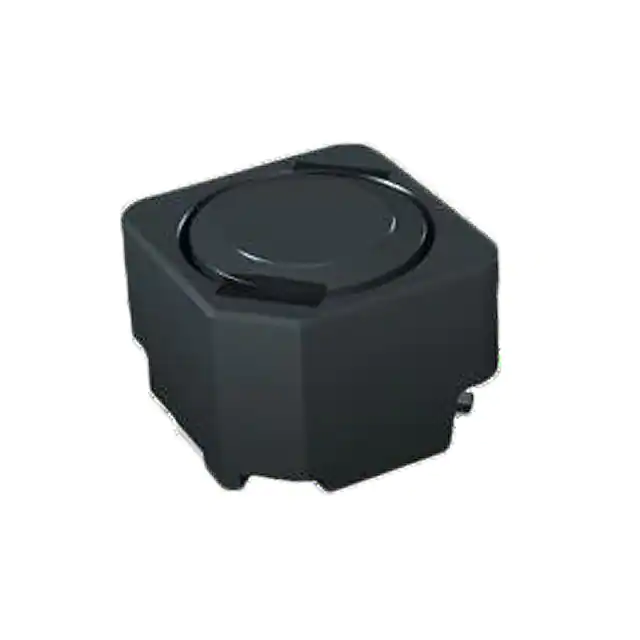

MBH12282C-100MA=P3FIXED IND 10UH 5.3A 21.6MOHM SMD Murata Electronics |
3,871 |
|
数据手册 |
MBH12282C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.3 A | 8.2A | Shielded | 21.6mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
MBH12282C-102MA=P3FIXED IND 1MH 590MA 1.26 OHM SMD Murata Electronics |
4,348 |
|
数据手册 |
MBH12282C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 590 mA | 810mA | Shielded | 1.26Ohm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|

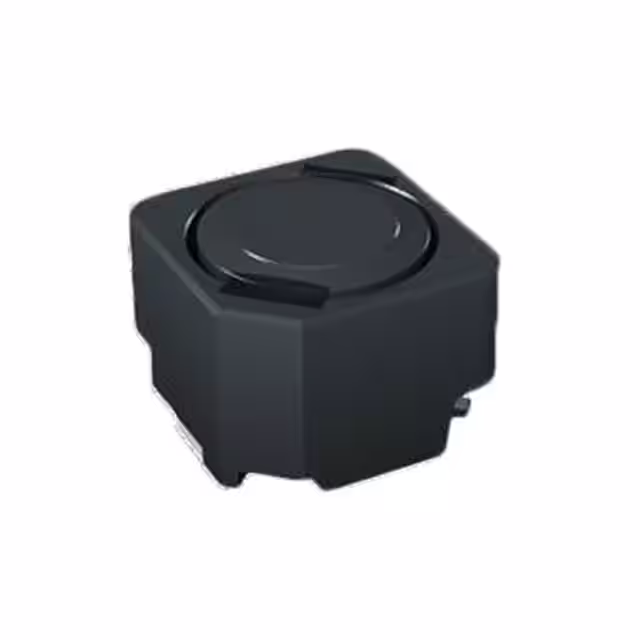

MBH12575C-100MA=P3FIXED IND 10UH 5.2A 19.2MOHM SMD Murata Electronics |
1,131 |
|
数据手册 |
MBH12575C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.2 A | 7A | Shielded | 19.2mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.309" (7.85mm) |
|
FDSD0420D-R33M=P3FIXED IND 330NH 7.7A 14MOHM SMD Murata Electronics |
3,608 |
|
数据手册 |
FDS0420 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 330 nH | ±20% | 7.7 A | 15A | Shielded | 14mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420D-R47M=P3FIXED IND 470NH 6.8A 18MOHM SMD Murata Electronics |
1,650 |
|
数据手册 |
FDS0420 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 470 nH | ±20% | 6.8 A | 12A | Shielded | 18mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420D-R68M=P3FIXED IND 680NH 6.5A 22MOHM SMD Murata Electronics |
4,426 |
|
数据手册 |
FDS0420 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 680 nH | ±20% | 6.5 A | 11A | Shielded | 22mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420D-1R5M=P3FIXED IND 1.5UH 4.3A 36MOHM SMD Murata Electronics |
4,180 |
|
数据手册 |
FDS0420 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1.5 µH | ±20% | 4.3 A | 7.7A | Shielded | 36mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420D-2R2M=P3FIXED IND 2.2UH 3.6A 47MOHM SMD Murata Electronics |
2,622 |
|
数据手册 |
FDS0420 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 2.2 µH | ±20% | 3.6 A | 5.5A | Shielded | 47mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
