固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1225AS-H-R68N=P2FIXED IND 680NH 2.9A 37MOHM SMD Murata Electronics |
4,631 |
|
数据手册 |
DEM2812C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 2.9 A | 2.7A | Shielded | 37mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|

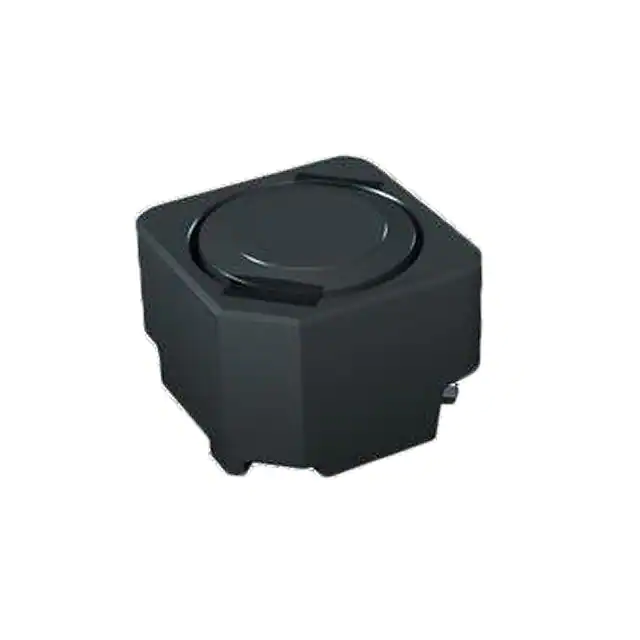

MBH6045C-100MA=P3FIXED IND 10UH 2A 75.6 MOHM SMD Murata Electronics |
4,419 |
|
数据手册 |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2 A | 3A | Shielded | 75.6mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-100MB=P3FIXED IND 10UH 2.5A 45.6MOHM SMD Murata Electronics |
4,356 |
|
数据手册 |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.5 A | 1.7A | Shielded | 45.6mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-101MB=P3FIXED IND 100UH 830MA 408MOHM SM Murata Electronics |
3,524 |
|
数据手册 |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 830 mA | 530mA | Shielded | 408mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-1R0ND=P3FIXED IND 1UH 4.4A 18.2MOHM SMD Murata Electronics |
3,551 |
|
数据手册 |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.4 A | 5.8A | Shielded | 18.2mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-1R5NA=P3FIXED IND 1.5UH 4.3A 22.1MOHM SM Murata Electronics |
2,183 |
|
数据手册 |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.3 A | 8.4A | Shielded | 22.1mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-1R5NB=P3FIXED IND 1.5UH 4.4A 19.5MOHM SM Murata Electronics |
3,262 |
|
数据手册 |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.4 A | 4.7A | Shielded | 19.5mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-220MA=P3FIXED IND 22UH 1.2A 166.8MOHM SM Murata Electronics |
4,763 |
|
数据手册 |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.2 A | 2A | Shielded | 166.8mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-220MB=P3FIXED IND 22UH 1.7A 93.6MOHM SMD Murata Electronics |
1,028 |
|
数据手册 |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.7 A | 1.2A | Shielded | 93.6mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
|
MBH6045C-330MB=P3FIXED IND 33UH 1.5A 123.5MOHM SM Murata Electronics |
1,850 |
|
数据手册 |
MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 930mA | Shielded | 123.5mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
