固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDH6045C-680MA=P3FIXED IND 68UH 800MA 220MOHM SMD Murata Electronics |
3,164 |
|
数据手册 |
MDH6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 800 mA | 720mA | Shielded | 220mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
1274AS-H-1R5N=P3FIXED IND 1.5UH 8.9A 7.7MOHM SMD Murata Electronics |
4,798 |
|
数据手册 |
DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.9 A | 15.3A | Shielded | 7.7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
LQH55DN1R5M03LFIXED IND 1.5UH 3.7A 30.8MOHM SM Murata Electronics |
3,814 |
|
数据手册 |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.7 A | - | Unshielded | 30.8mOhm Max | - | 110MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|

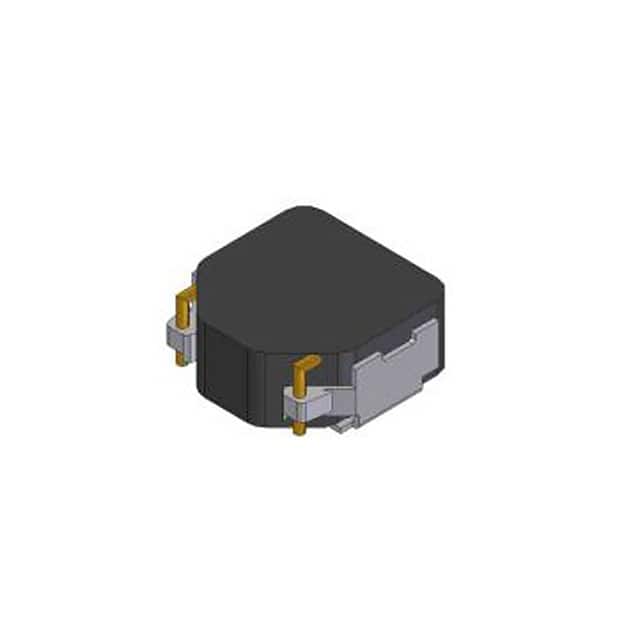

DFEH7030D-1R0M=P3FIXED IND 1UH 9.1A 9.9 MOHM SMD Murata Electronics |
1,441 |
|
数据手册 |
DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 1 µH | ±20% | 9.1 A | 12A | Shielded | 9.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEH7030D-1R5M=P3FIXED IND 1.5UH 7.6A 15MOHM SMD Murata Electronics |
1,136 |
|
数据手册 |
DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 1.5 µH | ±20% | 7.6 A | 9.7A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEH7030D-5R6M=P3FIXED IND 5.6UH 3.8A 54MOHM SMD Murata Electronics |
4,355 |
|
数据手册 |
DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 5.6 µH | ±20% | 3.8 A | 5.4A | Shielded | 54mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEH7030D-6R8M=P3FIXED IND 6.8UH 3.5A 59MOHM SMD Murata Electronics |
1,367 |
|
数据手册 |
DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 6.8 µH | ±20% | 3.5 A | 5.2A | Shielded | 59mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEH7030D-8R2M=P3FIXED IND 8.2UH 3.1A 78MOHM SMD Murata Electronics |
4,773 |
|
数据手册 |
DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 8.2 µH | ±20% | 3.1 A | 4.2A | Shielded | 78mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
MDH10060C-471MA=P3FIXED IND 470UH 560MA 750MOHM SM Murata Electronics |
4,596 |
|
数据手册 |
MDH10060C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 560 mA | 560mA | Shielded | 750mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-680MA=P3FIXED IND 68UH 1.7A 91 MOHM SMD Murata Electronics |
3,392 |
|
数据手册 |
MDH10060C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.7 A | 1.6A | Shielded | 91mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
