固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
#A914BYW-220M=P3FIXED IND 22UH 660MA 275MOHM SMD Murata Electronics |
3,247 |
|
数据手册 |
D52LC | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | - | 22 µH | ±20% | 660 mA | 560mA | Shielded | 275mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
#A914BYW-150M=P3FIXED IND 15UH 720MA 210MOHM SMD Murata Electronics |
2,956 |
|
数据手册 |
D52LC | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | - | 15 µH | ±20% | 720 mA | 630mA | Shielded | 210mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

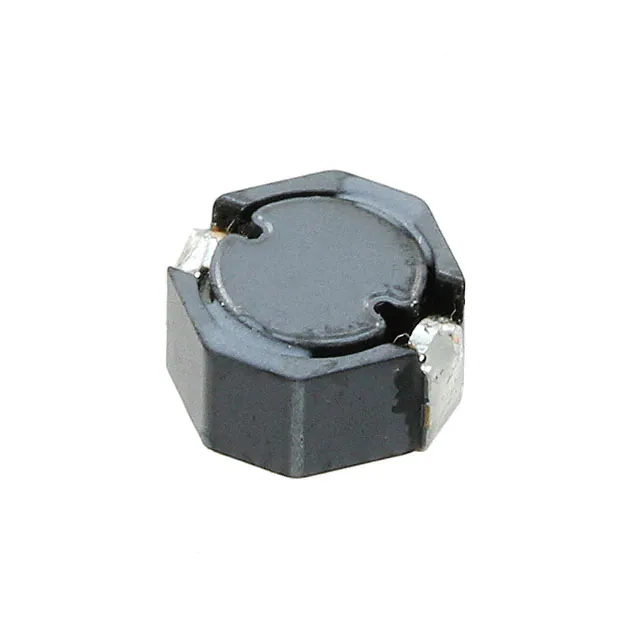

#A914BYW-100M=P3FIXED IND 10UH 930MA 150MOHM SMD Murata Electronics |
4,042 |
|
数据手册 |
D52LC | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 930 mA | 760mA | Shielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
#A914BYW-3R5M=P3EMC Murata Electronics |
2,340 |
|
数据手册 |
D52LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 3.5 µH | ±20% | 1.54 A | 1.34A | Shielded | 73mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
#A914BYW-560M=P3EMC Murata Electronics |
2,576 |
|
数据手册 |
D52LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 56 µH | ±20% | 370 mA | 330mA | Shielded | 828mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
#A914BY-101M=P3EMC Murata Electronics |
4,861 |
|
数据手册 |
D52LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 100 µH | ±20% | 260 mA | 230mA | Shielded | 1.5Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
#A914BYW-680M=P3EMC Murata Electronics |
3,575 |
|
数据手册 |
D52LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 68 µH | ±20% | 350 mA | 300mA | Shielded | 935mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
#A914BYW-2R2M=P3EMC Murata Electronics |
2,295 |
|
数据手册 |
D52LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 2.2 µH | ±20% | 1.74 A | 1.63A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
#A914BYW-470M=P3EMC Murata Electronics |
3,751 |
|
数据手册 |
D52LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 380 mA | 360mA | Shielded | 730mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
#A914BYW-1R2M=P3EMC Murata Electronics |
2,868 |
|
数据手册 |
D52LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1.2 µH | ±20% | 2.44 A | 2.15A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
