固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

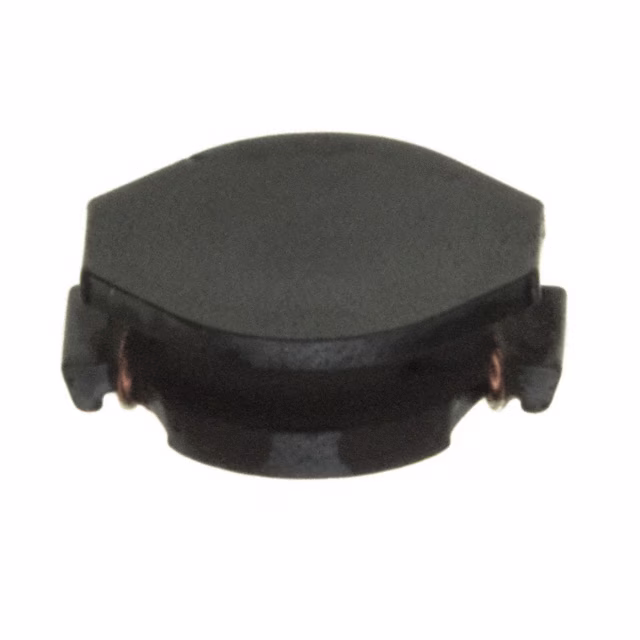

LQH55PN2R7NR0LFIXED IND 2.7UH 2.15A 40 MOHM Murata Electronics |
4,832 |
|
数据手册 |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 2.7 µH | ±30% | 2.15 A | 2.07A | Shielded | 40mOhm | - | 50MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN3R3NR0LFIXED IND 3.3UH 2A 44 MOHM SMD Murata Electronics |
2,184 |
|
数据手册 |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 2 A | 2A | Shielded | 44mOhm | - | 35MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN4R7NR0LFIXED IND 4.7UH 1.75A 60 MOHM Murata Electronics |
3,425 |
|
数据手册 |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.75 A | 1.4A | Shielded | 60mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN6R8NR0LFIXED IND 6.8UH 1.45A 87 MOHM Murata Electronics |
1,575 |
|
数据手册 |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 1.45 A | 1.2A | Shielded | 87mOhm | - | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN100MR0LFIXED IND 10UH 1.25A 110 MOHM Murata Electronics |
4,598 |
|
数据手册 |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 10 µH | ±20% | 1.25 A | 1A | Shielded | 110mOhm | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN220MR0LFIXED IND 22UH 850MA 260 MOHM Murata Electronics |
1,268 |
|
数据手册 |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 22 µH | ±20% | 850 mA | 670mA | Shielded | 260mOhm | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
LQH6PPN1R0N43LFIXED IND 1UH 4.3A 9 MOHM SMD Murata Electronics |
3,547 |
|
数据手册 |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 4.3 A | 7.5A | Shielded | 9mOhm | - | 110MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN2R2N43LFIXED IND 2.2UH 4.1A 14 MOHM SMD Murata Electronics |
4,931 |
|
数据手册 |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 4.1 A | 5.6A | Shielded | 14mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

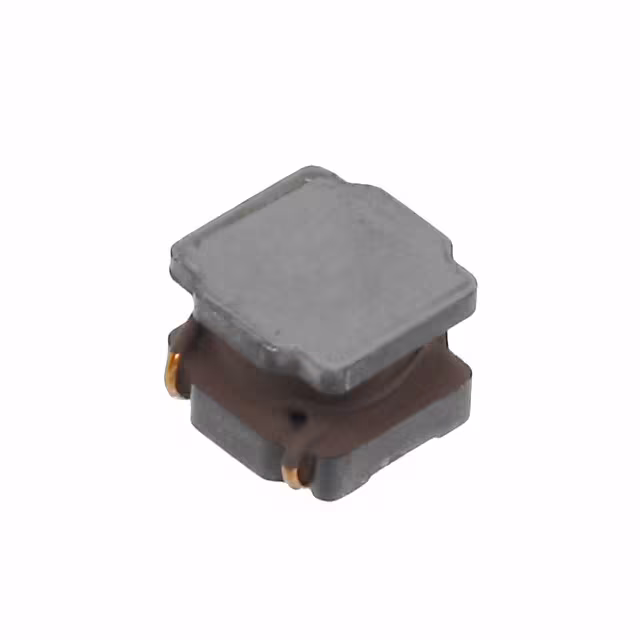

LQH6PPN3R3N43LFIXED IND 3.3UH 3.8A 16 MOHM SMD Murata Electronics |
1,013 |
|
数据手册 |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 3.8 A | 4.5A | Shielded | 16mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LQH6PPN4R7M43LFIXED IND 4.7UH 3.2A 20 MOHM SMD Murata Electronics |
1,275 |
|
数据手册 |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 3.2 A | 4A | Shielded | 20mOhm | - | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
