上传BOM单
固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH150T-2.74-24FIXED IND 24UH 2.74A 70 MOHM TH Amgis, LLC |
1,821 |
|
数据手册 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 24 µH | ±20% | 2.74 A | - | Unshielded | 70mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|

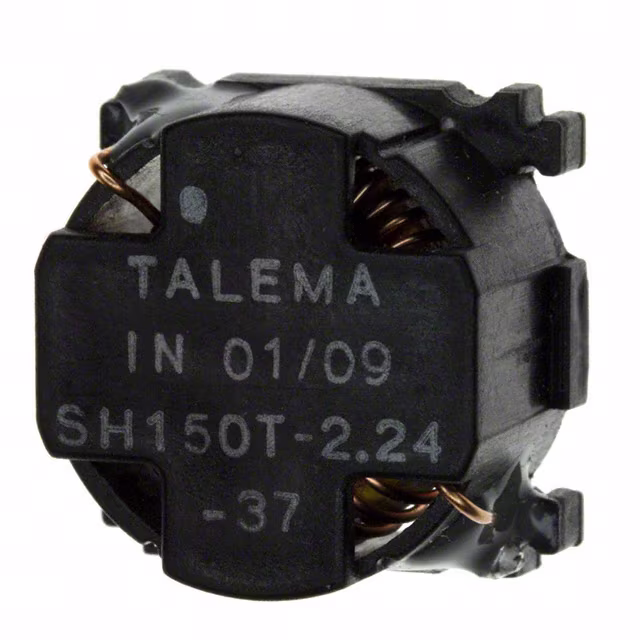

SH150T-2.24-37FIXED IND 37UH 2.24A 100 MOHM TH Amgis, LLC |
2,120 |
|
数据手册 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 37 µH | ±20% | 2.24 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
SH150T-3.00-17FIXED IND 17UH 3A 50 MOHM TH Amgis, LLC |
4,140 |
|
数据手册 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 17 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
SWF-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH Amgis, LLC |
4,629 |
|
数据手册 |
SW | Radial, Vertical Cylinder | Bulk | Obsolete | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
SWV-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH Amgis, LLC |
1,617 |
|
数据手册 |
SW | Radial, Vertical | Bulk | Obsolete | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.709" (18.00mm) |
|
SH50C-5.0-36FIXED IND 36UH 5A 20 MOHM TH Amgis, LLC |
1,201 |
|
数据手册 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 36 µH | ±20% | 5 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
SH50V-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH Amgis, LLC |
4,156 |
|
数据手册 |
SH50 | Radial, Vertical | Tray | Active | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.709" (18.00mm) |
|
|
SH260T-5.0-15FIXED IND 15UH 5A 27 MOHM TH Amgis, LLC |
4,175 |
|
数据手册 |
SH260 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 15 µH | ±20% | 5 A | - | Unshielded | 27mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.409" (10.40mm) |
|
SWS-0.38-118FIXED IND 118UH 380MA 1.2OHM SMD Amgis, LLC |
3,872 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 118 µH | ±20% | 380 mA | - | Unshielded | 1.2Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.266" (6.75mm) |
|
|
SWS-0.46-78FIXED IND 78UH 460MA 800MOHM SMD Amgis, LLC |
3,585 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 78 µH | ±20% | 460 mA | - | Unshielded | 800mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.266" (6.75mm) |
