固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWT-1.26-112FIXED IND 112UH 1.26A 300MOHM TH Amgis, LLC |
2,505 |
|
数据手册 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 112 µH | ±20% | 1.26 A | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.346" (8.80mm) |
|
SWS-0.85-680FIXED IND 680UH 850MA 1.25OHM SM Amgis, LLC |
2,847 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 680 µH | ±20% | 850 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 20 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.435" (11.05mm) |
|
|
SWT-0.83-248FIXED IND 248UH 830MA 600MOHM TH Amgis, LLC |
4,390 |
|
数据手册 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 248 µH | ±20% | 830 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.346" (8.80mm) |
|
|
SWT-1.02-168FIXED IND 168UH 1.02A 400MOHM TH Amgis, LLC |
1,290 |
|
数据手册 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 168 µH | ±20% | 1.02 A | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.346" (8.80mm) |
|
SWC-5.0-10FIXED IND 10UH 5A 25 MOHM TH Amgis, LLC |
4,283 |
|
数据手册 |
SW260 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 10 µH | ±20% | 5 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|

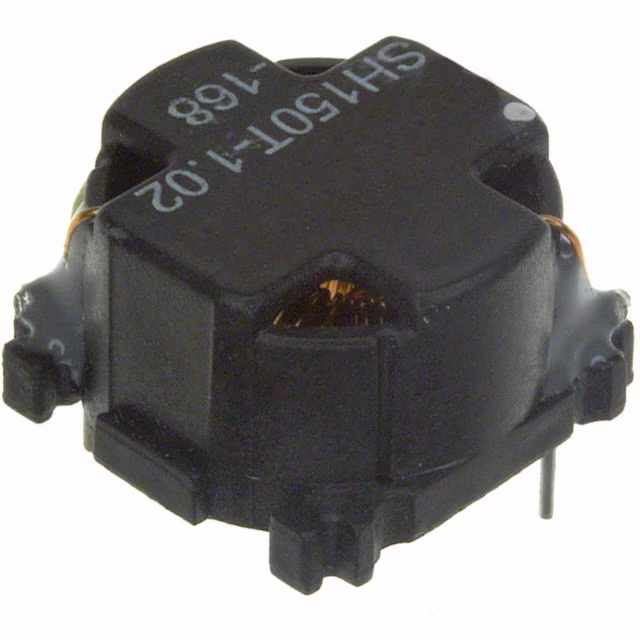

SH150T-1.02-168FIXED IND 168UH 1.02A 400MOHM TH Amgis, LLC |
4,544 |
|
数据手册 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 168 µH | ±20% | 1.02 A | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
SH260C-5.0-10FIXED IND 10UH 5A 25 MOHM TH Amgis, LLC |
4,873 |
|
数据手册 |
SH260 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 10 µH | ±20% | 5 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|
|
SH260T-5.0-10FIXED IND 11UH 5A 25 MOHM TH Amgis, LLC |
4,358 |
|
数据手册 |
SH260 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 11 µH | ±20% | 5 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.409" (10.40mm) |
|
|
SWT-0.68-377FIXED IND 377UH 680MA 1 OHM TH Amgis, LLC |
1,206 |
|
数据手册 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 377 µH | ±20% | 680 mA | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.346" (8.80mm) |
|
SWT-1.48-26FIXED IND 26UH 1.48A 100 MOHM TH Amgis, LLC |
4,667 |
|
数据手册 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 26 µH | ±20% | 1.48 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.307" (7.80mm) |
