固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBCP-14HY221BFIXED IND 220UH 1.05A 310MOHM TH KEMET |
345 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.05 A | 2.2A | Unshielded | 310mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SBC7-472-281FIXED IND 4.7MH 280MA 4.83OHM TH KEMET |
149 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 280 mA | 530mA | Unshielded | 4.83Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.689" (17.50mm) |
|
SBCP-80HY103HBFIXED IND 10MH 100MA 19.1 OHM TH KEMET |
105 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 100 mA | 150mA | Unshielded | 19.1Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
SBCP-80HY470HFIXED IND 47UH 1.9A 130 MOHM TH KEMET |
2,042 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.9 A | 2.2A | Unshielded | 130mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
MPLC1040L2R2FIXED IND 2.2UH 10.5A 10MOHM SMD KEMET |
1,937 |
|
数据手册 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 10.5 A | 11A | Shielded | 10mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

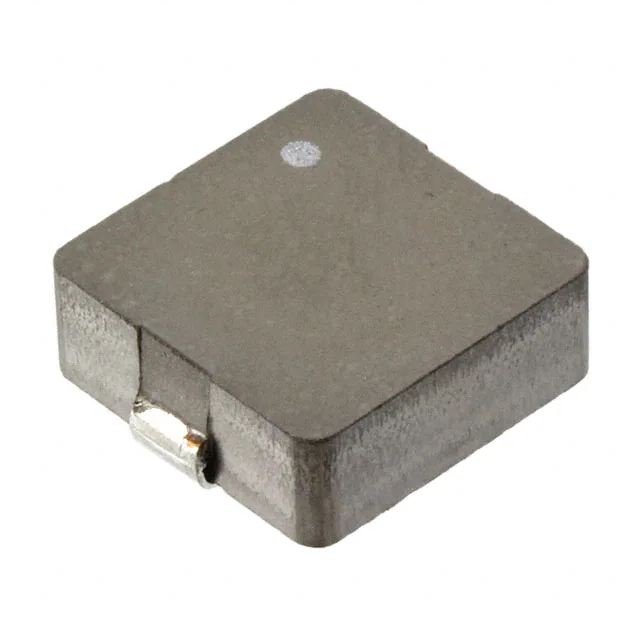

MPC1250LR50CFIXED IND 500NH 35A 0.8 MOHM SMD KEMET |
4,501 |
|
数据手册 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 500 nH | ±20% | 35 A | 40A | Shielded | 0.8mOhm | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SBC7-332-361FIXED IND 3.3MH 360MA 3.51OHM TH KEMET |
1,000 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 360 mA | 630mA | Unshielded | 3.51Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|

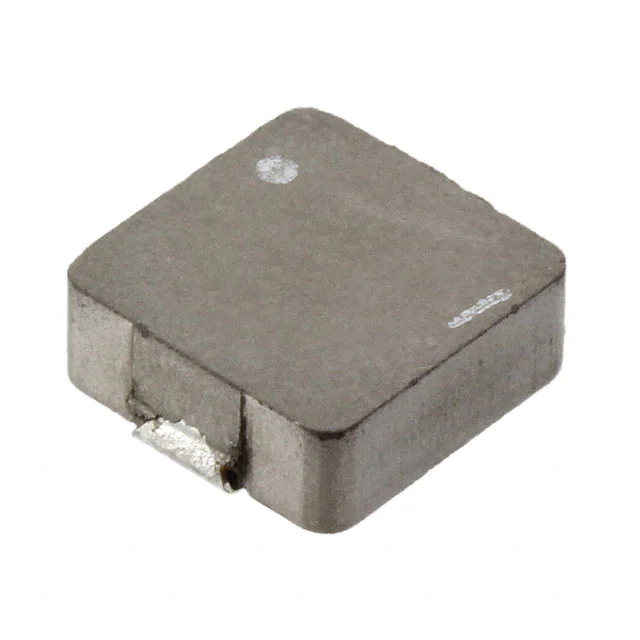

MPC1040LR45CFIXED IND 450NH 25A 1.1 MOHM SMD KEMET |
823 |
|
数据手册 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 450 nH | ±20% | 25 A | 27A | Shielded | 1.1mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SBCP-80HY121HFIXED IND 120UH 1.1A 350 MOHM TH KEMET |
395 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 1.1 A | 1.4A | Unshielded | 350mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
SBCP-14HY101BFIXED IND 100UH 1.5A 140 MOHM TH KEMET |
236 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.5 A | 3.1A | Unshielded | 140mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
