固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

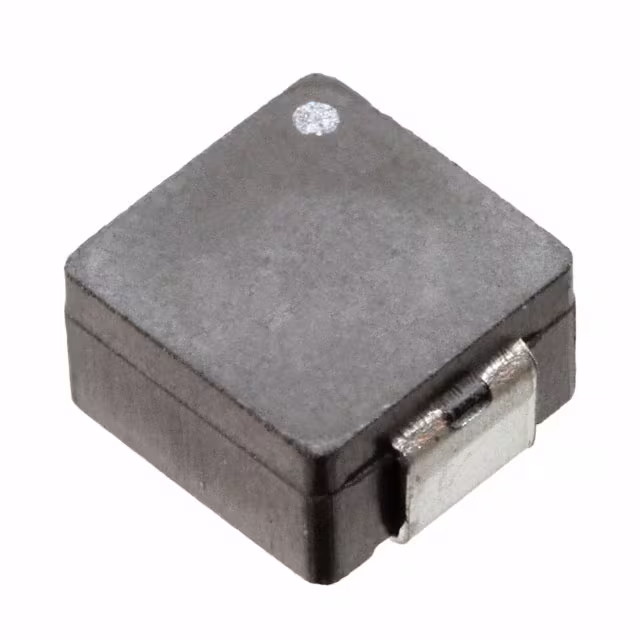

MPLCH0740L4R7FIXED IND 4.7UH 5.8A 33 MOHM SMD KEMET |
2,057 |
|
数据手册 |
MPLCH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 5.8 A | 6.5A | Shielded | 33mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.157" (4.00mm) |
|
MPLC0730L2R2FIXED IND 2.2UH 7.3A 19 MOHM SMD KEMET |
1,704 |
|
数据手册 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 7.3 A | 8.2A | Shielded | 19mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
|

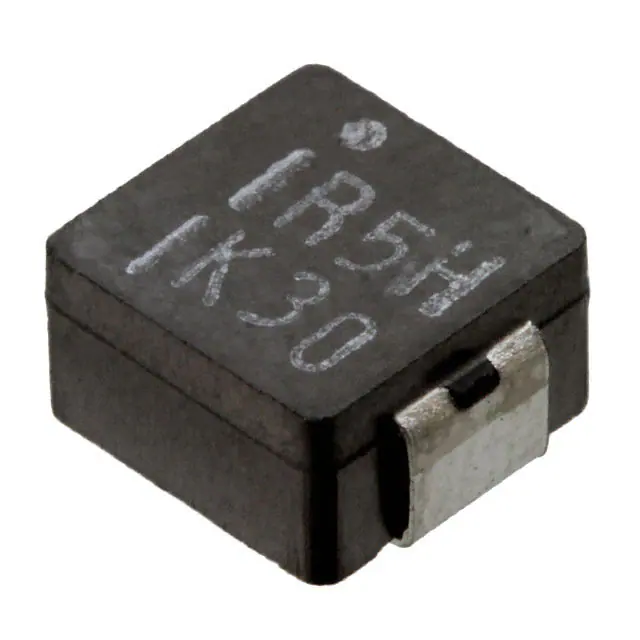

MPLCH0740L1R5FIXED IND 1.5UH 11.1A 9 MOHM SMD KEMET |
1,470 |
|
数据手册 |
MPLCH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 11.1 A | 10.8A | Shielded | 9mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.157" (4.00mm) |
|
MPXV1D0650L1R0FIXED IND 1UH 15.6A 6 MOHM SMD KEMET |
3,072 |
|
数据手册 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 15.6 A | 13A | Shielded | 6mOhm Max | - | 42MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
SBCP-87HY4R7HFIXED IND 4.7UH 3.2A 30 MOHM TH KEMET |
2,464 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.2 A | 4.3A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
|
MPXV1D0650L1R5FIXED IND 1.5UH 13.2A 8.3MOHM SM KEMET |
1,922 |
|
数据手册 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 13.2 A | 12A | Shielded | 8.3mOhm Max | - | 35MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D0650L6R8FIXED IND 6.8UH 5.7A 44.2MOHM SM KEMET |
635 |
|
数据手册 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 5.7 A | 5.5A | Shielded | 44.2mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
MPX1D1040L330FIXED IND 33UH 3.7A 119.7MOHM SM KEMET |
294 |
|
数据手册 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 3.7 A | 5A | Shielded | 119.7mOhm Max | - | 5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|

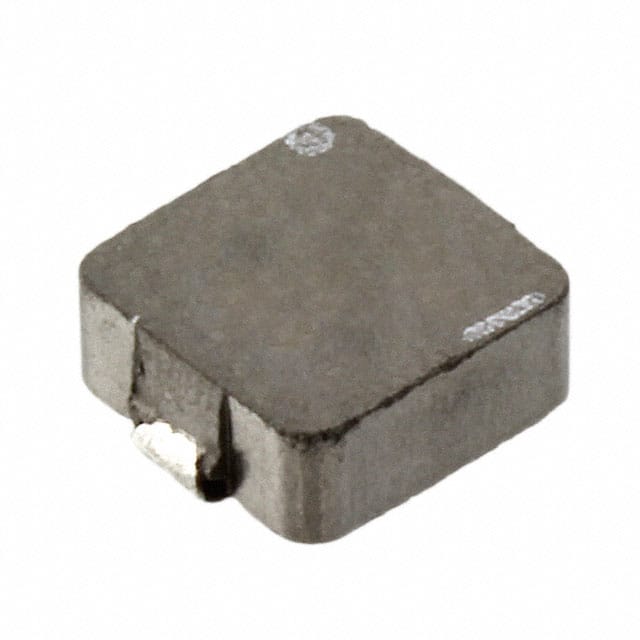

MPC0730LR20CFIXED IND 200NH 23A 1.2 MOHM SMD KEMET |
4,571 |
|
数据手册 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±25% | 23 A | 17.5A | Shielded | 1.2mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|
|
SBCP-87HY330HFIXED IND 33UH 1.5A 120 MOHM TH KEMET |
1,993 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.5A | Unshielded | 120mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
