固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D1264LR22FIXED IND 220NH 53A 1.1MOHM SMD KEMET |
2,381 |
|
数据手册 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 53 A | 100A | Shielded | 1.1mOhm Max | - | 90MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|

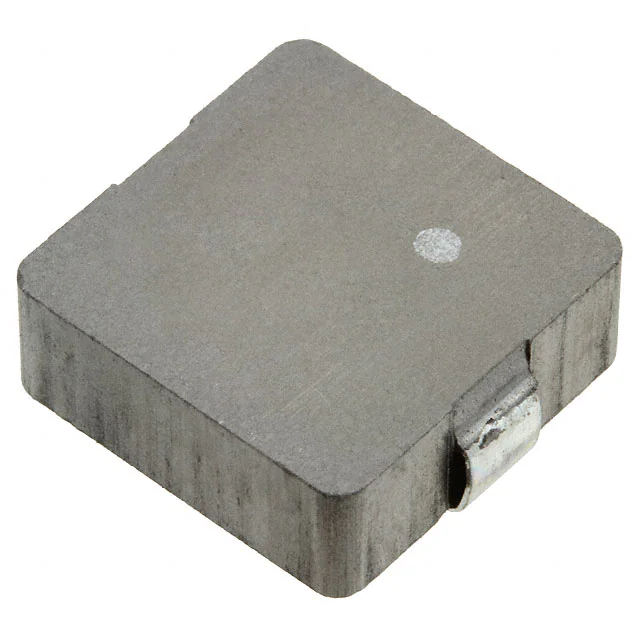

MPCH1250L1R5FIXED IND 1.5UH 21A 2.2 MOHM SMD KEMET |
3,120 |
|
数据手册 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 21 A | 21A | Shielded | 2.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.563" L x 0.492" W (14.30mm x 12.50mm) | 0.197" (5.00mm) |
|
SHBC10-0R8A0107VCMC 107UH 3A 2LN TH KEMET |
2,285 |
|
数据手册 |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 107 µH | ±20% | 3 A | - | Unshielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
SHBC14-1R2A0067VCMC 67UH 8A 2LN TH KEMET |
1,323 |
|
数据手册 |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 67 µH | ±20% | 8 A | - | Unshielded | 22.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.319" Dia (33.50mm) | 1.319" (33.50mm) |
|
SNG-25DB-086FIXED IND 86UH 20 MOHM CHAS MNT KEMET |
3,110 |
|
数据手册 |
SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 86 µH | -30%, +50% | - | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | Chassis Mount | - | 1.929" L x 0.945" W (49.00mm x 24.00mm) | 1.535" (39.00mm) |
|
|
MPXV1D1770L330FIXED IND 33UH 7.5A 47.3MOHM SMD KEMET |
1,405 |
|
数据手册 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 7.5 A | 12A | Shielded | 47.3mOhm Max | - | 3.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
SHBC20-1R7A0097VCMC 97UH 12A 2LN TH KEMET |
2,711 |
|
数据手册 |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 97 µH | ±20% | 12 A | - | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.622" Dia (41.20mm) | 1.622" (41.20mm) |
|
|
SNG-19B-080FIXED IND 80UH 10 MOHM CHAS MNT KEMET |
4,878 |
|
数据手册 |
SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 80 µH | -30%, +50% | - | - | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | Chassis Mount | - | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.181" (30.00mm) |
|
|
SNG-25DA-086FIXED INDUCTOR 86UH 20 MOHM KEMET |
4,452 |
|
数据手册 |
SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 86 µH | -30%, +50% | - | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | User Defined | - | 1.535" Dia (39.00mm) | 0.945" (24.00mm) |
|
|
SNG-19A-080FIXED INDUCTOR 80UH 10 MOHM KEMET |
3,260 |
|
数据手册 |
SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 80 µH | -30%, +50% | - | - | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | User Defined | - | 1.181" Dia (30.00mm) | 0.787" (20.00mm) |
