固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBCP-87HY220HFIXED IND 22UH 1.9A 80 MOHM TH KEMET |
2,556 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 1.8A | Unshielded | 80mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
|
SBCP-87HY1R0HFIXED IND 1UH 4.5A 20 MOHM TH KEMET |
4,513 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.5 A | 10.2A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
|
SBCP-87HY151HFIXED IND 150UH 790MA 390MOHM TH KEMET |
1,899 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 790 mA | 700mA | Unshielded | 390mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
|
SBCP-87HY100HFIXED IND 10UH 2.3A 50 MOHM TH KEMET |
2,955 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.3 A | 2.4A | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
|
SBCP-80HY331HFIXED IND 330UH 700MA 750MOHM TH KEMET |
3,158 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 700 mA | 850mA | Unshielded | 750mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY820HFIXED IND 82UH 1.3A 240 MOHM TH KEMET |
2,917 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1.3 A | 1.7A | Unshielded | 240mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY221HFIXED IND 220UH 900MA 520MOHM TH KEMET |
4,113 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 900 mA | 1A | Unshielded | 520mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
SHBC8S-0R6A0043VCMC 43UH 2A 2LN TH KEMET |
2,438 |
|
数据手册 |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 43 µH | ±20% | 2 A | - | Unshielded | 54.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.669" Dia (17.00mm) | 0.669" (17.00mm) |
|
SBC7-682-211FIXED IND 6.8MH 210MA 7 OHM TH KEMET |
1,523 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 210 mA | 440mA | Unshielded | 7Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.689" (17.50mm) |
|

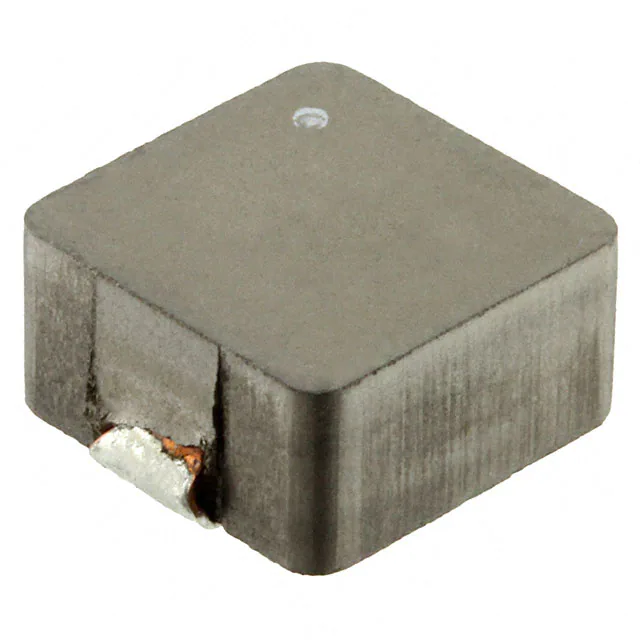

MPC1055L1R0CFIXED IND 1UH 18.5A 2.3 MOHM SMD KEMET |
3,209 |
|
数据手册 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 1 µH | ±20% | 18.5 A | 21A | Shielded | 2.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.461" L x 0.394" W (11.70mm x 10.00mm) | 0.217" (5.50mm) |
