固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

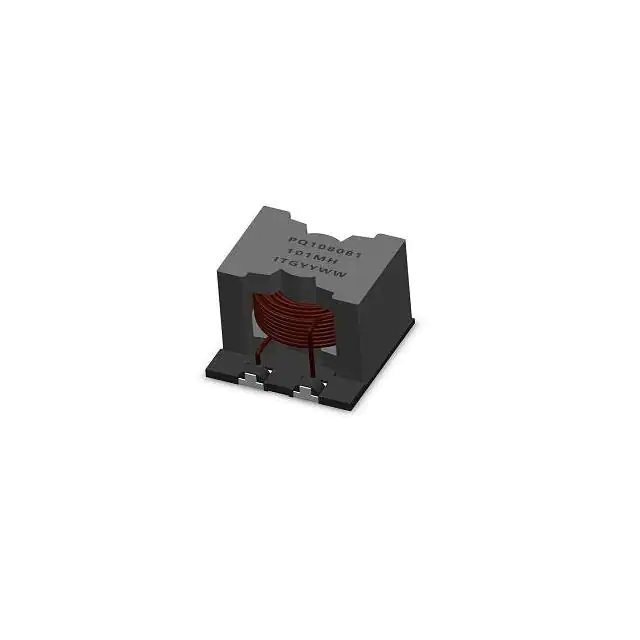

PQ108081H-102MHF1000.00UH, 20%, 206.00MOHM, 3.10 ITG Electronics, Inc. |
4,711 |
|
数据手册 |
PQ108081H | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 3.9 A | 2.95A | - | 206mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081H-221MHF220.00UH, 20%, 54.50MOHM, 6.60A ITG Electronics, Inc. |
3,914 |
|
数据手册 |
PQ108081H | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 7.6 A | 6.35A | - | 54.5mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081H-681MHF680.00UH, 20%, 150.30MOHM, 3.75A ITG Electronics, Inc. |
4,436 |
|
数据手册 |
PQ108081H | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 4.6 A | 3.55A | - | 150.3mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
L201203-102MHFFIXED IND 1.17MH 7A 73 MOHM TH ITG Electronics, Inc. |
1,836 |
|
数据手册 |
L201203 | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Alloy Powder | 1.17 mH | ±20% | 7 A | 1.8A | Unshielded | 73mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.732" L x 0.811" W (44.00mm x 20.60mm) | 1.807" (45.90mm) |
|
L301314A-151LHF150uH, 43mOhm, 2.6A Max. Toroida ITG Electronics, Inc. |
4,379 |
|
数据手册 |
L301314A | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 150 µH | ±15% | 6 A | 2.6A | Unshielded | 43mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.102" L x 1.012" W (28.00mm x 25.70mm) | 0.630" (16.00mm) |
|
|
L301314A-690LHF69.63uH, 18.5mOhm, 3.8A Max. DI ITG Electronics, Inc. |
4,291 |
|
数据手册 |
L301314A | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 69.63 µH | ±15% | 9.5 A | 3.8A | Unshielded | 18.5mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.142" L x 1.012" W (29.00mm x 25.70mm) | 0.650" (16.50mm) |
|
|
L301314A-101LHF100uH, 26mOhm, 3.2A Max. DIP To ITG Electronics, Inc. |
3,321 |
|
数据手册 |
L301314A | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 100 µH | ±15% | 8 A | 3.2A | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.142" L x 1.012" W (29.00mm x 25.70mm) | 0.650" (16.50mm) |
|
|
L301314A-301LHF300uH, 170mOhm, 1.8A Max. Toroid ITG Electronics, Inc. |
2,731 |
|
数据手册 |
L301314A | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 300 µH | ±15% | 2.9 A | 1.8A | Unshielded | 170mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.063" L x 1.012" W (27.00mm x 25.70mm) | 0.571" (14.50mm) |
|
|
L301314A-251LHF250uH, 112mOhm, 2A Max. Toroida ITG Electronics, Inc. |
2,693 |
|
数据手册 |
L301314A | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 250 µH | ±15% | 3.6 A | 2A | Unshielded | 112mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.063" L x 1.012" W (27.00mm x 25.70mm) | 0.571" (14.50mm) |
|
L101374SP-26RESONANT INDUCTOR 33UH 20.5A 6M ITG Electronics, Inc. |
3,734 |
|
数据手册 |
L101374SP | Radial, Vertical | Bulk | Active | Wirewound | - | 33 µH | ±10% | 28 A | 16.5A | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.319" L x 1.201" W (33.50mm x 30.50mm) | 1.102" (28.00mm) |
