固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLM40327A-R22MHF-CT0.22uH, 20%, 0.85mOhm, 70Amp Max ITG Electronics, Inc. |
1,570 |
|
数据手册 |
SLM40327 | Nonstandard | Strip | Active | Molded | Ferrite | 220 nH | ±20% | 30 A | 70A | Unshielded | 0.85mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.315" (8.00mm) |
|
|
SLM40327A-R18KHF-CT0.18uH, 20%, 0.85mOhm, 85Amp Max ITG Electronics, Inc. |
2,476 |
|
数据手册 |
SLM40327 | Nonstandard | Strip | Active | Molded | Ferrite | 180 nH | ±20% | 30 A | 85A | Unshielded | 0.85mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.315" (8.00mm) |
|
|
SLM40327A-R36KHF-CT0.22uH, 20%, 0.85mOhm, 70Amp Max ITG Electronics, Inc. |
2,672 |
|
数据手册 |
SLM40327 | Nonstandard | Strip | Active | Molded | Ferrite | 360 nH | ±20% | 30 A | 43A | Unshielded | 0.85mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.315" (8.00mm) |
|
|
SLM534214A-1R5MHF-CT1.5uH, 20%, 0.42mOhm, 25Amp Max. ITG Electronics, Inc. |
4,563 |
|
数据手册 |
SLM534214 | Nonstandard | Strip | Active | Molded | Ferrite | 1.5 µH | ±20% | 44 A | 25A | Unshielded | 0.42mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.531" W (14.50mm x 13.50mm) | 0.421" (10.70mm) |
|
|
SLM534214A-R62MHF-CT0.625uH, 20%, 0.42mOhm, 62Amp Ma ITG Electronics, Inc. |
2,485 |
|
数据手册 |
SLM534214 | Nonstandard | Strip | Active | Molded | Ferrite | 625 nH | ±20% | 44 A | 62A | Unshielded | 0.42mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.531" W (14.50mm x 13.50mm) | 0.421" (10.70mm) |
|
|
SLM534214A-1R0MHF-CT1uH, 20%, 0.42mOhm, 40Amp Max. S ITG Electronics, Inc. |
2,728 |
|
数据手册 |
SLM534214 | Nonstandard | Strip | Active | Molded | Ferrite | 1 µH | ±20% | 44 A | 40A | Unshielded | 0.42mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.531" W (14.50mm x 13.50mm) | 0.421" (10.70mm) |
|

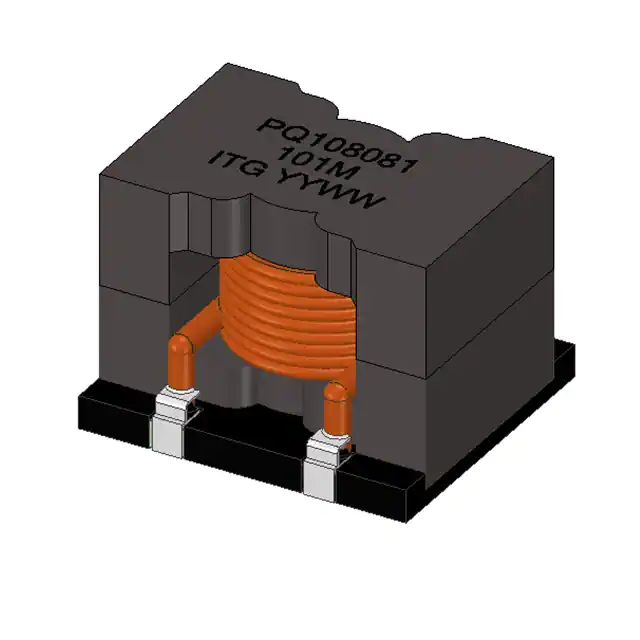

PQ108081-561MHFFIXED IND 560UH 4A 95 MOHM SMD ITG Electronics, Inc. |
2,548 |
|
数据手册 |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 560 µH | ±20% | 4 A | - | Shielded | 95mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-620MHFFIXED IND 62UH 12A 15 MOHM SMD ITG Electronics, Inc. |
3,947 |
|
数据手册 |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 62 µH | ±20% | 12 A | - | Shielded | 15mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-120MHFFIXED IND 12UH 26.8A 3.2MOHM SMD ITG Electronics, Inc. |
3,092 |
|
数据手册 |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 12 µH | ±20% | 26.8 A | - | Shielded | 3.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-560MHFFIXED IND 56UH 12A 15 MOHM SMD ITG Electronics, Inc. |
2,619 |
|
数据手册 |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 56 µH | ±20% | 12 A | - | Shielded | 15mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
