场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDMS86180MOSFET N-CH 100V 151A POWER56 |
1,967 |
|
数据手册 |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 151A (Tc) | 6V, 10V | 3.2mOhm @ 67A, 10V | 4V @ 370µA | 54 nC @ 6 V | ±20V | 6215 pF @ 50 V | - | 138W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|
STF28NM50NMOSFET N-CH 500V 21A TO220FP |
1,571 |
|
数据手册 |
MDmesh™ II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 21A (Tc) | 10V | 158mOhm @ 10.5A, 10V | 4V @ 250µA | 50 nC @ 10 V | ±25V | 1735 pF @ 25 V | - | 35W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
RJ1P12BBDTLLMOSFET N-CH 100V 120A LPTL |
848 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 6V, 10V | 5.8mOhm @ 50A, 10V | 4V @ 2.5mA | 80 nC @ 10 V | ±20V | 4170 pF @ 50 V | - | 178W (Tc) | 150°C (TJ) | - | - | Surface Mount | LPTL |
|
TK099V65Z,LQMOSFET N-CH 650V 30A 5DFN |
12,407 |
|
数据手册 |
DTMOSVI | 4-VSFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Ta) | 10V | 99mOhm @ 15A, 10V | 4V @ 1.27mA | 47 nC @ 10 V | ±30V | 2780 pF @ 300 V | - | 230W (Tc) | 150°C | - | - | Surface Mount | 5-DFN (8x8) |
|
IPP023NE7N3GXKSA1MOSFET N-CH 75V 120A TO220-3 |
760 |
|
数据手册 |
OptiMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 2.3mOhm @ 100A, 10V | 3.8V @ 273µA | 206 nC @ 10 V | ±20V | 14400 pF @ 37.5 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
|
NTP082N65S3HFMOSFET N-CH 650V 40A TO220-3 |
239 |
|
数据手册 |
FRFET®, SuperFET® III | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 40A (Tc) | - | 82mOhm @ 20A, 10V | 5V @ 4mA | 81 nC @ 10 V | ±30V | 3410 pF @ 400 V | - | 313W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IPA60R099P6XKSA1MOSFET N-CH 600V 37.9A TO220-FP |
318 |
|
数据手册 |
CoolMOS™ P6 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 37.9A (Tc) | 10V | 99mOhm @ 14.5A, 10V | 4.5V @ 1.21mA | 70 nC @ 10 V | ±20V | 3330 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
NP100P04PLG-E1-AYMOSFET P-CH 40V 100A TO263 |
2,300 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 4.5V, 10V | 3.7mOhm @ 50A, 10V | 2.5V @ 1mA | 320 nC @ 10 V | ±20V | 15100 pF @ 10 V | - | 1.8W (Ta), 200W (Tc) | 175°C (TJ) | - | - | Surface Mount | TO-263 |
|
R6520ENXC7G650V 20A TO-220FM, LOW-NOISE POW |
958 |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 205mOhm @ 9.5A, 10V | 4V @ 630µA | 61 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 68W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
IRLP3034PBFMOSFET N-CH 40V 195A TO247AC |
444 |
|
数据手册 |
HEXFET® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 4.5V, 10V | 1.7mOhm @ 195A, 10V | 2.5V @ 250µA | 162 nC @ 4.5 V | ±20V | 10315 pF @ 25 V | - | 341W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AC |
|
STB15N80K5MOSFET N CH 800V 14A D2PAK |
1,024 |
|
数据手册 |
SuperMESH5™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 375mOhm @ 7A, 10V | 5V @ 100µA | 32 nC @ 10 V | ±30V | 1100 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|

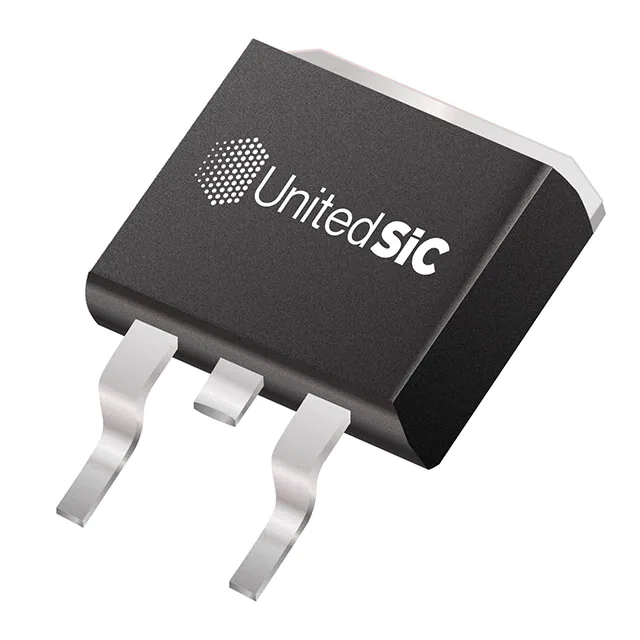

UF3C065080B3MOSFET N-CH 650V 25A TO263 |
12,452 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | - | 650 V | 25A (Tc) | - | - | - | - | ±25V | - | - | - | - | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
UJ3C065080B3MOSFET N-CH 650V 25A TO263 |
5,892 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | - | 650 V | 25A (Tc) | 12V | 111mOhm @ 20A, 12V | 6V @ 10mA | 51 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
NTP082N65S3FMOSFET N-CH 650V 40A TO220-3 |
460 |
|
数据手册 |
FRFET®, SuperFET® II | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 40A (Tc) | 10V | 82mOhm @ 20A, 10V | 5V @ 4mA | 81 nC @ 10 V | ±30V | 3410 pF @ 400 V | - | 313W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
AOTF42S60LMOSFET N-CH 600V 39A TO220-3F |
1,910 |
|
数据手册 |
aMOS™ | TO-220-3 Full Pack | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 39A (Tc) | 10V | 99mOhm @ 21A, 10V | 3.8V @ 250µA | 40 nC @ 10 V | ±30V | 2154 pF @ 100 V | - | 37.9W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
IPB100N10S305ATMA1MOSFET N-CH 100V 100A TO263-3 |
1,382 |
|
数据手册 |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Tc) | 10V | 4.8mOhm @ 100A, 10V | 4V @ 240µA | 176 nC @ 10 V | ±20V | 11570 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
IPL65R099C7AUMA1MOSFET N-CH 650V 21A 4VSON |
9,121 |
|
数据手册 |
CoolMOS™ C7 | 4-PowerTSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 21A (Tc) | 10V | 99mOhm @ 5.9A, 10V | 4V @ 590µA | 45 nC @ 10 V | ±20V | 2140 pF @ 400 V | - | 128W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-VSON-4 |
|
|
NP100P04PDG-E1-AYMOSFET P-CH 40V 100A TO263 |
1,497 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 4.5V, 10V | 3.5mOhm @ 50A, 10V | 2.5V @ 1mA | 320 nC @ 10 V | ±20V | 15100 pF @ 10 V | - | 1.8W (Ta), 200W (Tc) | 175°C (TJ) | - | - | Surface Mount | TO-263 |
|
FDB0250N807LMOSFET N-CH 80V 240A TO263-7 |
300 |
|
数据手册 |
PowerTrench® | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 240A (Tc) | 8V, 10V | 2.2mOhm @ 30A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 15400 pF @ 40 V | - | 3.8W (Ta), 214W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
AOB095A60LMOSFET N-CH 600V 38A TO263 |
2,910 |
|
数据手册 |
aMOS5™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 38A (Tc) | 10V | 95mOhm @ 19A, 10V | 3V @ 250µA | 78 nC @ 10 V | ±20V | 4010 pF @ 100 V | - | 378W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
