场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STF20N90K5MOSFET N-CH 900V 20A TO220FP |
859 |
|
数据手册 |
MDmesh™ K5 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 20A (Tc) | 10V | 250mOhm @ 10A, 10V | 5V @ 100µA | 40 nC @ 10 V | ±30V | 1500 pF @ 100 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
R6055VNZ4C13600V 55A TO-247, PRESTOMOS WITH |
586 |
|
数据手册 |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 55A (Tc) | 10V, 15V | 71mOhm @ 16A, 15V | 6.5V @ 1.5mA | 80 nC @ 10 V | ±30V | 3700 pF @ 100 V | - | 543W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247 |
|
IPP60R060P7XKSA1MOSFET N-CH 600V 48A TO220-3 |
500 |
|
数据手册 |
CoolMOS™ P7 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 48A (Tc) | 10V | 60mOhm @ 15.9A, 10V | 4V @ 800µA | 67 nC @ 10 V | ±20V | 2895 pF @ 400 V | - | 164W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
IPB020NE7N3GATMA1MOSFET N-CH 75V 120A D2PAK |
7,434 |
|
数据手册 |
OptiMOS™ 3 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 2mOhm @ 100A, 10V | 3.8V @ 273µA | 206 nC @ 10 V | ±20V | 14400 pF @ 37.5 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
MSC750SMA170STRANS SJT 1700V D3PAK |
442 |
|
数据手册 |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | - | SiCFET (Silicon Carbide) | 1700 V | 6A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | D3PAK |
|
IPT054N15N5ATMA1TRENCH >=100V PG-HSOF-8 |
1,600 |
|
数据手册 |
OptiMOS™ | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 143A (Tc) | 8V, 10V | 5.4mOhm @ 50A, 10V | 4.6V @ 181µA | 69 nC @ 10 V | ±20V | 5300 pF @ 75 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOF-8 |
|
SIHP38N60E-GE3MOSFET N-CH 600V 43A TO220AB |
914 |
|
数据手册 |
E | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 43A (Tc) | 10V | 65mOhm @ 19A, 10V | 4V @ 250µA | 183 nC @ 10 V | ±30V | 3600 pF @ 100 V | - | 313W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
.jpg)
|
IPT60R075CFD7XTMA1MOSFET N-CH 600V 33A 8HSOF |
1,109 |
|
数据手册 |
CoolMOS™ CFD7 | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 33A (Tc) | 10V | 75mOhm @ 11.4A, 10V | 4.5V @ 570µA | 51 nC @ 10 V | ±20V | 2103 pF @ 400 V | - | 188W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-HSOF-8-2 |
|
STW40N60M2MOSFET N-CH 600V 34A TO247 |
592 |
|
数据手册 |
MDmesh™ II Plus | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 88mOhm @ 17A, 10V | 4V @ 250µA | 57 nC @ 10 V | ±25V | 2500 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|

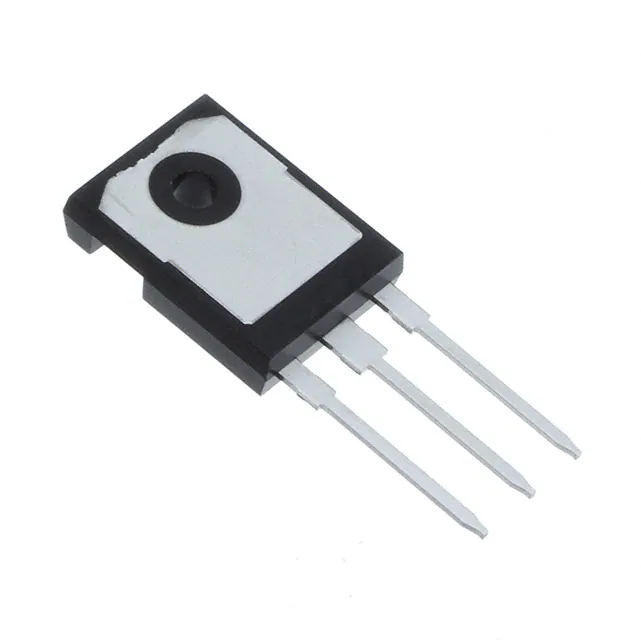

IPW60R090CFD7XKSA1MOSFET N-CH 600V 25A TO247-3 |
238 |
|
数据手册 |
OptiMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 90mOhm @ 11.4A, 10V | 4.5V @ 570µA | 51 nC @ 10 V | ±20V | 2103 pF @ 400 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|
IPI075N15N3GXKSA1MOSFET N-CH 150V 100A TO262-3 |
991 |
|
数据手册 |
OptiMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 100A (Tc) | 8V, 10V | 7.5mOhm @ 100A, 10V | 4V @ 270µA | 93 nC @ 10 V | ±20V | 5470 pF @ 75 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO262-3 |
|
STP190N55LF3MOSFET N-CH 55V 120A TO220-3 |
711 |
|
数据手册 |
STripFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 120A (Tc) | 5V, 10V | 3.7mOhm @ 30A, 10V | 2.5V @ 250µA | 80 nC @ 5 V | ±18V | 6200 pF @ 25 V | - | 312W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
NVHL072N65S3MOSFET N-CH 650V 44A TO247-3 |
185 |
|
数据手册 |
SuperFET® III | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 44A (Tc) | 10V | 72mOhm @ 22A, 10V | 4.5V @ 1mA | 82 nC @ 10 V | ±30V | 3300 pF @ 400 V | - | 312W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
SIHH26N60E-T1-GE3MOSFET N-CH 600V 25A PPAK 8 X 8 |
5,625 |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 135mOhm @ 13A, 10V | 4V @ 250µA | 116 nC @ 10 V | ±30V | 2815 pF @ 100 V | - | 202W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 8 x 8 |
|
STH275N8F7-6AGMOSFET N-CH 80V 180A H2PAK-6 |
1,842 |
|
数据手册 |
STripFET™ F7 | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 180A (Tc) | 10V | 2.1mOhm @ 90A, 10V | 4.5V @ 250µA | 193 nC @ 10 V | ±20V | 13600 pF @ 50 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | H2PAK-6 |
|
|
IXFP180N10T2MOSFET N-CH 100V 180A TO220AB |
346 |
|
数据手册 |
HiPerFET™, TrenchT2™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 6mOhm @ 50A, 10V | 4V @ 250µA | 185 nC @ 10 V | ±20V | 10500 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
STF22NM60NMOSFET N-CH 600V 16A TO220FP |
1,944 |
|
数据手册 |
MDmesh™ II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 220mOhm @ 8A, 10V | 4V @ 100µA | 44 nC @ 10 V | ±30V | 1300 pF @ 50 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
IPW65R095C7XKSA1MOSFET N-CH 650V 24A TO247 |
1,045 |
|
数据手册 |
CoolMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 95mOhm @ 11.8A, 10V | 4V @ 590µA | 45 nC @ 10 V | ±20V | 2140 pF @ 400 V | - | 128W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-1 |
|

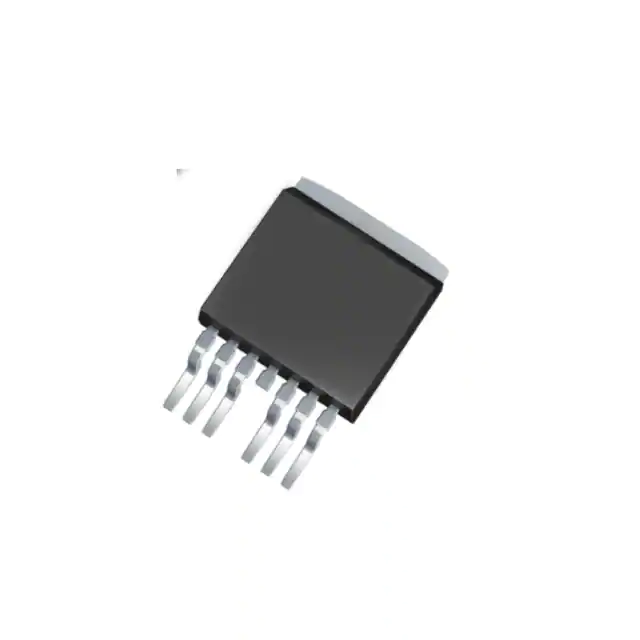

IPB060N15N5ATMA1MOSFET N-CH 150V 136A TO263-7 |
2,544 |
|
数据手册 |
OptiMOS™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 136A (Tc) | 8V, 10V | 6mOhm @ 68A, 10V | 4.6V @ 180µA | 68 nC @ 10 V | ±20V | 5300 pF @ 75 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7-3 |
|
SCT10N120AGSICFET N-CH 1200V 12A HIP247 |
569 |
|
数据手册 |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 12A (Tc) | 20V | 690mOhm @ 6A, 20V | 3.5V @ 250µA | 22 nC @ 20 V | +25V, -10V | 290 pF @ 400 V | - | 150W (Tc) | -55°C ~ 200°C (TJ) | Automotive | AEC-Q101 | Through Hole | HiP247™ |
