场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFI630GPBFMOSFET N-CH 200V 5.9A TO220-3 |
1,615 |
|
数据手册 |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 5.9A (Tc) | 10V | 400mOhm @ 3.5A, 10V | 4V @ 250µA | 43 nC @ 10 V | ±20V | 800 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|

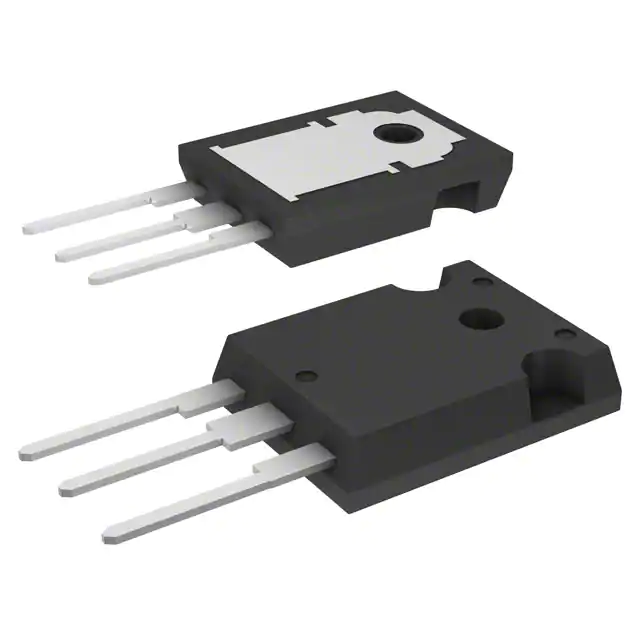

STW6N95K5MOSFET N-CH 950V 9A TO247-3 |
858 |
|
数据手册 |
SuperMESH5™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 9A (Tc) | 10V | 1.25Ohm @ 3A, 10V | 5V @ 100µA | 13 nC @ 10 V | ±30V | 450 pF @ 100 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IRFBF30PBFMOSFET N-CH 900V 3.6A TO220AB |
637 |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 3.6A (Tc) | 10V | 3.7Ohm @ 2.2A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
STW7N90K5MOSFET N-CH 900V 7A TO247-3 |
553 |
|
数据手册 |
MDmesh™ K5 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 7A (Tc) | 10V | - | 5V @ 100µA | - | ±30V | - | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IRLZ44PBF-BE3MOSFET N-CH 60V 50A TO220AB |
542 |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | - | 28mOhm @ 31A, 5V | 2V @ 250µA | 66 nC @ 5 V | ±10V | 3300 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IPA60R160P7XKSA1MOSFET N-CH 600V 20A TO220 |
154 |
|
数据手册 |
CoolMOS™ P7 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 160mOhm @ 6.3A, 10V | 4V @ 350µA | 31 nC @ 10 V | ±20V | 1317 pF @ 400 V | - | 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220 Full Pack |
|
SIHB17N80AE-GE3MOSFET N-CH 800V 15A D2PAK |
983 |
|
数据手册 |
E | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 15A (Tc) | 10V | 290mOhm @ 8.5A, 10V | 4V @ 250µA | 62 nC @ 10 V | ±30V | 1260 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IPB70N10S312ATMA1MOSFET N-CH 100V 70A TO263-3 |
459 |
|
数据手册 |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 70A (Tc) | 10V | 11.3mOhm @ 70A, 10V | 4V @ 83µA | 66 nC @ 10 V | ±20V | 4355 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
IXTA1R4N100PMOSFET N-CH 1000V 1.4A TO263 |
112 |
|
数据手册 |
Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 1.4A (Tc) | 10V | 11Ohm @ 500mA, 10V | 4.5V @ 50µA | 17.8 nC @ 10 V | ±20V | 450 pF @ 25 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
AUIRF540ZMOSFET N-CH 100V 36A TO220AB |
2,814 |
|
数据手册 |
HEXFET® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 36A (Tc) | 10V | 26.5mOhm @ 22A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1770 pF @ 25 V | - | 92W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
TK10P60W,RVQMOSFET N CH 600V 9.7A DPAK |
2,496 |
|
数据手册 |
DTMOSIV | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.7A (Ta) | 10V | 430mOhm @ 4.9A, 10V | 3.7V @ 500µA | 20 nC @ 10 V | ±30V | 700 pF @ 300 V | - | 80W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STP24N60M2MOSFET N-CH 600V 18A TO220 |
1,003 |
|
数据手册 |
MDmesh™ II Plus | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 190mOhm @ 9A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±25V | 1060 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STF18NM60NMOSFET N-CH 600V 13A TO220FP |
914 |
|
数据手册 |
MDmesh™ II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 285mOhm @ 6.5A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±25V | 1000 pF @ 50 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
IPA60R170CFD7XKSA1MOSFET N-CH 650V 8A TO220 |
212 |
|
数据手册 |
CoolMOS™ CFD7 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8A (Tc) | 10V | 170mOhm @ 6A, 10V | 4.5V @ 300µA | 28 nC @ 10 V | ±20V | 1199 pF @ 400 V | - | 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
IPP60R170CFD7XKSA1MOSFET N-CH 650V 14A TO220-3 |
117 |
|
数据手册 |
CoolMOS™ CFD7 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 14A (Tc) | 10V | 170mOhm @ 6A, 10V | 4.5V @ 300µA | 28 nC @ 10 V | ±20V | 1199 pF @ 400 V | - | 75W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
SIHB12N65E-GE3MOSFET N-CH 650V 12A D2PAK |
875 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 380mOhm @ 6A, 10V | 4V @ 250µA | 70 nC @ 10 V | ±30V | 1224 pF @ 100 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|

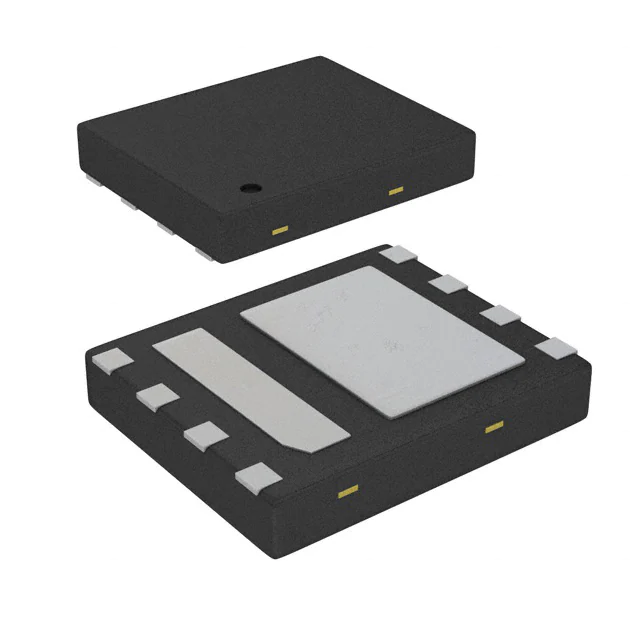

FDMS3672MOSFET N-CH 100V 7.4A/22A 8MLP |
10,459 |
|
数据手册 |
UltraFET™ | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.4A (Ta), 22A (Tc) | 6V, 10V | 23mOhm @ 7.4A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±20V | 2680 pF @ 50 V | - | 2.5W (Ta), 78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (5x6), Power56 |
|
|
SIHP20N50E-GE3MOSFET N-CH 500V 19A TO220AB |
848 |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 19A (Tc) | 10V | 184mOhm @ 10A, 10V | 4V @ 250µA | 92 nC @ 10 V | ±30V | 1640 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
TSM9ND50CIMOSFET N-CH 500V 9A ITO220 |
3,869 |
|
数据手册 |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 9A (Tc) | 10V | 900mOhm @ 2.3A, 10V | 3.8V @ 250µA | 24.5 nC @ 10 V | ±30V | 1116 pF @ 50 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
|
IRF9540STRLPBFMOSFET P-CH 100V 19A D2PAK |
2,592 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 19A (Tc) | 10V | 200mOhm @ 11A, 10V | 4V @ 250µA | 61 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 3.7W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
