场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

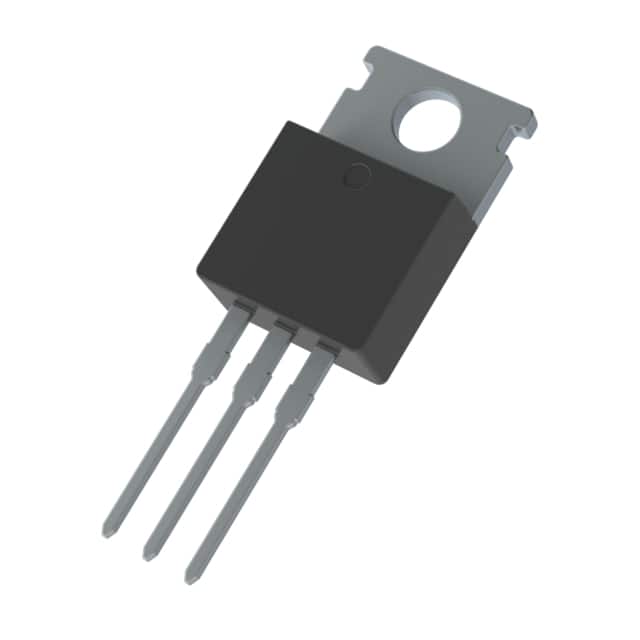

PJMP120N60EC_T0_00001600V SUPER JUNCTION MOSFET |
1,947 |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 120mOhm @ 12A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±30V | 1960 pF @ 400 V | - | 235W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB-L |
|
IRF3808PBFMOSFET N-CH 75V 140A TO220AB |
1,240 |
|
数据手册 |
HEXFET® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 140A (Tc) | 10V | 7mOhm @ 82A, 10V | 4V @ 250µA | 220 nC @ 10 V | ±20V | 5310 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IPP057N08N3GXKSA1MOSFET N-CH 80V 80A TO220-3 |
1,107 |
|
数据手册 |
OptiMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 80A (Tc) | 6V, 10V | 5.7mOhm @ 80A, 10V | 3.5V @ 90µA | 69 nC @ 10 V | ±20V | 4750 pF @ 40 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
STB18NF30MOSFET N-CH 330V 18A D2PAK |
966 |
|
数据手册 |
STripFET™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 330 V | 18A (Tc) | 10V | 180mOhm @ 9A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±20V | 1650 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
STP5N105K5MOSFET N-CH 1050V 3A TO220 |
799 |
|
数据手册 |
MDmesh™ K5 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1050 V | 3A (Tc) | 10V | 3.5Ohm @ 1.5A, 10V | 5V @ 100µA | 12.5 nC @ 10 V | ±30V | 210 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
TPW4R008NH,L1QMOSFET N-CH 80V 116A 8DSOP |
4,550 |
|
数据手册 |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 116A (Tc) | 10V | 4mOhm @ 50A, 10V | 4V @ 1mA | 59 nC @ 10 V | ±20V | 5300 pF @ 40 V | - | 800mW (Ta), 142W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-DSOP Advance |
|
RJK0654DPB-00#J5MOSFET N-CH 60V 30A LFPAK |
4,239 |
|
数据手册 |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Ta) | 10V | 8.3mOhm @ 15A, 10V | - | 27 nC @ 10 V | ±20V | 2000 pF @ 10 V | - | 55W (Tc) | 150°C (TJ) | - | - | Surface Mount | LFPAK |
|
2SJ687-ZK-E1-AYMOSFET P-CH 20V 20A TO252 |
3,791 |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 20A (Tc) | 2.5V, 4.5V | 7mOhm @ 10A, 4.5V | - | 57 nC @ 4.5 V | ±12V | 4400 pF @ 10 V | - | 1W (Ta), 36W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 (MP-3ZK) |
|
STB6NK60ZT4MOSFET N-CH 600V 6A D2PAK |
914 |
|
数据手册 |
SuperMESH™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 1.2Ohm @ 3A, 10V | 4.5V @ 100µA | 46 nC @ 10 V | ±30V | 905 pF @ 25 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
TK100S04N1L,LQMOSFET N-CH 40V 100A DPAK |
2,842 |
|
数据手册 |
U-MOSVIII-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Ta) | 4.5V, 10V | 2.3mOhm @ 50A, 10V | 2.5V @ 500µA | 76 nC @ 10 V | ±20V | 5490 pF @ 10 V | - | 100W (Tc) | 175°C (TJ) | - | - | Surface Mount | DPAK+ |
|
|
IPP60R299CPXKSA1MOSFET N-CH 650V 11A TO220-3 |
782 |
|
数据手册 |
CoolMOS™ | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 299mOhm @ 6.6A, 10V | 3.5V @ 440µA | 29 nC @ 10 V | ±20V | 1100 pF @ 100 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
SIHB23N60E-GE3MOSFET N-CH 600V 23A D2PAK |
200 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 10V | 158mOhm @ 12A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±30V | 2418 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
STL18N65M2MOSFET N-CH 650V 8A POWERFLAT HV |
2,842 |
|
数据手册 |
MDmesh™ M2 | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8A (Tc) | 10V | 365mOhm @ 4A, 10V | 4V @ 250µA | 21.5 nC @ 10 V | ±25V | 764 pF @ 100 V | - | 57W (Tc) | 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) HV |
|
|
SIHB20N50E-GE3MOSFET N-CH 500V 19A D2PAK |
2,422 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 19A (Tc) | 10V | 184mOhm @ 10A, 10V | 4V @ 250µA | 92 nC @ 10 V | ±30V | 1640 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
STF13NK50ZMOSFET N-CH 500V 11A TO220FP |
1,745 |
|
数据手册 |
SuperMESH™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 11A (Tc) | 10V | 480mOhm @ 6.5A, 10V | 4.5V @ 100µA | 47 nC @ 10 V | ±30V | 1600 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
IPP60R180C7XKSA1MOSFET N-CH 600V 13A TO220-3 |
445 |
|
数据手册 |
CoolMOS™ C7 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 180mOhm @ 5.3A, 10V | 4V @ 260µA | 24 nC @ 10 V | ±20V | 1080 pF @ 400 V | - | 68W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
IPP65R190CFD7XKSA1HIGH POWER_NEW |
930 |
|
数据手册 |
CoolMOS™ CFD7 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 17.5A (Tc) | 10V | 190mOhm @ 7.3A, 10V | 4.5V @ 700µA | 68 nC @ 10 V | ±20V | 1850 pF @ 100 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
SUM90220E-GE3MOSFET N-CH 200V 64A D2PAK |
730 |
|
数据手册 |
ThunderFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 64A (Tc) | 7.5V, 10V | 21.6mOhm @ 15A, 10V | 4V @ 250µA | 48 nC @ 10 V | ±20V | 1950 pF @ 100 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
STF5N105K5MOSFET N-CH 1050V 3A TO220 |
651 |
|
数据手册 |
MDmesh™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1050 V | 3A (Tc) | 10V | 3.5Ohm @ 1.5A, 10V | 5V @ 100µA | 12.5 nC @ 10 V | ±30V | 210 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|
|
IQE013N04LM6SCATMA1OPTIMOS LOWVOLTAGE POWER MOSFET |
11,529 |
|
数据手册 |
OptiMOS™ 6 | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 31A (Ta), 205A (Tc) | 4.5V, 10V | 1.35mOhm @ 20A, 10V | 2V @ 51µA | 41 nC @ 10 V | ±20V | 3800 pF @ 20 V | - | 2.5W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-WHSON-8-1 |
