场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFH30N60XMOSFET N-CH 600V 30A TO247 IXYS |
4,249 | - |
|
数据手册 |
HiPerFET™, Ultra X | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 155mOhm @ 15A, 10V | 4.5V @ 4mA | 56 nC @ 10 V | ±30V | 2270 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
IXFQ24N60XMOSFET N-CH 600V 24A TO3P IXYS |
9,816 | - |
|
数据手册 |
HiPerFET™, Ultra X | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 175mOhm @ 12A, 10V | 4.5V @ 2.5mA | 47 nC @ 10 V | ±30V | 1910 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
IXTR62N15PMOSFET N-CH 150V 36A ISOPLUS247 IXYS |
8,695 | - |
|
数据手册 |
Polar | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 36A (Tc) | 10V | 45mOhm @ 31A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±20V | 2250 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS247™ |
|
|
IXFH8N80MOSFET N-CH 800V 8A TO247AD IXYS |
6,735 | - |
|
数据手册 |
HiPerFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 1.1Ohm @ 4A, 10V | 4.5V @ 2.5mA | 130 nC @ 10 V | ±20V | 2600 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
IXFV20N80PMOSFET N-CH 800V 20A PLUS220 IXYS |
9,984 | - |
|
数据手册 |
HiPerFET™, Polar | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 20A (Tc) | 10V | 520mOhm @ 10A, 10V | 5V @ 4mA | 86 nC @ 10 V | ±30V | 4685 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
IXFP4N100QMOSFET N-CH 1000V 4A TO220AB IXYS |
8,003 | - |
|
数据手册 |
HiPerFET™, Q Class | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 1000 V | 4A (Tc) | 10V | 3Ohm @ 2A, 10V | 5V @ 1.5mA | 39 nC @ 10 V | ±20V | 1050 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
.jpg)
|
IRFP460MOSFET N-CH 500V 20A TO247AD IXYS |
3,906 | - |
|
数据手册 |
MegaMOS™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Tc) | 10V | 270mOhm @ 12A, 10V | 4V @ 250µA | 210 nC @ 10 V | ±20V | 4200 pF @ 25 V | - | 260W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
|
IXTP270N04T4MOSFET N-CH 40V 270A TO220AB IXYS |
2,796 | - |
|
数据手册 |
Trench | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 270A (Tc) | 10V | 2.4mOhm @ 50A, 10V | 4V @ 250µA | 182 nC @ 10 V | ±15V | 9140 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXKH30N60C5MOSFET N-CH 600V 30A TO247AD IXYS |
7,017 | - |
|
数据手册 |
CoolMOS™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 125mOhm @ 16A, 10V | 3.5V @ 1.1mA | 70 nC @ 10 V | ±20V | 2500 pF @ 10 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|

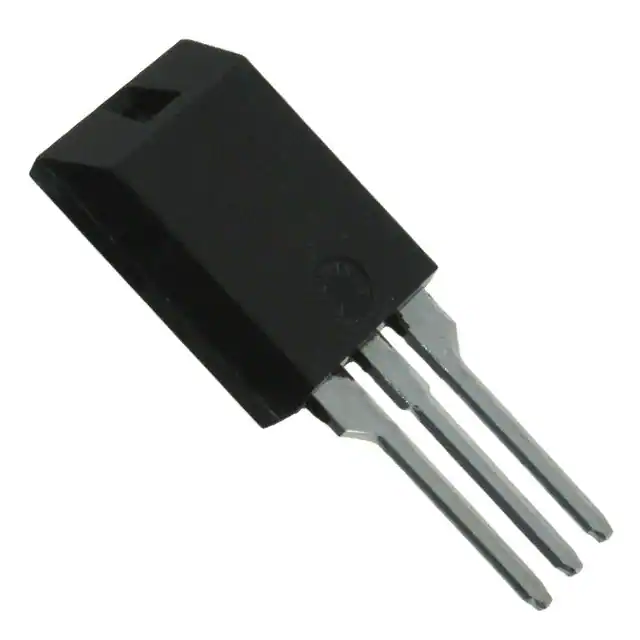

IXFC30N60PMOSFET N-CH 600V 15A ISOPLUS220 IXYS |
5,922 | - |
|
数据手册 |
HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 250mOhm @ 15A, 10V | 5V @ 4mA | 85 nC @ 10 V | ±30V | 3820 pF @ 25 V | - | 166W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
