场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFA30N60XMOSFET N-CH 600V 30A TO263 IXYS |
9,773 | - |
|
数据手册 |
HiPerFET™, Ultra X | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 155mOhm @ 15A, 10V | 4.5V @ 4mA | 56 nC @ 10 V | ±30V | 2270 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
|
IXFP220N06T3MOSFET N-CH 60V 220A TO220AB IXYS |
9,919 | - |
|
数据手册 |
HiperFET™, TrenchT3™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 220A (Tc) | 10V | 4mOhm @ 100A, 10V | 4V @ 250µA | 136 nC @ 10 V | ±20V | 8500 pF @ 25 V | - | 440W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXTA270N04T4MOSFET N-CH 40V 270A TO263AA IXYS |
4,003 | - |
|
数据手册 |
Trench | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 270A (Tc) | 10V | 2.2mOhm @ 50A, 10V | 4V @ 250µA | 182 nC @ 10 V | ±15V | 9140 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IXTA270N04T4-7MOSFET N-CH 40V 270A TO263-7 IXYS |
3,649 | - |
|
数据手册 |
Trench | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 270A (Tc) | 10V | 2.2mOhm @ 50A, 10V | 4V @ 250µA | 182 nC @ 10 V | ±15V | 9140 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263-7 (IXTA) |
|
IXTQ26N60PMOSFET N-CH 600V 26A TO3P IXYS |
9,402 | - |
|
数据手册 |
Polar | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 270mOhm @ 500mA, 10V | 5V @ 250µA | 72 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
IXTC13N50MOSFET N-CH 500V 12A ISOPLUS220 IXYS |
2,171 | - |
|
数据手册 |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 400mOhm @ 6.5A, 10V | 4V @ 2.5mA | 120 nC @ 10 V | ±20V | 2800 pF @ 25 V | - | 140W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXTC26N50PMOSFET N-CH 500V 15A ISOPLUS220 IXYS |
9,804 | - |
|
数据手册 |
PolarHV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 15A (Tc) | 10V | 260mOhm @ 13A, 10V | 5.5V @ 250µA | 65 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXFV16N80PMOSFET N-CH 800V 16A PLUS220 IXYS |
5,379 | - |
|
数据手册 |
HiPerFET™, Polar | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 16A (Tc) | 10V | 600mOhm @ 500mA, 10V | 5V @ 4mA | 71 nC @ 10 V | ±30V | 4600 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|

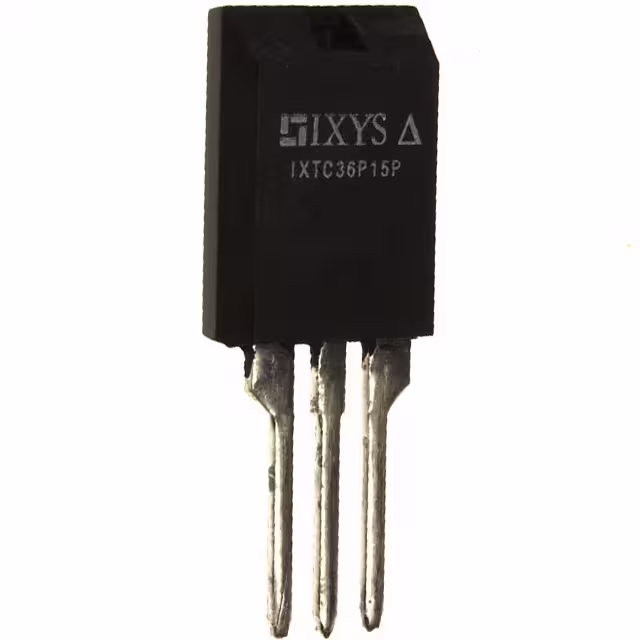

IXTC36P15PMOSFET P-CH 150V 22A ISOPLUS220 IXYS |
3,442 | - |
|
数据手册 |
PolarP™ | ISOPLUS220™ | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 150 V | 22A (Tc) | 10V | 120mOhm @ 18A, 10V | 5V @ 250µA | 55 nC @ 10 V | ±20V | 2950 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC110N10PMOSFET N-CH 100V 60A ISOPLUS220 IXYS |
7,073 | - |
|
数据手册 |
HiPerFET™, PolarHT™ | ISOPLUS220™ | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 60A (Tc) | 10V | 17mOhm @ 55A, 10V | 5V @ 4mA | 110 nC @ 10 V | ±20V | 3550 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
