场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SK2848MOSFET N-CH 600V 2A TO220F Sanken Electric USA Inc. |
4,108 | - |
|
数据手册 |
- | TO-220-3 Full Pack | Bulk | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 2A (Ta) | 10V | 3.8Ohm @ 1A, 10V | 4V @ 250µA | - | ±30V | 290 pF @ 10 V | - | 30W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
DKG1020LOW RON & GATE THRESHOLD MOSFET Sanken Electric USA Inc. |
4,938 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 20A (Ta) | 4.5V, 10V | 4.7mOhm @ 42A, 10V | 2.5V @ 1mA | 47 nC @ 10 V | ±20V | 2200 pF @ 10 V | - | 40W (Tc) | 150°C | - | - | Surface Mount | TO-252 |
|
GKI06185MOSFET N-CH 60V 7A 8DFN Sanken Electric USA Inc. |
5,106 | - |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7A (Ta) | 4.5V, 10V | 15mOhm @ 15.5A, 10V | 2.5V @ 350µA | 23.7 nC @ 10 V | ±20V | 1510 pF @ 25 V | - | 3.1W (Ta), 46W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|

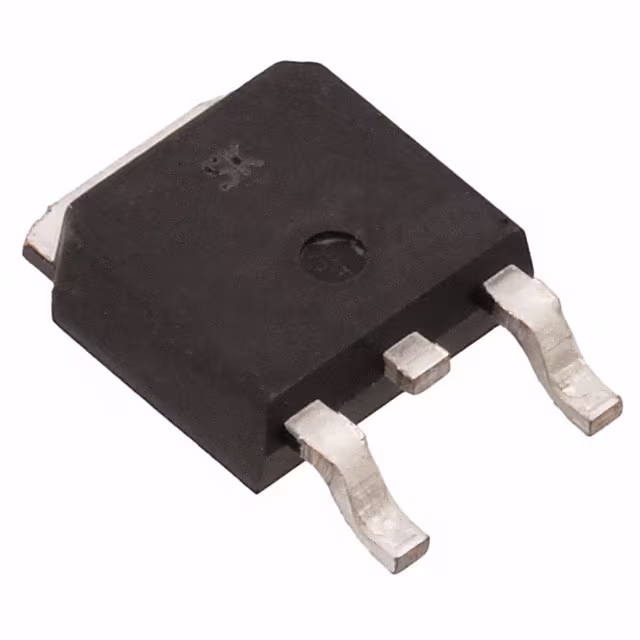

DKI06186MOSFET N-CH 60V 31A TO252 Sanken Electric USA Inc. |
4,805 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 31A (Tc) | 4.5V, 10V | 15mOhm @ 15.5A, 10V | 2.5V @ 350µA | 23.7 nC @ 10 V | ±20V | 1510 pF @ 25 V | - | 37W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
|
GKI03080MOSFET N-CH 30V 12A 8DFN Sanken Electric USA Inc. |
2,778 | - |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 8.2mOhm @ 25A, 10V | 2.5V @ 250µA | 16.3 nC @ 10 V | ±20V | 1030 pF @ 15 V | - | 3.1W (Ta), 40W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
DKI03062MOSFET N-CH 30V 48A TO252 Sanken Electric USA Inc. |
2,242 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 48A (Tc) | 4.5V, 10V | 6.5mOhm @ 31A, 10V | 2.5V @ 350µA | 24.6 nC @ 10 V | ±20V | 1480 pF @ 15 V | - | 37W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
|
DKI04077MOSFET N-CH 40V 47A TO252 Sanken Electric USA Inc. |
2,320 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 47A (Tc) | 4.5V, 10V | 8.9mOhm @ 23.3A, 10V | 2.5V @ 350µA | 18.5 nC @ 10 V | ±20V | 1470 pF @ 25 V | - | 37W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
|
FKV550TMOSFET N-CH 50V 50A TO220F Sanken Electric USA Inc. |
6,176 | - |
|
数据手册 |
- | TO-220-3 Full Pack | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 50A (Ta) | 10V | 13mOhm @ 25A, 10V | 2.5V @ 250µA | - | ±20V | 2700 pF @ 10 V | - | 35W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
DKI04103MOSFET N-CH 40V 29A TO252 Sanken Electric USA Inc. |
3,122 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 29A (Tc) | 4.5V, 10V | 11.5mOhm @ 18.8A, 10V | 2.5V @ 250µA | 14.5 nC @ 10 V | ±20V | 990 pF @ 25 V | - | 32W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
|
DKI10526MOSFET N-CH 100V 19A TO252 Sanken Electric USA Inc. |
3,851 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 19A (Ta) | 4.5V, 10V | 47.7mOhm @ 9.3A, 10V | 2.5V @ 350µA | 23 nC @ 10 V | ±20V | 1530 pF @ 25 V | - | 37W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 |
