场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

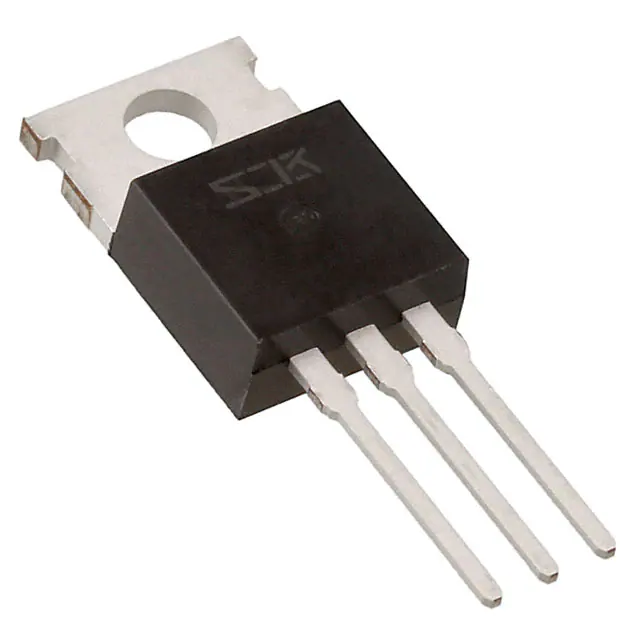

EKI10300MOSFET N-CH 100V 34A TO220 Sanken Electric USA Inc. |
7,234 | - |
|
数据手册 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 34A (Tc) | 4.5V, 10V | 28.8mOhm @ 17.1A, 10V | 2.5V @ 650µA | 36.5 nC @ 10 V | ±20V | 2540 pF @ 25 V | - | 90W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FKI06190MOSFET N-CH 60V 30A TO220F Sanken Electric USA Inc. |
3,907 | - |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Tc) | 4.5V, 10V | 15.3mOhm @ 19.8A, 10V | 2.5V @ 350µA | 23.7 nC @ 10 V | ±20V | 1510 pF @ 25 V | - | 32W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
FKI10531MOSFET N-CH 100V 18A TO220F Sanken Electric USA Inc. |
4,899 | - |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 18A (Tc) | 4.5V, 10V | 48mOhm @ 11.9A, 10V | 2.5V @ 350µA | 23 nC @ 10 V | ±20V | 1530 pF @ 25 V | - | 32W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
SKI03063MOSFET N-CH 30V 40A TO263 Sanken Electric USA Inc. |
5,459 | - |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Tc) | 4.5V, 10V | 6.5mOhm @ 39.5A, 10V | 2.5V @ 350µA | 24.6 nC @ 10 V | ±20V | 1480 pF @ 15 V | - | 64W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263 |
|
|
FKI06075MOSFET N-CH 60V 52A TO220F Sanken Electric USA Inc. |
7,867 | - |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 52A (Tc) | 4.5V, 10V | 6.3mOhm @ 39A, 10V | 2.5V @ 1mA | 53.6 nC @ 10 V | ±20V | 3810 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
EKI07174MOSFET N-CH 75V 46A TO-220 Sanken Electric USA Inc. |
4,291 | - |
|
数据手册 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 46A (Tc) | 4.5V, 10V | 13.6mOhm @ 22.8A, 10V | 2.5V @ 650µA | 36.2 nC @ 10 V | ±20V | 2520 pF @ 25 V | - | 90W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
FKI06108MOSFET N-CH 60V 39A TO220F Sanken Electric USA Inc. |
9,449 | - |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 39A (Tc) | 4.5V, 10V | 8.8mOhm @ 28.5A, 10V | 2.5V @ 650µA | 38.6 nC @ 10 V | ±20V | 2520 pF @ 25 V | - | 38W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
FKI07174MOSFET N-CH 75V 31A TO220F Sanken Electric USA Inc. |
8,620 | - |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 31A (Tc) | 4.5V, 10V | 13.6mOhm @ 22.8A, 10V | 2.5V @ 650µA | 36.2 nC @ 10 V | ±20V | 2520 pF @ 25 V | - | 38W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
FKI10300MOSFET N-CH 100V 23A TO220F Sanken Electric USA Inc. |
4,752 | - |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 23A (Tc) | 4.5V, 10V | 27.9mOhm @ 17.1A, 10V | 2.5V @ 650µA | 35.8 nC @ 10 V | ±20V | 2540 pF @ 25 V | - | 38W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
EKI06075MOSFET N-CH 60V 78A TO220-3 Sanken Electric USA Inc. |
4,368 | - |
|
数据手册 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 78A (Tc) | 4.5V, 10V | 6.3mOhm @ 39A, 10V | 2.5V @ 1mA | 53.6 nC @ 10 V | ±20V | 3810 pF @ 25 V | - | 116W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220-3 |
