场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMG85XP,115MOSFET P-CH 20V 2A 6TSSOP Nexperia USA Inc. |
2,454 | - |
|
数据手册 |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Tj) | 2.5V, 4.5V | 115mOhm @ 2A, 4.5V | 1.15V @ 250µA | 7.2 nC @ 4.5 V | ±12V | 560 pF @ 10 V | - | 375mW (Ta), 2.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSSOP |
|
PMN280ENEAXMOSFET N-CH 100V 1.2A 6TSOP Nexperia USA Inc. |
6,233 | - |
|
数据手册 |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.2A (Ta) | 4.5V, 10V | 385mOhm @ 1.2A, 10V | 2.7V @ 250µA | 6.8 nC @ 10 V | ±20V | 190 pF @ 50 V | - | 667mW (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|

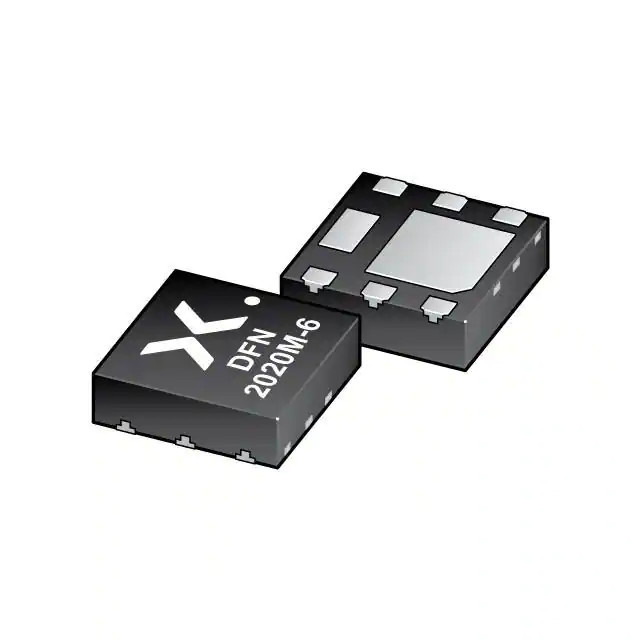

PMPB17EPXP-CHANNEL TRENCH MOSFET Nexperia USA Inc. |
8,499 | - |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.7A (Ta) | 4.5V, 10V | 21mOhm @ 5.8A, 10V | 2.5V @ 250µA | 47 nC @ 10 V | ±20V | 1570 pF @ 15 V | - | 1.9W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
|
PMPB07R3ENXPMPB07R3EN/SOT1220-2/DFN2020M- Nexperia USA Inc. |
1,682 | - |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 8.6mOhm @ 12A, 10V | 2.2V @ 250µA | 19 nC @ 10 V | ±20V | 914 pF @ 15 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
|
PSMN025-80YLXMOSFET N-CH 80V 37A LFPAK56 Nexperia USA Inc. |
3,546 | - |
|
数据手册 |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 37A (Tc) | 5V, 10V | 25mOhm @ 10A, 10V | 2.1V @ 1mA | 17.1 nC @ 5 V | ±20V | 2703 pF @ 25 V | - | 95W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
PXN018-30QLJPXN018-30QL/SOT8002/MLPAK33 Nexperia USA Inc. |
2,785 | - |
|
数据手册 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta), 19.2A (Tc) | 4.5V, 10V | 18mOhm @ 7.5A, 10V | 2.5V @ 250µA | 10.8 nC @ 10 V | ±20V | 447 pF @ 15 V | - | 1.7W (Ta), 10.9W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
BUK7S2R0-40HJBUK7S2R0-40H/SOT1235/LFPAK88 Nexperia USA Inc. |
8,387 | - |
|
数据手册 |
- | SOT-1235 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 190A (Tc) | 10V | 2mOhm @ 25A, 10V | 3.6V @ 1mA | 70 nC @ 10 V | +20V, -10V | 5075 pF @ 25 V | - | 183W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK88 (SOT1235) |
|
|
PXN6R7-30QLJPXN6R7-30QL/SOT8002/MLPAK33 Nexperia USA Inc. |
1,285 | - |
|
数据手册 |
TrenchMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12.7A (Ta), 62A (Tc) | 4.5V, 10V | 6.7mOhm @ 12.7A, 10V | 2.2V @ 250µA | 24.8 nC @ 10 V | ±20V | 1150 pF @ 15 V | - | 1.7W (Ta), 40.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
|
PSMN6R0-25YLDXMOSFET N-CH 25V 61A LFPAK56 Nexperia USA Inc. |
3,776 | - |
|
数据手册 |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 61A (Tc) | 4.5V, 10V | 6.75mOhm @ 15A, 10V | 2.2V @ 1mA | 10.5 nC @ 10 V | ±20V | 705 pF @ 12 V | Schottky Diode (Body) | 43W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
BUK7Y72-80EXMOSFET N-CH 80V 16A LFPAK56 Nexperia USA Inc. |
3,357 | - |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 16A (Tc) | 10V | 72mOhm @ 5A, 10V | 4V @ 1mA | 9.8 nC @ 10 V | ±20V | 633 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
