场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK7215-55A,118MOSFET N-CH 55V 55A DPAK Nexperia USA Inc. |
3,768 | - |
|
数据手册 |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 55A (Tc) | 10V | 15mOhm @ 25A, 10V | 4V @ 1mA | 50 nC @ 10 V | ±20V | 2107 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
BUK7660-100A,118MOSFET N-CH 100V 26A D2PAK Nexperia USA Inc. |
3,025 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 26A (Tc) | 10V | 60mOhm @ 15A, 10V | 4V @ 1mA | - | ±20V | 1377 pF @ 25 V | - | 106W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
BUK7E13-60E,127MOSFET N-CH 60V 58A I2PAK Nexperia USA Inc. |
4,926 | - |
|
数据手册 |
TrenchMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 58A (Tc) | 10V | 13mOhm @ 15A, 10V | 4V @ 1mA | 22.9 nC @ 10 V | ±20V | 1730 pF @ 25 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | I2PAK |
|
|
BUK9614-60E,118MOSFET N-CH 60V 56A D2PAK Nexperia USA Inc. |
1,633 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 56A (Tc) | 5V | 12.8mOhm @ 15A, 10V | 2.1V @ 1mA | 20.5 nC @ 5 V | ±10V | 2651 pF @ 25 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
_SOT226 Pkg.jpg)
|
BUK7E8R3-40E,127MOSFET N-CH 40V 75A I2PAK Nexperia USA Inc. |
3,568 | - |
|
数据手册 |
TrenchMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 7.4mOhm @ 20A, 10V | 4V @ 1mA | 24 nC @ 10 V | ±20V | 1730 pF @ 25 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | I2PAK |
|
|
BUK765R3-40E,118MOSFET N-CH 40V 75A D2PAK Nexperia USA Inc. |
3,183 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 4.9mOhm @ 25A, 10V | 4V @ 1mA | 35.5 nC @ 10 V | ±20V | 2772 pF @ 25 V | - | 137W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
BUK962R8-60E,118MOSFET N-CH 60V 120A D2PAK Nexperia USA Inc. |
4,841 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 5V | 2.5mOhm @ 25A, 10V | 2.1V @ 1mA | 92 nC @ 5 V | ±10V | 15600 pF @ 25 V | - | 324W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
PSMN1R5-40PS,127MOSFET N-CH 40V 120A TO220AB Nexperia USA Inc. |
3,957 | - |
|
数据手册 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 1.6mOhm @ 25A, 10V | 4V @ 1mA | 136 nC @ 10 V | ±20V | 9710 pF @ 20 V | - | 338W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|

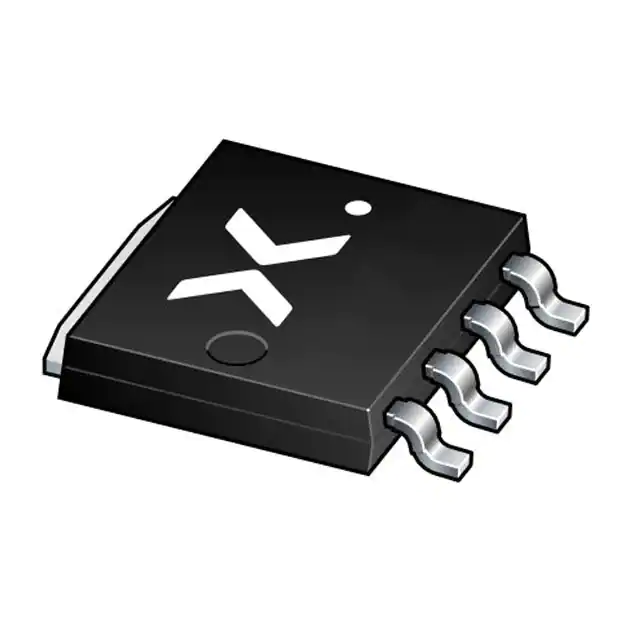

PSMN4R2-80YSEXPSMN4R2-80YSE/SOT1023/4 LEADS Nexperia USA Inc. |
7,089 | - |
|
数据手册 |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 170A (Tc) | 10V | 4.2mOhm @ 25A, 10V | 3.6V @ 1mA | 110 nC @ 10 V | ±20V | 8000 pF @ 40 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
PSMN1R9-80SSEJAPPLICATION SPECIFIC POWER MOSFE Nexperia USA Inc. |
2,964 | - |
|
数据手册 |
- | SOT-1235 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 286A (Tc) | 10V | 1.9mOhm @ 25A, 10V | 3.6V @ 1mA | 232 nC @ 10 V | ±20V | 17140 pF @ 40 V | - | 340W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK88 (SOT1235) |
