场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK6D16-30EXMOS DISCRETES Nexperia USA Inc. |
2,970 | - |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.4A (Ta), 23A (Tc) | 4.5V, 10V | 16.8mOhm @ 8.4A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 553 pF @ 15 V | - | 2.3W (Ta), 15W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN2020MD-6 |
|
PMPB20XPEAXMOSFET P-CH 20V 7.2A DFN2020MD-6 Nexperia USA Inc. |
3,000 | - |
|
数据手册 |
TrenchMOS™ | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.2A (Ta) | 1.8V, 4.5V | 23.5mOhm @ 7.2A, 4.5V | 1V @ 250µA | 45 nC @ 4.5 V | ±12V | 2945 pF @ 10 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN2020MD-6 |
|
|
PMPB12UNEAXMOSFET N-CH 20V 7.9A DFN2020MD-6 Nexperia USA Inc. |
2,993 | - |
|
数据手册 |
TrenchMOS™ | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.9A (Ta) | 1.8V, 4.5V | 18mOhm @ 7.9A, 4.5V | 900mV @ 250µA | 17 nC @ 10 V | ±12V | 1220 pF @ 10 V | - | 1.6W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN2020MD-6 |
|
|
BUK4D16-20HSMALL SIGNAL MOSFETS FOR AUTOMOT Nexperia USA Inc. |
2,769 | - |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 8.5A (Ta), 26A (Tc) | 2.5V, 8V | 14mOhm @ 9A, 8V | 1.3V @ 250µA | 15 nC @ 4.5 V | ±12V | 931 pF @ 10 V | - | 2W (Ta), 19W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN2020MD-6 |
|
|
PMPB15XPAXMOSFET P-CH 12V 8.2A DFN2020MD-6 Nexperia USA Inc. |
2,527 | - |
|
数据手册 |
TrenchMOS™ | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 8.2A (Ta) | 1.8V, 4.5V | 20mOhm @ 8.2A, 4.5V | 1V @ 250µA | 100 nC @ 4.5 V | ±12V | 2875 pF @ 6 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN2020MD-6 |
|
PMN48XPAXMOSFET P-CH 20V 4.1A 6TSOP Nexperia USA Inc. |
2,355 | - |
|
数据手册 |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.1A (Ta) | 2.5V, 4.5V | 55mOhm @ 2.4A, 4.5V | 1.25V @ 250µA | 13 nC @ 4.5 V | ±12V | 1000 pF @ 10 V | - | 530mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
|
PMPB10XNE,115MOSFET N-CH 20V 9A DFN2020MD-6 Nexperia USA Inc. |
1,208 | - |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 9A (Ta) | 1.8V, 4.5V | 14mOhm @ 9A, 4.5V | 900mV @ 250µA | 34 nC @ 4.5 V | ±12V | 2175 pF @ 10 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020MD-6 |
|
|
PSMN047-100NSEXPSMN047-100NSE/SOT1220-2/DFN20 Nexperia USA Inc. |
1,390 | - |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 18.4A (Tc) | 10V | 53.4mOhm @ 5A, 10V | 3.6V @ 1mA | 13.3 nC @ 10 V | ±20V | 815 pF @ 50 V | - | 42W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
|
|
PMPB08R4VPHPPMPB08R4VP/SOT1220-2/DFN2020M- Nexperia USA Inc. |
10,000 | - |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 12A (Ta) | 1.8V, 4.5V | 9.6mOhm @ 12A, 4.5V | 900mV @ 250µA | 40 nC @ 4.5 V | ±8V | 2200 pF @ 6 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
|

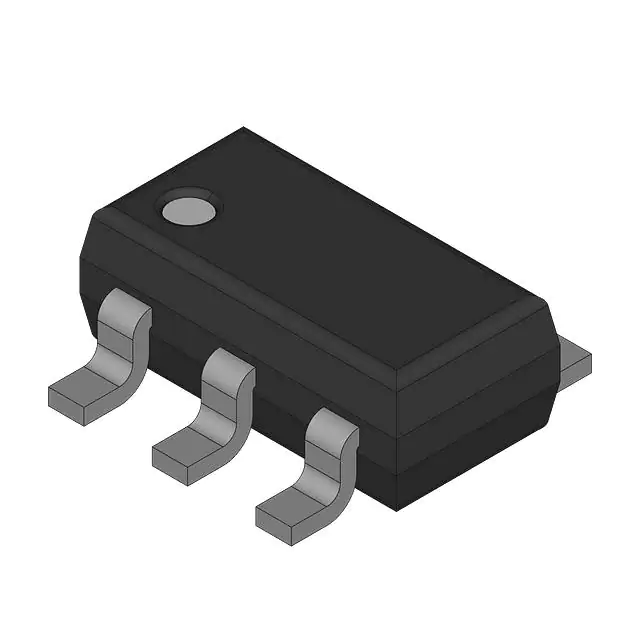

PMN48XP,125MOSFET P-CH 20V 4.1A 6TSOP Nexperia USA Inc. |
5,780 | - |
|
数据手册 |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.1A (Ta) | 2.5V, 4.5V | 55mOhm @ 2.4A, 4.5V | 1.25V @ 250µA | 13 nC @ 4.5 V | ±12V | 1000 pF @ 10 V | - | 530mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
