场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK954R2-55B,127MOSFET N-CH 55V 75A TO220AB Nexperia USA Inc. |
5,262 | - |
|
数据手册 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 4.5V, 10V | 3.7mOhm @ 25A, 10V | 2V @ 1mA | 95 nC @ 5 V | ±15V | 10220 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK954R4-40B,127MOSFET N-CH 40V 75A TO220AB Nexperia USA Inc. |
3,458 | - |
|
数据手册 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 4.5V, 10V | 4mOhm @ 25A, 10V | 2V @ 1mA | 64 nC @ 5 V | ±15V | 7124 pF @ 25 V | - | 254W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK9575-100A,127MOSFET N-CH 100V 23A TO220AB Nexperia USA Inc. |
7,506 | - |
|
数据手册 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 23A (Tc) | 4.5V, 10V | 72mOhm @ 10A, 10V | 2V @ 1mA | - | ±15V | 1704 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK9575-55A,127MOSFET N-CH 55V 20A TO220AB Nexperia USA Inc. |
9,156 | - |
|
数据手册 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 20A (Tc) | 4.5V, 10V | 68mOhm @ 10A, 10V | 2V @ 1mA | - | ±10V | 643 pF @ 25 V | - | 62W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
BUK9607-30B,118MOSFET N-CH 30V 75A D2PAK Nexperia USA Inc. |
5,263 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 4.5V, 10V | 5mOhm @ 25A, 10V | 2V @ 1mA | 32 nC @ 5 V | ±15V | 3373 pF @ 25 V | - | 157W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
BUK9612-55B,118MOSFET N-CH 55V 75A D2PAK Nexperia USA Inc. |
4,849 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 5V, 10V | 10mOhm @ 25A, 10V | 2V @ 1mA | 31 nC @ 5 V | ±15V | 3693 pF @ 25 V | - | 157W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
BUK963R2-40B,118MOSFET N-CH 40V 100A D2PAK Nexperia USA Inc. |
7,726 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 5V, 10V | 2.8mOhm @ 25A, 10V | 2V @ 1mA | 93.4 nC @ 5 V | ±15V | 10502 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
BUK964R4-40B,118MOSFET N-CH 40V 75A D2PAK Nexperia USA Inc. |
9,266 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 5V, 10V | 4mOhm @ 25A, 10V | 2V @ 1mA | 64 nC @ 5 V | ±15V | 7124 pF @ 25 V | - | 254W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|

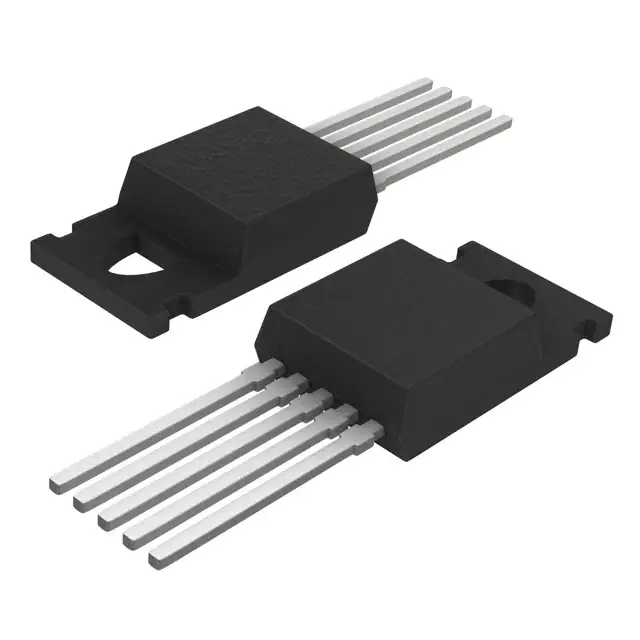

BUK9907-40ATC,127MOSFET N-CH 40V 75A TO220-5 Nexperia USA Inc. |
3,970 | - |
|
数据手册 |
TrenchMOS™ | TO-220-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 4.5V, 10V | 6.5mOhm @ 50A, 10V | 2V @ 1mA | - | ±15V | 5836 pF @ 25 V | Temperature Sensing Diode | 272W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-5 |
_SOT226 Pkg.jpg)
|
BUK9E06-55B,127MOSFET N-CH 55V 75A I2PAK Nexperia USA Inc. |
6,043 | - |
|
数据手册 |
TrenchMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 4.5V, 10V | 5.4mOhm @ 25A, 10V | 2V @ 1mA | 60 nC @ 5 V | ±15V | 7565 pF @ 25 V | - | 258W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | I2PAK |
