场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK7908-40AIE,127MOSFET N-CH 40V 75A TO220-5 Nexperia USA Inc. |
2,540 | - |
|
数据手册 |
TrenchMOS™ | TO-220-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 8mOhm @ 50A, 10V | 4V @ 1mA | 84 nC @ 10 V | ±20V | 3140 pF @ 25 V | Current Sensing | 221W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-5 |
|
|
BUK7909-75AIE,127MOSFET N-CH 75V 75A TO220-5 Nexperia USA Inc. |
9,659 | - |
|
数据手册 |
TrenchMOS™ | TO-220-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tc) | 10V | 9mOhm @ 50A, 10V | 4V @ 1mA | 121 nC @ 10 V | ±20V | 4700 pF @ 25 V | Current Sensing | 272W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-5 |
|
|
BUK7909-75ATE,127MOSFET N-CH 75V 75A TO220-5 Nexperia USA Inc. |
6,678 | - |
|
数据手册 |
TrenchMOS™ | TO-220-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tc) | 10V | 9mOhm @ 50A, 10V | 4V @ 1mA | 121 nC @ 10 V | ±20V | 4700 pF @ 25 V | Temperature Sensing Diode | 272W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-5 |
|
BUK7C06-40AITE,118MOSFET N-CH 40V 75A D2PAK Nexperia USA Inc. |
6,037 | - |
|
数据手册 |
TrenchMOS™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 6mOhm @ 50A, 10V | 4V @ 1mA | 120 nC @ 10 V | ±20V | 4300 pF @ 25 V | Current Sensing | 272W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK-7 |
|
BUK7C08-55AITE,118MOSFET N-CH 55V 75A D2PAK Nexperia USA Inc. |
4,943 | - |
|
数据手册 |
TrenchMOS™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 8mOhm @ 50A, 10V | 4V @ 1mA | 116 nC @ 10 V | ±20V | 4200 pF @ 25 V | Current Sensing | 272W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK-7 |
|
BUK7C10-75AITE,118MOSFET N-CH 75V 75A D2PAK Nexperia USA Inc. |
4,606 | - |
|
数据手册 |
TrenchMOS™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tc) | 10V | 10mOhm @ 50A, 10V | 4V @ 1mA | 121 nC @ 10 V | ±20V | 4700 pF @ 25 V | Current Sensing | 272W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK-7 |
|

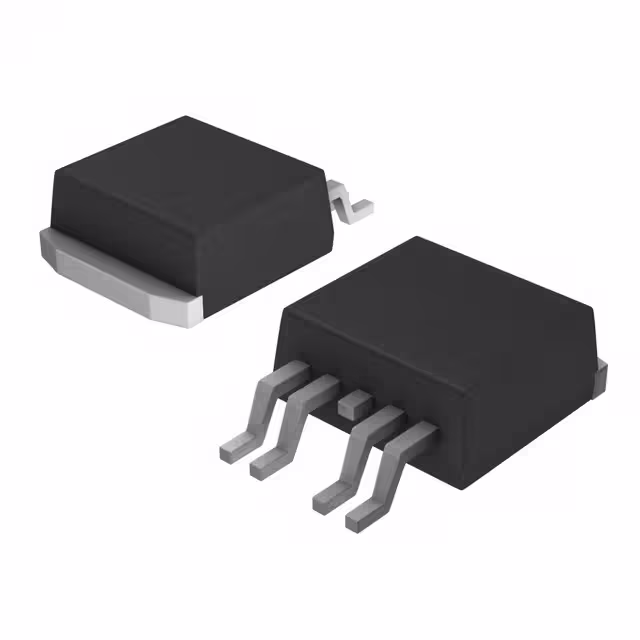

BUK9107-55ATE,118MOSFET N-CH 55V 75A SOT426 Nexperia USA Inc. |
7,300 | - |
|
数据手册 |
TrenchMOS™ | TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 4.5V, 10V | 6.2mOhm @ 50A, 10V | 2V @ 1mA | 108 nC @ 5 V | ±15V | 5836 pF @ 25 V | Temperature Sensing Diode | 272W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
BUK9230-55A,118MOSFET N-CH 55V 38A DPAK Nexperia USA Inc. |
4,964 | - |
|
数据手册 |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 38A (Tc) | 4.5V, 10V | 27mOhm @ 15A, 10V | 2V @ 1mA | - | ±10V | 1725 pF @ 25 V | - | 88W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
BUK9506-40B,127MOSFET N-CH 40V 75A TO220AB Nexperia USA Inc. |
8,919 | - |
|
数据手册 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 4.5V, 10V | 5mOhm @ 25A, 10V | 2V @ 1mA | 44 nC @ 5 V | ±15V | 4901 pF @ 25 V | - | 203W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
BUK9506-75B,127MOSFET N-CH 75V 75A TO220AB Nexperia USA Inc. |
3,704 | - |
|
数据手册 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tc) | 4.5V, 10V | 5.5mOhm @ 25A, 10V | 2V @ 1mA | 95 nC @ 5 V | ±15V | 11693 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
