场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECH8601M-C-TL-HXMOSFET N-CH 24V 8A ECH8 |
9,922 |
|
数据手册 |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | - | - | - | 8A (Tj) | - | - | - | - | - | - | - | - | 150°C (TJ) | - | - | Surface Mount | 8-ECH |
|
EFC6604R-A-TRMOSFET N-CH 24V 6A EFCP |
7,640 |
|
数据手册 |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | 150°C (TJ) | - | - | Surface Mount | 6-EFCP (1.9x1.46) |
|
MCH3333A-TL-HMOSFET P-CH 30V 2A SC70FL/MCPH3 |
6,438 |
|
数据手册 |
- | 3-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 1.8V, 4V | 215mOhm @ 1A, 4V | - | 2.8 nC @ 4 V | ±10V | 240 pF @ 10 V | - | 900mW (Ta) | - | - | - | Surface Mount | SC-70FL/MCPH3 |
|
|
MCH3377-TL-WMOSFET P-CH 20V 3A 3MCPH |
7,270 |
|
数据手册 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.8V, 4.5V | 83mOhm @ 1.5A, 4.5V | - | 4.6 nC @ 4.5 V | ±10V | 375 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 3-MCPH |
|
MCH6445-TL-WMOSFET N-CH 60V 4A 6MCPH |
7,037 |
|
数据手册 |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 4A (Ta) | 4V, 10V | 78mOhm @ 2A, 10V | - | 10 nC @ 10 V | ±20V | 505 pF @ 20 V | - | 1.5W (Ta) | 150°C (TJ) | - | - | Surface Mount | 6-MCPH |
|
MMBFV170LT3GMOSFET N-CH 60V 0.5A SOT23 |
3,375 |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
NDD01N60T4GMOSFET N-CH 600V 1.5A DPAK |
9,764 |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.5A (Tc) | 10V | 8.5Ohm @ 200mA, 10V | 3.7V @ 50µA | 7.2 nC @ 10 V | ±30V | 160 pF @ 25 V | - | 46W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
NDD02N40-1GMOSFET N-CH 400V 1.7A IPAK |
4,697 |
|
数据手册 |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 1.7A (Tc) | 10V | 5.5Ohm @ 220mA, 10V | 2V @ 250µA | 5.5 nC @ 10 V | ±20V | 121 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
NDT02N40T1GMOSFET N-CH 400V 400MA SOT223 |
8,192 |
|
数据手册 |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 400mA (Tc) | 10V | 5.5Ohm @ 220mA, 10V | 2V @ 250µA | 5.5 nC @ 10 V | ±20V | 121 pF @ 25 V | - | 2W (Tc) | - | - | - | Surface Mount | SOT-223 (TO-261) |
|
NTLUS3A18PZCTAGMOSFET P-CH 20V 5.1A 6UDFN |
8,871 |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.1A (Ta) | 1.5V, 4.5V | 18mOhm @ 7A, 4.5V | 1V @ 250µA | 28 nC @ 4.5 V | ±8V | 2240 pF @ 15 V | - | - | - | - | - | Surface Mount | 6-UDFN (2x2) |
|
|
NTLUS3A18PZCTBGMOSFET P-CH 20V 5.1A 6UDFN |
9,778 |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.1A (Ta) | 1.5V, 4.5V | 18mOhm @ 7A, 4.5V | 1V @ 250µA | 28 nC @ 4.5 V | ±8V | 2240 pF @ 15 V | - | - | - | - | - | Surface Mount | 6-UDFN (2x2) |
|
|
NTLUS3A40PZCTAGMOSFET P-CH 20V 4A 6UDFN |
4,277 |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.5V, 4.5V | 29mOhm @ 6.4A, 4.5V | 1V @ 250µA | 29 nC @ 4.5 V | ±8V | 2600 pF @ 15 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-UDFN (2x2) |
.JPG)
|

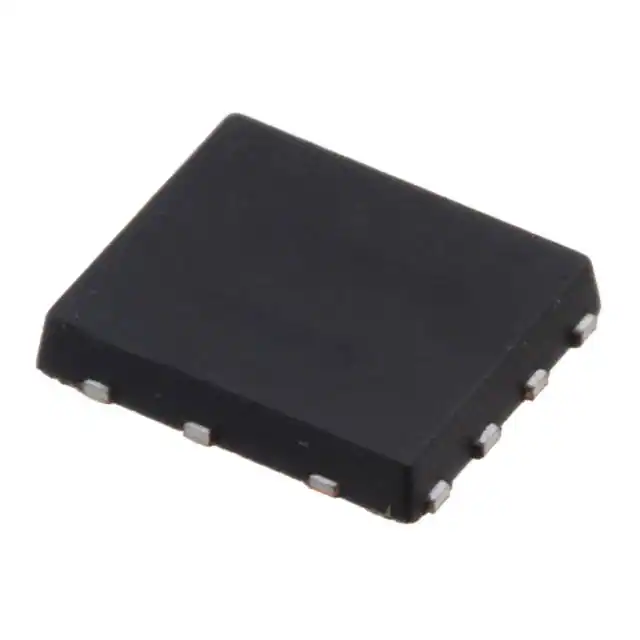

NTMFD4952NFT1GMOSFET N-CH 30V 10.8A 8DFN DL |
6,052 |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical) |
|
|
NTMFD4952NFT3GMOSFET N-CH 30V 10.8A 8DFN DL |
7,428 |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical) |
|
NTMFS4983NFT1GMOSFET N-CH 30V 22A/106A 5DFN |
8,986 |
|
数据手册 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta), 106A (Tc) | 4.5V, 10V | 2.1mOhm @ 30A, 10V | 2.3V @ 1mA | 47.9 nC @ 10 V | ±20V | 3250 pF @ 15 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NTMFS4983NFT3GMOSFET N-CH 30V 22A/106A 5DFN |
4,647 |
|
数据手册 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta), 106A (Tc) | 4.5V, 10V | 2.1mOhm @ 30A, 10V | 2.3V @ 1mA | 47.9 nC @ 10 V | ±20V | 3250 pF @ 15 V | - | 1.7W (Ta), 38W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NTMFS4C06NT3GMOSFET N-CH 30V 11A/69A 5DFN |
2,279 |
|
数据手册 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 69A (Tc) | 4.5V, 10V | 4mOhm @ 30A, 10V | 2.1V @ 250µA | 26 nC @ 10 V | ±20V | 1683 pF @ 15 V | - | 770mW (Ta), 30.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NTMFS4C50NT3GMOSFET N-CH 30V 46A 5DFN |
3,452 |
|
数据手册 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | - | - | - | 21.7A (Ta) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NTMFS4C55NT3GMOSFET N-CH 30V 11.9A/78A 5DFN |
8,425 |
|
数据手册 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.9A (Ta), 78A (Tc) | 4.5V, 10V | 3.4mOhm @ 30A, 10V | 2.2V @ 250µA | 30 nC @ 10 V | ±20V | 1972 pF @ 15 V | - | - | - | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NTMFS4C59NT3GMOSFET N-CH 30V 9A/52A 5DFN |
5,768 |
|
数据手册 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta), 52A (Tc) | 4.5V, 10V | 5.8mOhm @ 30A, 10V | 2.1V @ 250µA | 22.2 nC @ 10 V | ±20V | 1252 pF @ 15 V | - | - | - | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
