场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SK3747-1EMOSFET N-CH 1500V 2A TO3PF-3 |
4,709 |
|
数据手册 |
- | SC-94 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2A (Ta) | 10V | 13Ohm @ 1A, 10V | - | 37.5 nC @ 10 V | ±35V | 380 pF @ 30 V | - | 3W (Ta), 50W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3PF-3 |
|
|
2SK3748-1EMOSFET N-CH 1500V 4A TO3PF-3 |
5,127 |
|
数据手册 |
- | SC-94 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 4A (Ta) | 10V | 7Ohm @ 2A, 10V | - | 80 nC @ 10 V | ±20V | 790 pF @ 30 V | - | 3W (Ta), 65W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3PF-3 |
|
2SK3820-DL-1EMOSFET N-CH 100V 26A TO263-2 |
9,509 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 26A (Ta) | 4V, 10V | 60mOhm @ 13A, 10V | - | 44 nC @ 10 V | ±20V | 2150 pF @ 20 V | - | 1.65W (Ta), 50W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263-2 |
|
2SK4065-DL-1EMOSFET N-CH 75V 100A TO263-2 |
6,166 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 100A (Ta) | 4V, 10V | 6mOhm @ 50A, 10V | - | 220 nC @ 10 V | ±20V | 12200 pF @ 20 V | - | 1.65W (Ta), 90W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263-2 |
|
2SK4066-DL-1EMOSFET N-CH 60V 100A TO263-2 |
8,300 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 4V, 10V | 4.7mOhm @ 50A, 10V | - | 220 nC @ 10 V | ±20V | 12500 pF @ 20 V | - | 1.65W (Ta), 90W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263-2 |
|
2SK4124-1EMOSFET N-CH 500V 20A TO3P-3L |
5,003 |
|
数据手册 |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Ta) | 10V | 430mOhm @ 8A, 10V | - | 46.6 nC @ 10 V | ±30V | 1200 pF @ 30 V | - | 2.5W (Ta), 170W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P-3L |
|
|
2SK4125-1EMOSFET N-CH 600V 17A TO3P-3L |
6,117 |
|
数据手册 |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Ta) | 10V | 610mOhm @ 7A, 10V | - | 46 nC @ 10 V | ±30V | 1200 pF @ 30 V | - | 2.5W (Ta), 170W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P-3L |
|
|
2SK4177-DL-1EMOSFET N-CH 1500V 2A TO263-2 |
5,576 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2A (Ta) | 10V | 13Ohm @ 1A, 10V | - | 37.5 nC @ 10 V | ±20V | 380 pF @ 30 V | - | 80W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263-2 |
|
2SK536-TB-EMOSFET N-CH 50V 100MA SC59 |
7,531 |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 100mA (Ta) | 10V | 20Ohm @ 10mA, 10V | - | - | ±12V | 15 pF @ 10 V | - | 200mW (Ta) | 125°C (TJ) | - | - | Surface Mount | 3-CP |
|
5LN01SPMOSFET N-CH 50V 100MA 3SPA |
2,927 |
|
数据手册 |
- | SC-72 | Bag | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 100mA (Ta) | 1.5V, 4V | 7.8Ohm @ 50mA, 4V | 1.3V @ 100µA | 1.57 nC @ 10 V | ±10V | 6.6 pF @ 10 V | - | 250mW (Ta) | 150°C (TJ) | - | - | Through Hole | 3-SPA |
|
ATP212-S-TL-HMOSFET N-CH 60V 35A ATPAK |
6,043 |
|
数据手册 |
- | ATPAK (2 Leads+Tab) | Tape & Reel (TR) | Obsolete | - | - | - | 35A (Tj) | - | - | - | - | - | - | - | - | 150°C (TJ) | - | - | Surface Mount | ATPAK |
|
|
ATP401-TL-HMOSFET N-CH 60V 100A ATPAK |
3,434 |
|
数据手册 |
- | ATPAK (2 Leads+Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 4.5V, 10V | 3.7mOhm @ 50A, 10V | - | 300 nC @ 10 V | ±20V | 17000 pF @ 20 V | - | 90W (Tc) | 150°C (TJ) | - | - | Surface Mount | ATPAK |
|
BBS3002-DL-1EMOSFET P-CH 60V 100A D2PAK |
5,042 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 4V, 10V | 5.8mOhm @ 50A, 10V | - | 280 nC @ 10 V | ±20V | 13200 pF @ 20 V | - | 90W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
BBS3002-TL-1EMOSFET P-CH 60V 100A D2PAK |
4,910 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 4V, 10V | 5.8mOhm @ 50A, 10V | - | 280 nC @ 10 V | ±20V | 13200 pF @ 20 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
BFL4001-1EMOSFET N-CH 900V 4.1A TO220-3 FP |
7,423 |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 4.1A (Tc) | 10V | 2.7Ohm @ 3.25A, 10V | - | 44 nC @ 10 V | ±30V | 850 pF @ 30 V | - | 2W (Ta), 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 Fullpack/TO-220F-3SG |
.jpg)
|

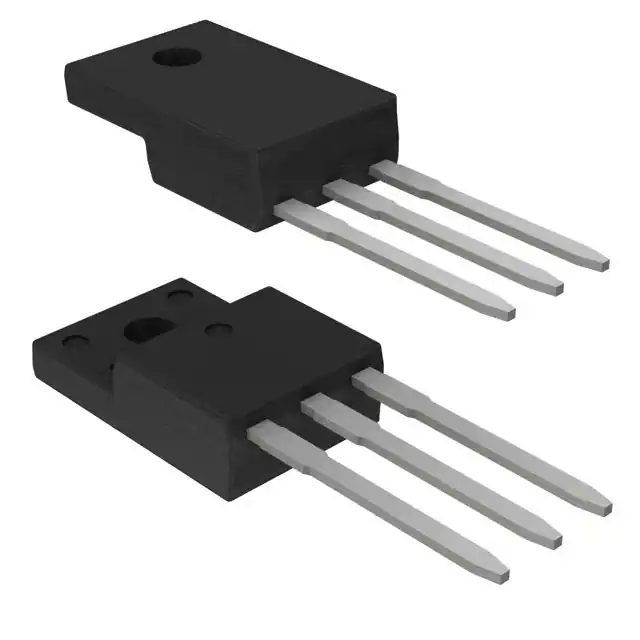

BMS3003-1EMOSFET P-CH 60V 78A TO220F-3SG |
4,385 |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 78A (Ta) | 4V, 10V | 6.5mOhm @ 39A, 10V | - | 285 nC @ 10 V | ±20V | 13200 pF @ 20 V | - | 2W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3SG |
|
|
BMS3004-1EMOSFET P-CH 75V 68A TO220F-3SG |
5,657 |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 75 V | 68A (Ta) | 4V, 10V | 8.5mOhm @ 34A, 10V | - | 300 nC @ 10 V | ±20V | 13400 pF @ 20 V | - | 2W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3SG |
|
CPH6341-M-TL-EMOSFET P-CH 30V 5A CPH6 |
5,129 |
|
数据手册 |
- | SOT-23-6 | Tape & Reel (TR) | Active | - | - | - | 5A (Tj) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 6-CPH |
|
CPH6350-P-TL-EMOSFET P-CH 30V 6A CPH6 |
6,675 |
|
数据手册 |
* | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ECH8308-P-TL-HMOSFET P-CH 12V 10A ECH8 |
7,989 |
|
数据手册 |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-ECH |
