场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSM3J108TU(TE85L)MOSFET P-CH 20V 1.8A UFM |
4,079 |
|
数据手册 |
U-MOSIII | 3-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.8A (Ta) | 1.8V, 4V | 158mOhm @ 800mA, 4V | 1V @ 1mA | - | ±8V | 250 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | - | - | Surface Mount | UFM |
|
TK40P03M1(T6RSS-Q)MOSFET N-CH 30V 40A DP |
5,686 |
|
数据手册 |
U-MOSVI-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Ta) | 4.5V, 10V | 10.8mOhm @ 20A, 10V | 2.3V @ 100µA | 17.5 nC @ 10 V | ±20V | 1150 pF @ 10 V | - | - | - | - | - | Surface Mount | DPAK |
|
|
TK40P04M1(T6RSS-Q)MOSFET N-CH 40V 40A DP |
6,191 |
|
数据手册 |
U-MOSVI-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Ta) | 4.5V, 10V | 11mOhm @ 20A, 10V | 2.3V @ 200µA | 29 nC @ 10 V | ±20V | 1920 pF @ 10 V | - | 47W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
TK4A60DA(STA4,Q,M)MOSFET N-CH 600V 3.5A TO220SIS |
3,900 |
|
数据手册 |
π-MOSVII | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.5A (Ta) | 10V | 2.2Ohm @ 1.8A, 10V | 4.4V @ 1mA | 11 nC @ 10 V | ±30V | 490 pF @ 25 V | - | - | 150°C (TJ) | - | - | Through Hole | TO-220SIS |
|
RSS100N03FU6TBMOSFET N-CH 30V 10A 8SOP |
6,927 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4V, 10V | 13mOhm @ 10A, 10V | 2.5V @ 1mA | 14 nC @ 5 V | 20V | 1070 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
RSS110N03FU6TBMOSFET N-CH 30V 11A 8SOP |
4,937 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4V, 10V | 10.7mOhm @ 11A, 10V | 2.5V @ 1mA | 17 nC @ 5 V | 20V | 1300 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
RSS125N03FU6TBMOSFET N-CH 30V 12.5A 8SOP |
9,903 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12.5A (Ta) | 4V, 10V | 8.9mOhm @ 12.5A, 10V | 2.5V @ 1mA | 28 nC @ 5 V | 20V | 1670 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
RSS130N03FU6TBMOSFET N-CH 30V 13A 8SOP |
8,705 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4V, 10V | 8.1mOhm @ 13A, 10V | 2.5V @ 1mA | 35 nC @ 5 V | 20V | 2000 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|

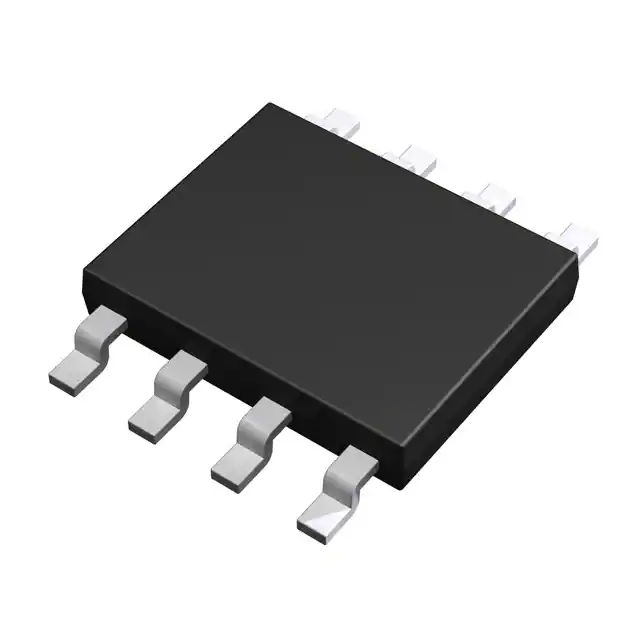

RRS100P03TB1MOSFET P-CH 30V 10A 8SOP |
3,817 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-SOP |
|
|
RSS040P03FU6TBMOSFET P-CH 30V 4A 8SOP |
6,971 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 4V, 10V | 58mOhm @ 4A, 10V | 2.5V @ 1mA | 8 nC @ 5 V | ±20V | 800 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
RSS050P03FU6TBMOSFET P-CH 30V 5A 8SOP |
5,405 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 5A (Ta) | 4V, 10V | 42mOhm @ 5A, 10V | 2.5V @ 1mA | 13 nC @ 5 V | ±20V | 1200 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
RSS065N03FU6TBMOSFET N-CH 30V 6.5A 8SOP |
4,111 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Ta) | 4V, 10V | 26mOhm @ 6.5A, 10V | 2.5V @ 1mA | 6.1 nC @ 5 V | ±20V | 430 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
RSS075P03FU6TBMOSFET P-CH 30V 7.5A 8SOP |
2,340 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 4V, 10V | 21mOhm @ 7.5A, 10V | 2.5V @ 1mA | 30 nC @ 5 V | ±20V | 2900 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
RRS075P03TB1MOSFET P-CH 30V 7.5A 8SOIC |
5,368 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-SOIC |
|
|
RSS090P03FU6TBMOSFET P-CH 30V 9A 8SOP |
9,821 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4V, 10V | 14mOhm @ 9A, 10V | 2.5V @ 1mA | 39 nC @ 5 V | ±20V | 4000 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
BSB012N03LX3 GMOSFET N-CH 30V 39A/180A 2WDSON |
6,999 |
|
数据手册 |
OptiMOS™ | 3-WDSON | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 39A (Ta), 180A (Tc) | 4.5V, 10V | 1.2mOhm @ 30A, 10V | 2.2V @ 250µA | 169 nC @ 10 V | ±20V | 16900 pF @ 15 V | - | 2.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | MG-WDSON-2, CanPAK M™ |
|
|
BSB017N03LX3 GMOSFET N-CH 30V 32A/147A 2WDSON |
3,535 |
|
数据手册 |
OptiMOS™ | 3-WDSON | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 32A (Ta), 147A (Tc) | 4.5V, 10V | 1.7mOhm @ 30A, 10V | 2.2V @ 250µA | 102 nC @ 10 V | ±20V | 7800 pF @ 15 V | - | 2.8W (Ta), 57W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | MG-WDSON-2, CanPAK M™ |
|
|
BSF024N03LT3GXUMA1MOSFET N-CH 30V 15A/106A 2WDSON |
2,679 |
|
数据手册 |
OptiMOS™ | 3-WDSON | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 106A (Tc) | 4.5V, 10V | 2.4mOhm @ 20A, 10V | 2.2V @ 250µA | 71 nC @ 10 V | ±20V | 5500 pF @ 15 V | - | 2.2W (Ta), 42W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | MG-WDSON-2, CanPAK M™ |
|
|
BSF050N03LQ3GXUMA1MOSFET N-CH 30V 15A/60A 2WDSON |
8,788 |
|
数据手册 |
OptiMOS™ | 3-WDSON | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 60A (Tc) | 4.5V, 10V | 5mOhm @ 20A, 10V | 2.2V @ 250µA | 42 nC @ 10 V | ±20V | 3000 pF @ 15 V | - | 2.2W (Ta), 28W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | MG-WDSON-2, CanPAK M™ |
|
BSS126H6327XTSA1MOSFET N-CH 600V 21MA SOT23-3 |
9,906 |
|
数据手册 |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 600 V | 21mA (Ta) | 0V, 10V | 500Ohm @ 16mA, 10V | 2.7V @ 8µA | 2.1 nC @ 5 V | ±20V | 28 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
