场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH4030AL,115MOSFET N-CH 30V 100A LFPAK56 |
8,343 |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | - | 4mOhm @ 15A, 10V | 2.15V @ 1mA | 36.6 nC @ 10 V | - | 2090 pF @ 12 V | - | - | - | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PH5030AL,115MOSFET N-CH 30V 91A LFPAK56 |
6,001 |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 91A (Tc) | - | 5mOhm @ 15A, 10V | 2.15V @ 1mA | 29 nC @ 10 V | - | 1760 pF @ 12 V | - | - | - | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PH6030AL,115MOSFET N-CH 30V 79A LFPAK56 |
2,974 |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 79A (Tc) | - | 6mOhm @ 15A, 10V | 2.15V @ 1mA | 24 nC @ 10 V | - | 1425 pF @ 12 V | - | - | - | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PH7030AL,115MOSFET N-CH 30V 76A LFPAK56 |
2,869 |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 76A (Tc) | - | 7mOhm @ 15A, 10V | 2.15V @ 1mA | 22 nC @ 10 V | - | 1270 pF @ 12 V | - | - | - | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
PH9030AL,115MOSFET N-CH 30V 61A LFPAK56 |
3,424 |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 61A (Tc) | - | 8mOhm @ 15A, 10V | 2.15V @ 1mA | 17.8 nC @ 10 V | - | 1006 pF @ 12 V | - | - | - | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
SSM3J307T(TE85L,F)MOSFET P-CH 20V 5A TSM |
6,514 |
|
数据手册 |
U-MOSV | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 5A (Ta) | 1.5V, 4.5V | 31mOhm @ 4A, 4.5V | 1V @ 1mA | 19 nC @ 4.5 V | ±8V | 1170 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSM |
|
SSM3K7002BSU,LFMOSFET N-CH 60V 200MA USM |
4,299 |
|
数据手册 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 4.5V, 10V | 2.1Ohm @ 500mA, 10V | 3.1V @ 250µA | - | ±20V | 17 pF @ 25 V | - | 150mW (Ta) | 150°C (TJ) | - | - | Surface Mount | USM |
|
SSM4K27CTTPL3MOSFET N-CH 20V 500MA CST4 |
7,954 |
|
数据手册 |
U-MOSIII | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.8V, 4V | 205mOhm @ 250mA, 4V | 1.1V @ 1mA | - | ±12V | 174 pF @ 10 V | - | 400mW (Ta) | 150°C (TJ) | - | - | Surface Mount | CST4 (1.2x0.8) |
|

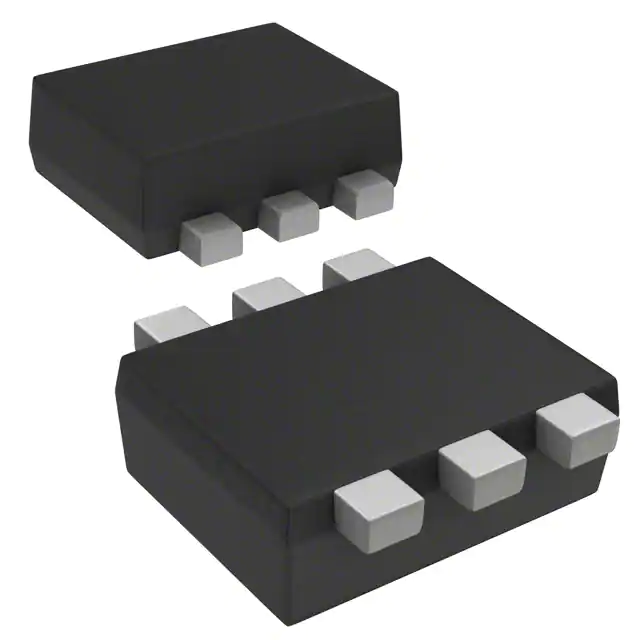

SSM6J53FE(TE85L,F)MOSFET P-CH 20V 1.8A ES6 |
8,871 |
|
数据手册 |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.8A (Ta) | 1.5V, 2.5V | 136mOhm @ 1A, 2.5V | 1V @ 1mA | 10.6 nC @ 4 V | ±8V | 568 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | - | - | Surface Mount | ES6 |
|
NTVS3141PT2GMOSFET P-CH 20V CSP-6 |
2,493 |
|
数据手册 |
- | 6-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.9A (Ta) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 6-FlipChip (1x1.5) |
|
IPD60R380C6MOSFET N-CH 600V 10.6A TO252-3 |
7,856 |
|
数据手册 |
CoolMOS™ C6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.6A (Tc) | 10V | 380mOhm @ 3.8A, 10V | 3.5V @ 320µA | 32 nC @ 10 V | ±20V | 700 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
|
IPD60R600C6BTMA1MOSFET N-CH 600V 7.3A TO252-3 |
5,798 |
|
数据手册 |
CoolMOS™ C6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 2.4A, 10V | 3.5V @ 200µA | 20.5 nC @ 10 V | ±20V | 440 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
|
IPD60R950C6MOSFET N-CH 600V 4.4A TO252-3 |
3,423 |
|
数据手册 |
CoolMOS™ C6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.4A (Tc) | 10V | 950mOhm @ 1.5A, 10V | 3.5V @ 130µA | 13 nC @ 10 V | ±20V | 280 pF @ 100 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
IPP530N15N3GXKSA1MOSFET N-CH 150V 21A TO220-3 |
5,722 |
|
数据手册 |
OptiMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 21A (Tc) | 8V, 10V | 53mOhm @ 18A, 10V | 4V @ 35µA | 12 nC @ 10 V | ±20V | 887 pF @ 75 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
|
IPP60R380C6XKSA1MOSFET N-CH 600V 10.6A TO220-3 |
8,344 |
|
数据手册 |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.6A (Tc) | 10V | 380mOhm @ 3.8A, 10V | 3.5V @ 320µA | 32 nC @ 10 V | ±20V | 700 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
IPP60R600C6XKSA1MOSFET N-CH 600V 7.3A TO220-3 |
6,551 |
|
数据手册 |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 2.4A, 10V | 3.5V @ 200µA | 20.5 nC @ 10 V | ±20V | 440 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
NDD04N60Z-1GMOSFET N-CH 600V 4.1A IPAK |
5,725 |
|
数据手册 |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.1A (Tc) | 10V | 2Ohm @ 2A, 10V | 4.5V @ 50µA | 29 nC @ 10 V | ±30V | 640 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
NTB6411ANGMOSFET N-CH 100V 77A D2PAK |
6,974 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 77A (Tc) | 10V | 14mOhm @ 72A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 3700 pF @ 25 V | - | 217W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
NTB6413ANGMOSFET N-CH 100V 42A D2PAK |
7,692 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 10V | 28mOhm @ 42A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±20V | 1800 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
NTD4913NT4GMOSFET N-CH 30V 7.7A/32A DPAK |
7,541 |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.7A (Ta), 32A (Tc) | 4.5V, 10V | 10.5mOhm @ 30A, 10V | 2.2V @ 250µA | 13 nC @ 10 V | ±20V | 1013 pF @ 15 V | - | 1.36W (Ta), 24W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
