场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMPB19R0UPEXSMALL SIGNAL MOSFETS FOR PORTABL |
2,156 |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.6A (Ta) | 1.5V, 4.5V | 21mOhm @ 7.6A, 4.5V | 900mV @ 250µA | 24 nC @ 4.5 V | ±10V | 1275 pF @ 10 V | - | 1.8W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
|
|
SI8819EDB-T2-E1MOSFET P-CH 12V 2.9A 4MICRO FOOT |
5,800 |
|
数据手册 |
- | 4-XFBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 2.9A (Ta) | 1.5V, 3.7V | 80mOhm @ 1.5A, 3.7V | 900mV @ 250µA | 17 nC @ 8 V | ±8V | 650 pF @ 6 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-MICRO FOOT® (0.8x0.8) |
|
|
PMN15ENEXMOSFET N-CH 30V 6.4A 6TSOP |
2,846 |
|
数据手册 |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.4A (Ta) | 4.5V, 10V | 24mOhm @ 6.4A, 10V | 2.5V @ 250µA | 14 nC @ 10 V | ±20V | 440 pF @ 15 V | - | 667mW (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
DMN3025LFV-7MOSFET N-CH 30V 25A POWERDI3333 |
4,991 |
|
数据手册 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Tc) | 4.5V, 10V | 18mOhm @ 7A, 10V | 2V @ 250µA | 9.8 nC @ 10 V | ±20V | 500 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI3333-8 (Type UX) |
|
DMN2022UFDF-7MOSFET N-CH 20V 7.9A 6UDFN |
1,979 |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.9A (Ta) | 1.5V, 4.5V | 22mOhm @ 4A, 4.5V | 1V @ 250µA | 18 nC @ 8 V | ±8V | 907 pF @ 10 V | - | 660mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type F) |
|
SSM6J402TU,LFMOSFET P-CH 30V 2A UF6 |
6,176 |
|
数据手册 |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 4V, 10V | 117mOhm @ 1A, 10V | 2.6V @ 1mA | 5.3 nC @ 10 V | ±20V | 280 pF @ 15 V | - | 500mW (Ta) | 150°C | - | - | Surface Mount | UF6 |
|
|
PMN25ENEAHSMALL SIGNAL MOSFET FOR AUTOMOTI |
2,994 |
|
数据手册 |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.1A (Ta) | 4.5V, 10V | 24mOhm @ 6.1A, 10V | 2.5V @ 250µA | 18 nC @ 10 V | ±20V | 597 pF @ 15 V | - | 560mW (Ta), 6.25mW (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
|
SSM6K407TU,LFMOSFET N-CH 60V 2A UF6 |
2,926 |
|
数据手册 |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 2A (Ta) | 4V, 10V | 300mOhm @ 1A, 10V | 2V @ 1mA | 6 nC @ 10 V | ±20V | 150 pF @ 10 V | - | 500mW (Ta) | 150°C | - | - | Surface Mount | UF6 |
|
|
MCMN2014HE3-TPN-CHANNEL MOSFET, DFN2020-6LE |
1,173 |
|
数据手册 |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 15A | 2.5V, 8V | 8mOhm @ 5A, 8V | 1.1V @ 250µA | 48 nC @ 8 V | ±8V | 1791 pF @ 10 V | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN2020-6LE |
|
PJQ4414P_R2_0000130V N-CHANNEL ENHANCEMENT MODE M |
4,068 |
|
数据手册 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Ta), 25A (Tc) | 4.5V, 10V | 18mOhm @ 9A, 10V | 2.5V @ 250µA | 4.3 nC @ 4.5 V | ±20V | 392 pF @ 25 V | - | 2W (Ta), 21W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|
PJL9408_R2_0000130V N-CHANNEL ENHANCEMENT MODE M |
2,384 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Ta) | 4.5V, 10V | 18mOhm @ 8A, 10V | 2.5V @ 250µA | 4.3 nC @ 4.5 V | ±20V | 392 pF @ 25 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
PMPB16R5XNEXPMPB16R5XNE - 30 V, N-CHANNEL TR |
5,251 |
|
数据手册 |
TrenchMOS™ | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7A (Ta) | 1.5V, 4.5V | 19mOhm @ 4.5A, 4.5V | 900mV @ 250µA | 18 nC @ 4.5 V | ±12V | 1150 pF @ 15 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
|
|
PMPB100ENEXMOSFET DFN2020MD-6 |
2,749 |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.1A (Ta) | 4.5V, 10V | 72mOhm @ 3.9A, 10V | 2.5V @ 250µA | 5 nC @ 10 V | ±20V | 157 pF @ 15 V | - | 3.3W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DFN2020MD-6 |
|
SI3473DDV-T1-GE3MOSFET P-CHANNEL 12V 8A 6TSOP |
5,779 |
|
数据手册 |
TrenchFET® Gen III | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 8A (Tc) | 1.8V, 4.5V | 17.8mOhm @ 8.7A, 4.5V | 1V @ 250µA | 57 nC @ 8 V | ±8V | 1975 pF @ 6 V | - | 3.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|

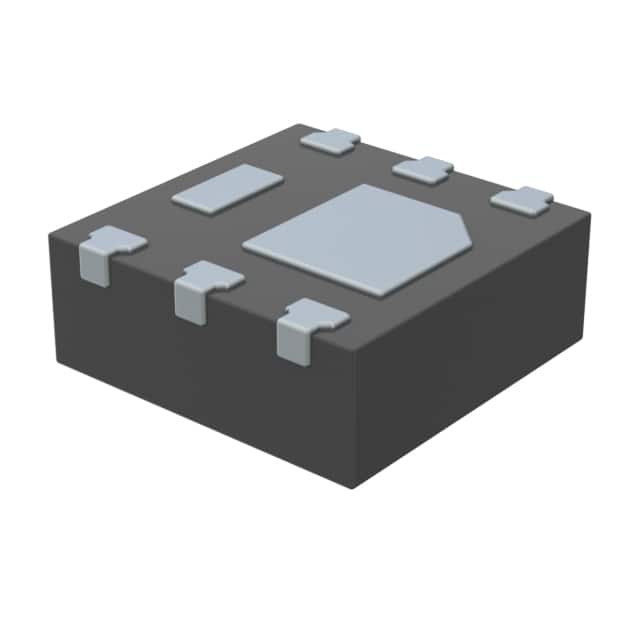

PJQ2409_R1_00001DFN2020B-6L, MOSFET |
2,942 |
|
数据手册 |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Ta) | 4.5V, 10V | 30mOhm @ 4A, 10V | 2.5V @ 250µA | 7.8 nC @ 4.5 V | ±20V | 870 pF @ 15 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020B-6 |
|
|
PMPB20XNEAXMOSFET N-CH 20V 7.5A DFN2020MD-6 |
2,890 |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.5A (Ta) | 2.5V, 4.5V | 20mOhm @ 7.5A, 4.5V | 1.25V @ 250µA | 15 nC @ 4.5 V | ±12V | 930 pF @ 10 V | - | 460mW (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN2020MD-6 |
|
|
BUK6D38-30EXMOSFET N-CH 30V 5.5A/17A 6DFN |
2,536 |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.5A (Ta), 17A (Tc) | 4.5V, 10V | 38mOhm @ 5.5A, 10V | 2.5V @ 250µA | 8 nC @ 10 V | ±20V | 266 pF @ 15 V | - | 2W (Ta), 19W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN2020MD-6 |
|
DMP22D6UT-7MOSFET P-CH 20V 430MA SOT523 |
37,562 |
|
数据手册 |
- | SOT-523 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 430mA (Ta) | 1.8V, 4.5V | 1.1Ohm @ 430mA, 4.5V | 1V @ 250µA | - | ±8V | 175 pF @ 16 V | - | 150mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
|
PMPB14XPXMOSFET DFN2020MD-6 |
14,726 |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 12.7A (Ta) | 1.8V, 4.5V | 19mOhm @ 8.6A, 4.5V | 950mV @ 250µA | 42 nC @ 4.5 V | ±8V | 2303 pF @ 6 V | - | 3.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020MD-6 |
|
SSM6K516NU,LFMOSFET N-CH 30V 6A 6UDFNB |
5,845 |
|
数据手册 |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 46mOhm @ 4A, 10V | 2.5V @ 100µA | 2.5 nC @ 4.5 V | +20V, -12V | 280 pF @ 15 V | - | 1.25W (Ta) | 150°C | - | - | Surface Mount | 6-UDFNB (2x2) |
