场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMN2400UFD-7MOSFET N-CH 20V 900MA 3DFN |
7,649 |
|
数据手册 |
- | 3-UDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 20 V | 900mA (Ta) | 1.5V, 4.5V | 600mOhm @ 200mA, 4.5V | 1V @ 250µA | 500 nC @ 4.5 V | ±12V | 37 pF @ 16 V | - | 400mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1212-3 |
|
SIL3400A-TPN-CHANNEL MOSFET,SOT23-6L |
4,875 |
|
数据手册 |
- | SOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.8A | 2.5V, 10V | 32mOhm @ 5.8A, 10V | 1.4V @ 250µA | 4.8 nC @ 4.5 V | ±12V | 1155 pF @ 15 V | - | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6L |
|
|
PJQ1916_R1_0020120V N-CHANNEL ENHANCEMENT MODE M |
8,756 |
|
数据手册 |
- | 3-UFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 950mA (Ta) | 1.2V, 4.5V | 300mOhm @ 500mA, 4.5V | 1V @ 250µA | 1.1 nC @ 4.5 V | ±8V | 46 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-3 |
|
PXN7R7-25QLJPXN7R7-25QL/SOT8002/MLPAK33 |
5,317 |
|
数据手册 |
TrenchMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 11.8A (Ta), 32A (Tc) | 4.5V, 10V | 7.7mOhm @ 11.8A, 10V | 2.2V @ 250µA | 16.6 nC @ 10 V | ±20V | 770 pF @ 12.5 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
SI1442DH-T1-BE3MOSFET N-CH 12V 4A SC70-6 |
2,980 |
|
数据手册 |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 4A (Ta) | - | 20mOhm @ 6A, 4.5V | 1V @ 250µA | 33 nC @ 8 V | ±8V | 1010 pF @ 6 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
PJE8407_R1_0000120V P-CHANNEL ENHANCEMENT MODE M |
2,980 |
|
数据手册 |
- | SOT-523 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.2V, 4.5V | 1.2Ohm @ 500mA, 4.5V | 1V @ 250µA | 1.4 nC @ 4.5 V | ±10V | 38 pF @ 10 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
|
SI2305BHE3-TPP-CHANNEL MOSFET,SOT-23 |
2,715 |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A | 1.8V, 4.5V | 60mOhm @ 2.7A, 4.5V | 900mV @ 250µA | 10.98 nC @ 4.5 V | ±10V | 1010 pF @ 10 V | - | 1.4W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
SSM3J145TU,LFMOSFET P-CH 20V 3A UFM |
9,968 |
|
数据手册 |
U-MOSVI | 3-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.5V, 4.5V | 103mOhm @ 1A, 4.5V | 1V @ 1mA | 4.6 nC @ 4.5 V | +6V, -8V | 270 pF @ 10 V | - | 500mW (Ta) | 150°C | - | - | Surface Mount | UFM |
|
SSM6J50TU,LFMOSFET P-CH 20V 2.5A UF6 |
5,998 |
|
数据手册 |
U-MOSIV | 6-SMD, Flat Leads | Tape & Reel (TR) | Last Time Buy | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 2V, 4.5V | 64mOhm @ 1.5A, 4.5V | 1.2V @ 200µA | - | ±10V | 800 pF @ 10 V | - | 500mW (Ta) | 150°C | - | - | Surface Mount | UF6 |
|
|
PXN6R2-25QLJPXN6R2-25QL/SOT8002/MLPAK33 |
4,963 |
|
数据手册 |
TrenchMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 13.1A (Ta), 65A (Tc) | 4.5V, 10V | 6.2mOhm @ 13.1A, 10V | 2.2V @ 250µA | 25.5 nC @ 10 V | ±20V | 1200 pF @ 12.5 V | - | 1.7W (Ta), 40.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
|
SSM3J371R,LXHFSMOS P-CH VDSS:-20V VGSS:-8/+6V |
12,597 |
|
数据手册 |
U-MOSVI | SOT-23-3 Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.5V, 4.5V | 55mOhm @ 3A, 4.5V | 1V @ 1mA | 10.4 nC @ 4.5 V | +6V, -8V | 630 pF @ 10 V | - | 1W (Ta) | 150°C | Automotive | AEC-Q101 | Surface Mount | SOT-23F |
|
CEDM7002AE TR PBFREEMOSFET N-CH 60V 300MA SOT883L |
2,872 |
|
数据手册 |
- | SC-101, SOT-883 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 2.5V, 10V | 1.4Ohm @ 500mA, 10V | 2V @ 250µA | 0.5 nC @ 4.5 V | 20V | 50 pF @ 25 V | - | 100mW (Ta) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-883L |
|
PMV74EPERMOSFET P-CH 30V 2.8A TO236AB |
11,445 |
|
数据手册 |
TrenchMOS™ | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.8A (Ta) | 4.5V, 10V | 90mOhm @ 2.8A, 10V | 3V @ 250µA | 10 nC @ 10 V | ±20V | 356 pF @ 15 V | - | 510mW (Ta), 6.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-236AB |
|
PXP020-20QXJPXP020-20QX/SOT8002/MLPAK33 |
6,181 |
|
数据手册 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 8A (Ta), 23.5A (Tc) | 2.5V, 4.5V | 20mOhm @ 7.7A, 4.5V | 1.25V @ 250µA | 29.1 nC @ 4.5 V | ±12V | 1900 pF @ 10 V | - | 1.7W (Ta), 15W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|

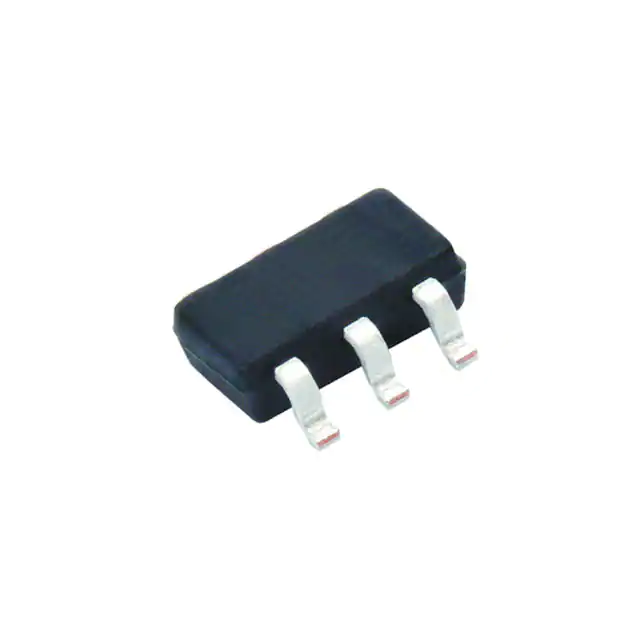

SI3456DDV-T1-BE3N-CHANNEL 30-V (D-S) MOSFET |
4,397 |
|
数据手册 |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5A (Ta), 6.3A (Tc) | 4.5V, 10V | 40mOhm @ 5A, 10V | 3V @ 250µA | 9 nC @ 10 V | ±20V | 325 pF @ 15 V | - | 1.7W (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
RQ6E035ATTCRMOSFET P-CH 30V 3.5A TSMT6 |
2,960 |
|
数据手册 |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3.5A (Ta) | 4.5V, 10V | 50mOhm @ 3.5A, 10V | 2.5V @ 1mA | 10 nC @ 10 V | ±20V | 475 pF @ 15 V | - | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
|
PXP011-20QXJPXP011-20QX/SOT8002/MLPAK33 |
5,885 |
|
数据手册 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 10.5A (Ta), 56.6A (Tc) | 2.5V, 4.5V | 11.4mOhm @ 10.5A, 4.5V | 1.25V @ 250µA | 65.1 nC @ 4.5 V | ±12V | 4200 pF @ 10 V | - | 1.8W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
|
NVMFS5C682NLWFAFT3GMOSFET N-CH 60V 8.8A/25A 5DFN |
5,000 |
|
数据手册 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 8.8A (Ta), 25A (Tc) | 4.5V, 10V | 21mOhm @ 10A, 10V | 2V @ 16µA | 5 nC @ 10 V | ±20V | 410 pF @ 25 V | - | 3.5W (Ta), 28W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
DMN2075UDW-7MOSFET N-CH 20V 2.8A SOT363 |
2,950 |
|
数据手册 |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.8A (Ta) | 1.5V, 4.5V | 48mOhm @ 3A, 4.5V | 1V @ 250µA | 7 nC @ 4.5 V | ±8V | 594.3 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
SI1427EDH-T1-BE3MOSFET P-CH 20V 2A/2A SC70-6 |
2,769 |
|
数据手册 |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta), 2A (Tc) | - | 64mOhm @ 3A, 4.5V | 1V @ 250µA | 21 nC @ 8 V | ±8V | - | - | 1.56W (Ta), 2.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
