场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUIRFSA8409-7TRLMOSFET N-CH 40V 523A D2PAK |
1,471 |
|
数据手册 |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 523A (Tc) | 10V | 0.69mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 13975 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-7 |
|
FCA20N60FMOSFET N-CH 600V 20A TO3PN |
409 |
|
数据手册 |
SuperFET™ | TO-3P-3, SC-65-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 250µA | 98 nC @ 10 V | ±30V | 3080 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PN |
|
IXTQ26N50PMOSFET N-CH 500V 26A TO3P |
262 |
|
数据手册 |
Polar | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 250µA | 65 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|

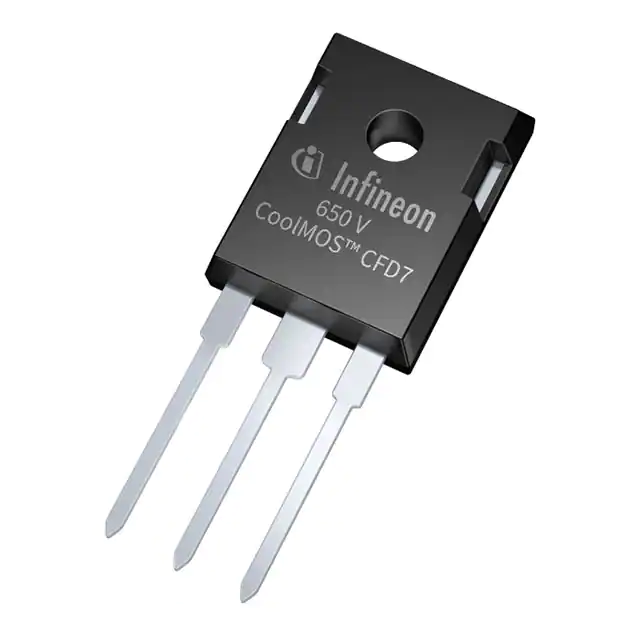

IPP65R060CFD7XKSA1650V FET COOLMOS TO247 |
314 |
|
数据手册 |
CoolMOS™ CFD7 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 36A (Tc) | 10V | 60mOhm @ 16.4A, 10V | 4.5V @ 860µA | 68 nC @ 10 V | ±20V | 3288 pF @ 400 V | - | 171W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
IPP220N25NFDAKSA1MOSFET N-CH 250V 61A TO220-3 |
903 |
|
数据手册 |
OptiMOS™ | TO-220-3 | Tube | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 250 V | 61A (Tc) | 10V | 22mOhm @ 61A, 10V | 4V @ 270µA | 86 nC @ 10 V | ±20V | 7076 pF @ 125 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
IPP60R040S7XKSA1HIGH POWER_NEW PG-TO220-3 |
274 |
|
数据手册 |
CoolMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 12V | 40mOhm @ 13A, 12V | 4.5V @ 790µA | 83 nC @ 12 V | ±20V | 3127 pF @ 300 V | - | 245W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
NTP095N65S3HFMOSFET N-CH 650V 36A TO220-3 |
495 |
|
数据手册 |
SuperFET® III | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 36A (Tc) | 10V | 95mOhm @ 18A, 10V | 5V @ 860µA | 66 nC @ 10 V | ±30V | 2930 pF @ 400 V | - | 272W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
STW52NK25ZMOSFET N-CH 250V 52A TO247-3 |
961 |
|
数据手册 |
SuperMESH™ | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 250 V | 52A (Tc) | 10V | 45mOhm @ 26A, 10V | 4.5V @ 150µA | 160 nC @ 10 V | ±30V | 4850 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
FDB082N15AMOSFET N-CH 150V 117A D2PAK |
632 |
|
数据手册 |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 117A (Tc) | 10V | 8.2mOhm @ 75A, 10V | 4V @ 250µA | 84 nC @ 10 V | ±20V | 6040 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IPB017N08N5ATMA1MOSFET N-CH 80V 120A D2PAK |
2,137 |
|
数据手册 |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 6V, 10V | 1.7mOhm @ 100A, 10V | 3.8V @ 280µA | 223 nC @ 10 V | ±20V | 16900 pF @ 40 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
FCP067N65S3MOSFET N-CH 650V 44A TO220 |
1,489 |
|
数据手册 |
SuperFET® III | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 44A (Tc) | 10V | 67mOhm @ 22A, 10V | 4.5V @ 4.4mA | 78 nC @ 10 V | ±30V | 3090 pF @ 400 V | - | 312W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
IXTQ26P20PMOSFET P-CH 200V 26A TO3P |
365 |
|
数据手册 |
PolarP™ | TO-3P-3, SC-65-3 | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 26A (Tc) | 10V | 170mOhm @ 13A, 10V | 4V @ 250µA | 56 nC @ 10 V | ±20V | 2740 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-3P |
|

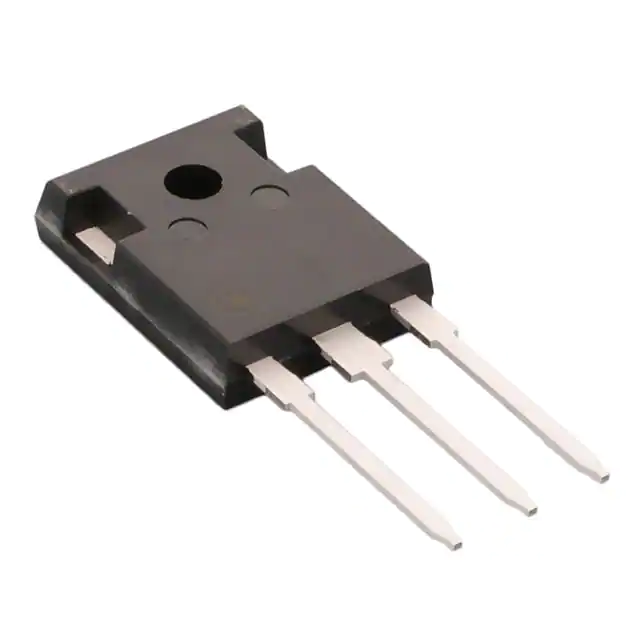

IPW65R050CFD7AXKSA1MOSFET N-CH 650V 45A TO247-3-41 |
198 |
|
数据手册 |
CoolMOS™ CFD7A | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 45A (Tc) | 10V | 50mOhm @ 24.8A, 10V | 4.5V @ 1.24mA | 102 nC @ 10 V | ±20V | 4975 pF @ 400 V | - | 227W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3-41 |
|
IRFPF50PBFMOSFET N-CH 900V 6.7A TO247-3 |
436 |
|
数据手册 |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 6.7A (Tc) | 10V | 1.6Ohm @ 4A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 2900 pF @ 25 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
SIHP052N60EF-GE3MOSFET EF SERIES TO-220AB |
934 |
|
数据手册 |
EF | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 48A (Tc) | 10V | 52mOhm @ 23A, 10V | 5V @ 250µA | 101 nC @ 10 V | ±30V | 3380 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
FCH067N65S3-F155MOSFET N-CH 650V 44A TO247 |
1,045 |
|
数据手册 |
SuperFET® III | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 44A (Tc) | 10V | 67mOhm @ 22A, 10V | 4.5V @ 4.4mA | 78 nC @ 10 V | ±30V | 3090 pF @ 400 V | - | 312W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
IMBG65R107M1HXTMA1SILICON CARBIDE MOSFET PG-TO263- |
810 |
|
数据手册 |
CoolSIC™ M1 | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 24A (Tc) | 18V | 141mOhm @ 8.9A, 18V | 5.7V @ 2.6mA | 15 nC @ 18 V | +23V, -5V | 496 pF @ 400 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7-12 |
|
IPB60R060C7ATMA1MOSFET N-CH 600V 35A TO263-3 |
475 |
|
数据手册 |
CoolMOS™ C7 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 35A (Tc) | 10V | 60mOhm @ 15.9A, 10V | 4V @ 800µA | 68 nC @ 10 V | ±20V | 2850 pF @ 400 V | - | 162W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK (TO-263) |
|
MSC090SMA070BSICFET N-CH 700V TO247-3 |
127 |
|
数据手册 |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | - | - | - | - | - | - | - | - | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
.jpg)
|
SIHB055N60EF-GE3EF SERIES POWER MOSFET WITH FAST |
744 |
|
数据手册 |
EF | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 46A (Tc) | 10V | 55mOhm @ 26.5A, 10V | 5V @ 250µA | 95 nC @ 10 V | ±30V | 3707 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
