场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_straightlead.jpg)
|
BS107PSTZMOSFET N-CH 200V 120MA E-LINE |
3,954 |
|
数据手册 |
- | E-Line-3 | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 120mA (Ta) | 2.6V, 5V | 30Ohm @ 100mA, 5V | - | - | ±20V | 85 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | E-Line (TO-92 compatible) |
|
TJ10S04M3L,LXHQMOSFET P-CH 40V 10A DPAK |
3,780 |
|
数据手册 |
U-MOSVI | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 10A (Ta) | 6V, 10V | 44mOhm @ 5A, 10V | 3V @ 1mA | 19 nC @ 10 V | +10V, -20V | 930 pF @ 10 V | - | 27W (Tc) | 175°C | - | - | Surface Mount | DPAK+ |
|
PSMN038-100YLXMOSFET N-CH 100V 30A LFPAK56 |
2,058 |
|
数据手册 |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 30A (Tc) | 5V, 10V | 37.5mOhm @ 5A, 10V | 2.1V @ 1mA | 39.2 nC @ 10 V | ±20V | 1905 pF @ 25 V | - | 94.9W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
.JPG)
|
TSM170N06PQ56 RLGMOSFET N-CH 60V 44A 8PDFN |
58,106 |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 44A (Tc) | 4.5V, 10V | 17mOhm @ 8A, 10V | 2.5V @ 250µA | 29 nC @ 10 V | ±20V | 1556 pF @ 30 V | - | 73.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (5x6) |
|
CWDM3011P TR13 PBFREEMOSFET P-CH 30V 11A 8SOIC |
6,648 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 20mOhm @ 11A, 10V | 3V @ 250µA | 80 nC @ 10 V | 20V | 3100 pF @ 8 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SQJA37EP-T1_BE3P-CHANNEL 30-V (D-S) 175C MOSFET |
6,000 |
|
数据手册 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Tc) | 4.5V, 10V | 9.2mOhm @ 6A, 10V | 2.5V @ 250µA | 100 nC @ 10 V | ±20V | 4900 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|

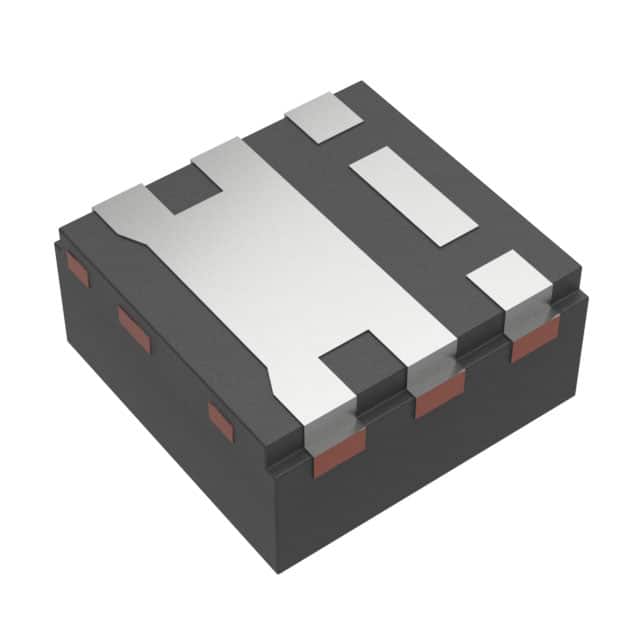

RV5A040APTCR1MOSFET P-CH 12V 4A DFN1616-6 |
5,995 |
|
数据手册 |
- | 6-PowerWFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 4A (Ta) | 1.5V, 4.5V | 62mOhm @ 4A, 4.5V | 1V @ 1mA | 16 nC @ 4.5 V | -8V, 0V | 2000 pF @ 6 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | DFN1616-8S |
|
|
SI4800BDY-T1-GE3MOSFET N-CH 30V 6.5A 8SO |
5,019 |
|
数据手册 |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Ta) | 4.5V, 10V | 18.5mOhm @ 9A, 10V | 1.8V @ 250µA | 13 nC @ 5 V | ±25V | - | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
CSD16410Q5AMOSFET N-CH 25V 16A/59A 8VSON |
4,922 |
|
数据手册 |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 16A (Ta), 59A (Tc) | 4.5V, 10V | 8.5mOhm @ 17A, 10V | 2.3V @ 250µA | 5 nC @ 4.5 V | +16V, -12V | 740 pF @ 12.5 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
|
NVTFS5124PLWFTAGMOSFET P-CH 60V 2.4A 8WDFN |
4,155 |
|
数据手册 |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.4A (Ta) | 4.5V, 10V | 260mOhm @ 3A, 10V | 2.5V @ 250µA | 6 nC @ 10 V | ±20V | 250 pF @ 25 V | - | 3W (Ta), 18W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|

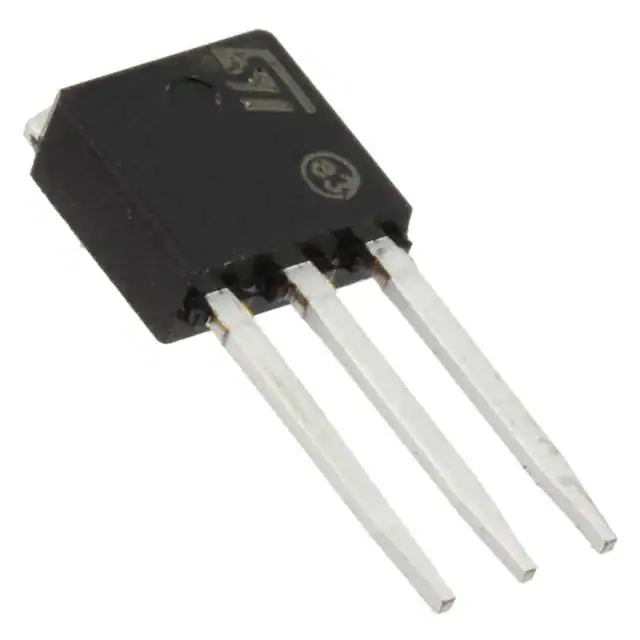

STD1NK60-1MOSFET N-CH 600V 1A IPAK |
3,716 |
|
数据手册 |
SuperMESH™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 1A (Tc) | 10V | 8.5Ohm @ 500mA, 10V | 3.7V @ 250µA | 10 nC @ 10 V | ±30V | 156 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
DMTH45M5LPSWQ-13MOSFET BVDSS: 31V~40V POWERDI506 |
3,350 |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 86A (Tc) | 4.5V, 10V | 5.5mOhm @ 25A, 10V | 2.3V @ 250µA | 13.9 nC @ 10 V | ±20V | 978 pF @ 20 V | - | 3.5W (Ta), 72W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerDI5060-8 (Type UX) |
|
|
TK15S04N1L,LXHQMOSFET N-CH 40V 15A DPAK |
1,922 |
|
数据手册 |
U-MOSVIII-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 15A (Ta) | 4.5V, 10V | 17.8mOhm @ 7.5A, 10V | 2.5V @ 100µA | 10 nC @ 10 V | ±20V | 610 pF @ 10 V | - | 46W (Tc) | 175°C | - | - | Surface Mount | DPAK+ |
|
PJP45N06A_T0_0000160V N-CHANNEL ENHANCEMENT MODE M |
1,851 |
|
数据手册 |
- | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 55A (Tc) | 4.5V, 10V | 12mOhm @ 20A, 10V | 2.5V @ 250µA | 39 nC @ 10 V | ±20V | 2256 pF @ 25 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
ISC026N03L5SATMA1MOSFET N-CH 30V 24A/100A TDSON |
21,409 |
|
数据手册 |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta), 100A (Tc) | 4.5V, 10V | 2.6mOhm @ 30A, 10V | 2V @ 250µA | 26 nC @ 10 V | ±20V | 1700 pF @ 15 V | - | 2.5W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TDSON-8-6 |
|
DMP3011SSS-13MOSFET BVDSS: 25V~30V SO-8 T&R 2 |
6,001 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 32A (Tc) | 4.5V, 10V | 10mOhm @ 11.5A, 10V | 3V @ 250µA | 46 nC @ 10 V | ±25V | 2380 pF @ 15 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
IRF510PBF-BE3MOSFET N-CH 100V 5.6A TO220AB |
5,464 |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 5.6A (Tc) | - | 540mOhm @ 3.4A, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 43W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
NTMFS5C456NLT1GMOSFET N-CH 40V 5DFN |
4,434 |
|
数据手册 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 87A (Tc) | 4.5V, 10V | 3.7mOhm @ 20A, 10V | 2V @ 250µA | 18 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 3.6W (Ta), 55W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
BUK7Y12-40EXMOSFET N-CH 40V 52A LFPAK56 |
4,371 |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 52A (Tc) | 10V | 12mOhm @ 15A, 10V | 4V @ 1mA | 15 nC @ 10 V | ±20V | 1039 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
SIS447DN-T1-GE3MOSFET P-CH 20V 18A PPAK1212-8 |
3,720 |
|
数据手册 |
- | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 18A (Tc) | 2.5V, 10V | 7.1mOhm @ 20A, 10V | 1.2V @ 250µA | 181 nC @ 10 V | ±12V | 5590 pF @ 10 V | - | 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
