场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK7Y65-100EXMOSFET N-CH 100V 19A LFPAK56 |
4,309 |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 19A (Tc) | 10V | 65mOhm @ 5A, 10V | 4V @ 1mA | 17.8 nC @ 10 V | ±20V | 1023 pF @ 25 V | - | 64W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
TPH8R903NL,LQMOSFET N CH 30V 20A 8SOP |
3,150 |
|
数据手册 |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Tc) | 10V | 8.9mOhm @ 10A, 10V | 2.3V @ 1mA | 9.8 nC @ 10 V | ±20V | 820 pF @ 15 V | - | 1.6W (Ta), 24W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
.jpg)
|
SIHFR9310TRR-GE3MOSFET P-CHANNEL 400V |
1,266 |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 400 V | 1.8A (Tc) | 10V | 7Ohm @ 1.1A, 10V | 4V @ 250µA | 13 nC @ 10 V | ±20V | 270 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
NVTFS6H880NLWFTAGMOSFET N-CH 80V 6.6A/22A 8WDFN |
1,248 |
|
数据手册 |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 6.6A (Ta), 22A (Tc) | 4.5V, 10V | 29mOhm @ 5A, 10V | 2V @ 20µA | 9 nC @ 10 V | ±20V | 431 pF @ 40 V | - | 3.1W (Ta), 33W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|

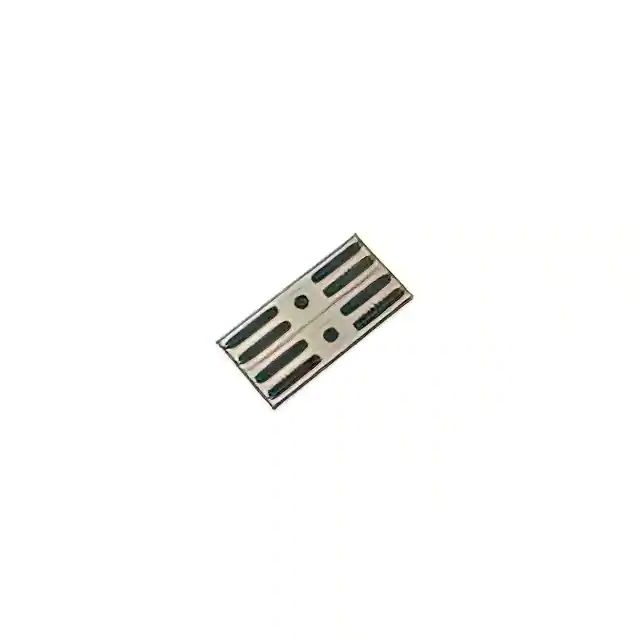

SSM10N954L,EFFCOMMON-DRAIN NCH MOSFET, 12V, 13 |
9,865 |
|
数据手册 |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 13.5A (Ta) | 2.5V, 4.5V | 2.75mOhm @ 6A, 4.5V | 1.4V @ 1.11mA | 25 nC @ 4 V | ±8V | - | - | 800mW (Ta) | 150°C | - | - | Surface Mount | TCSPAC-153001 |
|
|
BUK9Y40-55B,115MOSFET N-CH 55V 26A LFPAK56 |
9,634 |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 26A (Tc) | 5V | 36mOhm @ 15A, 10V | 2V @ 1mA | 11 nC @ 5 V | ±15V | 1020 pF @ 25 V | - | 59W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
SI3459BDV-T1-E3MOSFET P-CH 60V 2.9A 6TSOP |
5,833 |
|
数据手册 |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Last Time Buy | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.9A (Tc) | 4.5V, 10V | 216mOhm @ 2.2A, 10V | 3V @ 250µA | 12 nC @ 10 V | ±20V | 350 pF @ 30 V | - | 3.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
SQJA70EP-T1_GE3MOSFET N-CH 100V 14.7A PPAK SO-8 |
5,716 |
|
数据手册 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 14.7A (Tc) | 10V | 95mOhm @ 4A, 10V | 3.5V @ 250µA | 7 nC @ 10 V | ±20V | 220 pF @ 25 V | - | 27W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
AOU4N60MOSFET N-CH 600V 4A TO251-3 |
3,972 |
|
数据手册 |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 2.3Ohm @ 2A, 10V | 4.5V @ 250µA | 14.5 nC @ 10 V | ±30V | 640 pF @ 25 V | - | 104W (Tc) | -50°C ~ 150°C (TJ) | - | - | Through Hole | TO-251-3 |
|
R6004KNXMOSFET N-CH 600V 4A TO220FM |
262 |
|
数据手册 |
- | TO-220-3 Full Pack | Bulk | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 980mOhm @ 1.5A, 10V | 5V @ 1mA | 10.2 nC @ 10 V | ±20V | 280 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FM |
.JPG)
|
TSM110NB04CR RLGMOSFET N-CH 40V 12A/54A 8PDFN |
22,000 |
|
数据手册 |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Ta), 54A (Tc) | 10V | 11mOhm @ 12A, 10V | 4V @ 250µA | 23 nC @ 10 V | ±20V | 1443 pF @ 20 V | - | 3.1W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PDFN (5.2x5.75) |
|
DMP1011UCB9-7MOSFET P-CH 8V 10A U-WLB1515-9 |
21,010 |
|
数据手册 |
- | 9-UFBGA, WLBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 8 V | 10A (Ta) | 2.5V, 4.5V | 10mOhm @ 2A, 4.5V | 1.1V @ 250µA | 10.5 nC @ 4.5 V | -6V | 1060 pF @ 4 V | - | 890mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-WLB1515-9 |
|
RQ3L050GNTBMOSFET N-CHANNEL 60V 12A 8HSMT |
10,966 |
|
数据手册 |
- | 8-PowerVDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Tc) | 4.5V, 10V | 61mOhm @ 5A, 10V | 2.5V @ 25µA | 2.8 nC @ 4.5 V | ±20V | 300 pF @ 30 V | - | 14.8W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-HSMT (3.2x3) |
|
TSM1NB60CW RPGMOSFET N-CHANNEL 600V 1A SOT223 |
9,546 |
|
数据手册 |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 1A (Tc) | 10V | 10Ohm @ 500mA, 10V | 4.5V @ 250µA | 6.1 nC @ 10 V | ±30V | 138 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
TSM220NB06CR RLGMOSFET N-CH 60V 8A/35A 8PDFN |
8,866 |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 8A (Ta), 35A (Tc) | 10V | 22mOhm @ 8A, 10V | 4V @ 250µA | 23 nC @ 10 V | ±20V | 1454 pF @ 30 V | - | 3.1W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PDFN (5x6) |
|
RTR030N05HZGTLMOSFET N-CH 45V 3A TSMT3 |
8,074 |
|
数据手册 |
- | SC-96 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 45 V | 3A (Ta) | 2.5V, 4.5V | 67mOhm @ 3A, 4.5V | 1.5V @ 1mA | 6.2 nC @ 4.5 V | ±12V | 510 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TSMT3 |
|
ZXMP10A17E6QTAMOSFET P-CH 100V 1.3A SOT26 |
7,964 |
|
数据手册 |
- | SOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 1.3A (Ta) | 6V, 10V | 350mOhm @ 1.4A, 10V | 4V @ 250µA | 10.7 nC @ 10 V | ±20V | 424 pF @ 50 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-26 |
|
RSQ030N08HZGTRMOSFET N-CH 80V 3A TSMT6 |
7,901 |
|
数据手册 |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 3A (Ta) | 4V, 10V | 131mOhm @ 3A, 10V | 2.5V @ 1mA | 6.5 nC @ 5 V | ±20V | 550 pF @ 10 V | - | 950mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TSMT6 (SC-95) |
|
DMP2007UFG-13MOSFET P-CH 20V 18A PWRDI3333 |
6,994 |
|
数据手册 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 18A (Ta), 40A (Tc) | 2.5V, 10V | 5.5mOhm @ 15A, 10V | 1.3V @ 250µA | 85 nC @ 10 V | ±12V | 4621 pF @ 10 V | - | 2.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | POWERDI3333-8 |
|
IPD15N06S2L64ATMA2MOSFET N-CH 55V 19A TO252-31 |
3,360 |
|
数据手册 |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 19A (Tc) | 4.5V, 10V | 64mOhm @ 13A, 10V | 2V @ 14µA | 13 nC @ 10 V | ±20V | 354 pF @ 25 V | - | 47W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-11 |
