直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFB1248XHE-TP17FAN AXIAL 120X38MM 48VDC WIRE |
2,544 |
|
数据手册 |
PFB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 306.9 CFM (8.59m³/min) | 2.175 in H2O (541.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.5dB(A) | 76.8 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
CFM-A751BF-245-588FAN AXIAL 172X51.5MM 24VDC WIRE |
1,809 |
|
数据手册 |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 324.9 CFM (9.10m³/min) | 1.070 in H2O (266.5 Pa) | Ball | Tubeaxial | Auto Restart | 58.8dB(A) | 51.84 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PFM1412DEB7VFAN AXIAL 139.7X38MM 12VDC WIRE |
4,415 |
|
数据手册 |
PFM - Three-Phase | Box | Active | 12VDC | Square - 139.7mm L x 139.7mm H | 38.00mm | 282.3 CFM (7.90m³/min) | 2.033 in H2O (506.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 46.8 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 1.3 lbs (589.7 g) |
|
17001165AFAN AXIAL 12VDC MDD12K1E2X-E3 |
3,650 |
|
数据手册 |
- | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 125.0 CFM (3.50m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.5dB(A) | 8.6 W | 3650 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

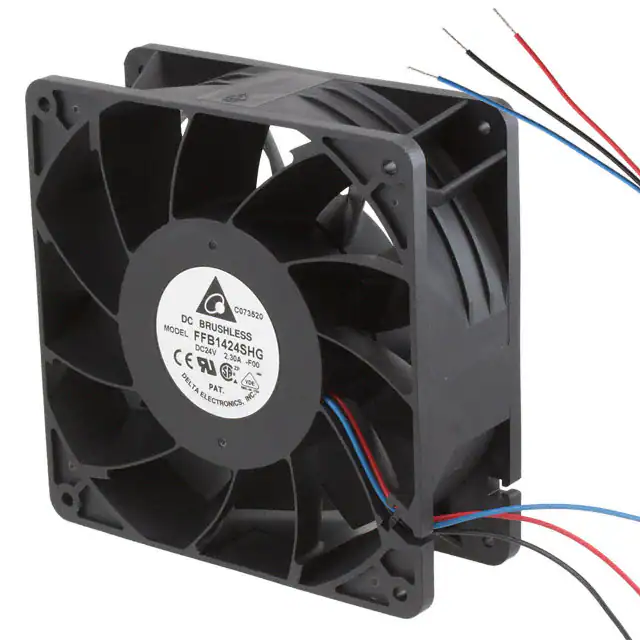

FFB1424SHG-F00FAN AXIAL 139.7X50.8MM 24VDC |
4,003 |
|
数据手册 |
FFB | Box | Obsolete | 24VDC | Square - 139.7mm L x 139.7mm H | 50.80mm | 273.1 CFM (7.65m³/min) | 0.781 in H2O (194.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 61.7dB(A) | 36.72 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 1.5 lbs (670.0 g) |
|
3318NHHDC TUBEAXIAL FAN |
4,065 |
|
数据手册 |
3300N | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 63.0 CFM (1.76m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 3.4 W | 3450 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
|
9BMC24G200297X33MM 24V,HIGH PERFORMANCE BLO |
3,317 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9BMC12G200297X33MM 12V,HIGH PERFORMANCE BLO |
3,393 |
|
数据手册 |
San Ace B97 | Box | Active | 12VDC | Square/Rounded - 97mm L x 97mm H | 33.00mm | - | - | Ball | Blower | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
19040427AFAN PATRIOT 24VDC 45.6W 4830RPM |
2,012 |
|
数据手册 |
Patriot | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 330.0 CFM (9.24m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 41 W | 4830 RPM | 4 Wire Leads | - | - | - | 1.9 lbs (861.8 g) |
|
|
19040425AFAN PATRIOT DC 24VDC 41W 4830RPM |
2,881 |
|
数据手册 |
Patriot | Bulk | Active | 24VDC | Round - 172mm Dia | 51.00mm | 332.0 CFM (9.30m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 40.8 W | 4830 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.9 lbs (861.8 g) |
|
|
17001168AFAN AXIAL 48VDC MDD48Z1E2X-E3 |
3,369 |
|
数据手册 |
- | Bulk | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 150.0 CFM (4.20m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 16.8 W | 4600 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
19040404AFAN MUFFIN XL 48VDC 40W 4846RPM |
3,203 |
|
数据手册 |
Muffin XL | Bulk | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 39.10mm | 210.0 CFM (5.88m³/min) | - | Ball | Tubeaxial | - | - | 40 W | - | 2 Wire Leads | - | - | - | - |
|
|
19039661AFAN BLWR 80X32.4MM 24V WT24B3-E2 |
4,908 |
|
数据手册 |
Whiffet | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 32.00mm | 15.0 CFM (0.420m³/min) | - | Ball | Blower | Auto Restart, Locked Rotor Protection | 51.4dB(A) | 4.8 W | 4050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | - |
|
|
8214JN/2NP-001DC TUBEAXIAL FAN |
1,932 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8214J/2NP-001DC TUBEAXIAL FAN |
1,936 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
17001166AFAN AXIAL 24VDC MDD24K1E2X-E3 |
2,886 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 125.0 CFM (3.50m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.5dB(A) | 8.2 W | 3650 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
PFE0381B1-000U-H9912VDC FAN 140X38MM PWM |
3,623 |
|
数据手册 |
PF | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 238.5 CFM (6.68m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 62.0dB(A) | 20.64 W | 5500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PFE0381BX-000U-H9912VDC FAN 140X38MM PWM |
4,458 |
|
数据手册 |
PF | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 297.9 CFM (8.34m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 68.3dB(A) | 39.6 W | 6800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PFE0381B1-000U-G9912VDC FAN 140X38MM ALARM |
2,420 |
|
数据手册 |
PF | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 238.5 CFM (6.68m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 62.0dB(A) | 20.64 W | 5500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PFE0381BX-000U-G9912VDC FAN 140X38MM ALARM |
1,728 |
|
数据手册 |
PF | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 297.9 CFM (8.34m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 68.3dB(A) | 39.6 W | 6800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
