直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV1248P1J011FAN AXIAL 120X38MM 48VDC WIRE |
3,097 |
|
数据手册 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 36 W | 6400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1248P1B10120X38MM 48V,GUIDE VANE DC TACH, |
3,440 |
|
数据手册 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 183.7 CFM (5.20m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 20.64 W | 5250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
12038VA-12M-ET-00FAN AXIAL 120X38MM 12VDC WIRE |
2,909 |
|
数据手册 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
8312MVFAN AXIAL 80X32MM 12VDC WIRE |
3,225 |
|
数据手册 |
8300V | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 14.0 CFM (0.392m³/min) | - | Ball | Tubeaxial | - | 18.0dB(A) | 1 W | - | 2 Wire Leads | - | - | - | 0.38 lb (172.37 g) |
|

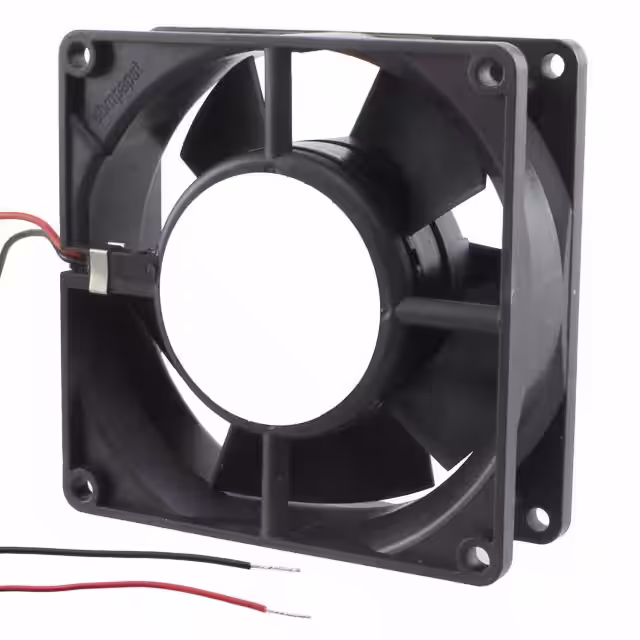

3312UFAN AXIAL 92X32MM 12VDC WIRE |
2,398 |
|
数据手册 |
3300U | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 47.1 CFM (1.32m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.419 lb (190.06 g) |
|
|
3314UFAN AXIAL 92X32MM 24VDC WIRE |
1,315 |
|
数据手册 |
3300U | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 47.1 CFM (1.32m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 2.6 W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
|
9WPA0612G400260X25MM 12V, SPLASH & DUST PROOF |
2,382 |
|
数据手册 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WPA0624G400260X25MM 24V, SPLASH & DUST PROOF |
2,965 |
|
数据手册 |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9GA1212S4002120X25MM 12V, LOW POWER DC 0 |
2,679 |
|
数据手册 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9GA1224G4002120X25MM 24V, LOW POWER DC 0 |
3,500 |
|
数据手册 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9GA1224S4002120X25MM 24V, LOW POWER DC 0 |
4,465 |
|
数据手册 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
11938MA-24P-ET-D0FAN AXIAL 119X38.4MM 24VDC WIRE |
2,824 |
|
数据手册 |
11938MA | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 181.2 CFM (5.13m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.5dB(A) | 22.4 W | 4700 RPM | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MA-24L-EL-D0FAN AXIAL 119X38.4MM 24VDC WIRE |
3,727 |
|
数据手册 |
11938MA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 122.2 CFM (3.46m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 49.5dB(A) | 8.4 W | 3200 RPM | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MA-24K-EL-D0FAN AXIAL 119X38.4MM 24VDC WIRE |
1,162 |
|
数据手册 |
11938MA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 102.8 CFM (2.88m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 45.0dB(A) | 6.24 W | 2700 RPM | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MA-24N-EL-D0FAN AXIAL 119X38.4MM 24VDC WIRE |
1,628 |
|
数据手册 |
11938MA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 162.1 CFM (4.59m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 56.5dB(A) | 17.8 W | 4200 RPM | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MA-24P-EL-D0FAN AXIAL 119X38.4MM 24VDC WIRE |
3,657 |
|
数据手册 |
11938MA | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 181.2 CFM (5.13m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 59.5dB(A) | 22.4 W | 4700 RPM | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
109BD12P2H01FAN BLOWER 76X30MM 12VDC WIRE |
4,399 |
|
数据手册 |
San Ace B76 | Box | Active | 12VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 12.7 CFM (0.356m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.5dB(A) | 4.44 W | 3000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9WPA0624G4D00160X25MM 24V, SPLASH & DUST PROOF |
2,025 |
|
数据手册 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WPA0624G400160X25MM 24V, SPLASH & DUST PROOF |
3,928 |
|
数据手册 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WPA0612G4D00160X25MM 12V, SPLASH & DUST PROOF |
4,568 |
|
数据手册 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
