直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4312MSFAN AXIAL 119X32MM 12VDC WIRE |
3,269 |
|
数据手册 |
4300 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 82.0 CFM (2.30m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 2.6 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
8305GFAN AXIAL 80X32MM 5VDC WIRE |
1,479 |
|
数据手册 |
8300 | Box | Obsolete | 5VDC | Square - 80mm L x 80mm H | 32.00mm | 28.3 CFM (0.792m³/min) | - | Sintec | Tubeaxial | - | 34.0dB(A) | 2.2 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
9CRB0412P5K001FAN AXIAL DUAL 40X56MM 12VDC |
1,933 |
|
数据手册 |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 26.8 CFM (0.750m³/min) | 2.930 in H2O (729.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 10.56 W | 19000 Front, 17000 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.222 lb (100.7 g) |
|
16006796AFN BLWR 80X32.4MM 24V WT24B3X-E3 |
4,591 |
|
数据手册 |
Whiffet | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 32.00mm | 15.0 CFM (0.420m³/min) | - | Ball | Blower | Locked Rotor Protection | 50.4dB(A) | 5.28 W | 4050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
PF80384B1-000U-A99Thermal Products |
1,519 |
|
数据手册 |
PF | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 105.8 CFM (2.96m³/min) | 2.460 in H2O (612.8 Pa) | Ball | Tubeaxial | Auto Restart | 62.6dB(A) | 18.24 W | 10500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PF80384BX-000U-A99Thermal Products |
4,821 |
|
数据手册 |
PF | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 134.3 CFM (3.76m³/min) | 3.350 in H2O (834.4 Pa) | Ball | Tubeaxial | Auto Restart | 67.5dB(A) | 33.6 W | 12900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
4212/12HFAN AXIAL 119X38MM 12VDC WIRE |
2,547 |
|
数据手册 |
4200 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 4.3 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.625 lb (283.5 g) |
.GN.jpg)
|

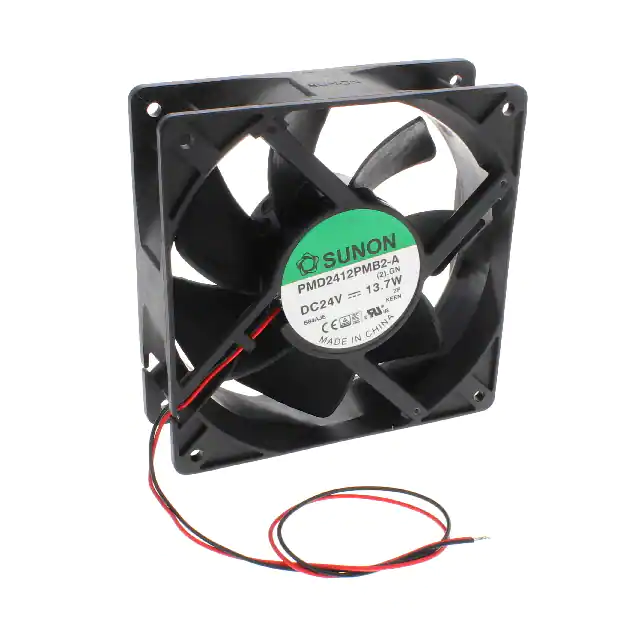

PMD2412PMB2-A.(2).GNFAN AXIAL 120X38MM 24VDC WIRE |
1,276 |
|
数据手册 |
PMD | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart | 51.0dB(A) | 13.7 W | 3800 RPM | 2 Wire Leads | - | - | - | 0.728 lb (330.22 g) |
|
|
PF80384B1-000U-H9948VDC FAN 80X38MM PWM |
1,736 |
|
数据手册 |
PF | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 104.4 CFM (2.96m³/min) | 2.460 in H2O (612.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 62.6dB(A) | 18.24 W | 10500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80384BX-000U-G9948VDC FAN 80X38MM ALARM |
3,856 |
|
数据手册 |
PF | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 134.3 CFM (3.76m³/min) | 3.350 in H2O (834.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 67.5dB(A) | 33.6 W | 12900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80384BX-000U-H9948VDC FAN 80X38MM PWM |
1,070 |
|
数据手册 |
PF | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 134.3 CFM (3.76m³/min) | 3.350 in H2O (834.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 67.5dB(A) | 33.6 W | 12900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80384B1-000U-G9948VDC FAN 80X38MM ALARM |
4,782 |
|
数据手册 |
PF | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 104.4 CFM (2.96m³/min) | 2.460 in H2O (612.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 62.6dB(A) | 18.24 W | 10500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80384B1-000U-F9948VDC FAN 80X38MM TACH |
3,701 |
|
数据手册 |
PF | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 104.4 CFM (2.96m³/min) | 2.460 in H2O (612.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 62.6dB(A) | 18.24 W | 10500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80384BX-000U-F9948VDC FAN 80X38MM TACH |
3,158 |
|
数据手册 |
PF | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 134.3 CFM (3.76m³/min) | 3.350 in H2O (834.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 67.5dB(A) | 33.6 W | 12900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
622NRDC TUBEAXIAL FAN |
3,690 |
|
数据手册 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 23.6 CFM (0.661m³/min) | 0.353 in H2O (88.0 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB(A) | 1.9 W | 6100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
PF40561BX-1000U-A9HFAN AXIAL DUAL 40X56MM 12VDC |
3,975 |
|
数据手册 |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.7 CFM (0.888m³/min) | 3.760 in H2O (936.6 Pa) | Ball | Tubeaxial (Dual) | Auto Restart | 65.9dB(A) | 16.68 W | 21500 Front, 18000 Rear | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF40561B1-1000U-A9HFAN AXIAL DUAL 40X56MM 12VDC |
3,808 |
|
数据手册 |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 26.9 CFM (0.753m³/min) | 2.640 in H2O (657.6 Pa) | Ball | Tubeaxial (Dual) | Auto Restart | 62.3dB(A) | 10.68 W | 18000 Front, 15000 Rear | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
MSI1225H12B-BBRFAN IMP MTRZD 120X25.8MM 12VDC |
2,112 |
|
数据手册 |
MSI1225 | Box | Active | 12VDC | Round - 120mm Dia | 25.80mm | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Motorized Impellers | Auto Restart | 54.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.356 lb (161.48 g) |
|
|
PF80384BX-000U-S9948VDC FAN 80X38MM TACH/PWM |
2,139 |
|
数据手册 |
PF | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 134.3 CFM (3.76m³/min) | 3.350 in H2O (834.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 67.5dB(A) | 33.6 W | 12900 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80384B1-000U-S9948VDC FAN 80X38MM TACH/PWM |
3,358 |
|
数据手册 |
PF | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 104.4 CFM (2.96m³/min) | 2.460 in H2O (612.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.6dB(A) | 18.24 W | 10500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
