直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3312GMFAN AXIAL 92X32MM 12VDC WIRE |
3,923 |
|
数据手册 |
3300 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 40.0 CFM (1.12m³/min) | - | Sintec | Tubeaxial | - | 34.0dB(A) | 1.7 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CSA, UL, VDE | 0.419 lb (190.06 g) |
.GN.jpg)
|
PMD1204PPB1-A.(2).GNFAN AXIAL DUAL 40X56MM 12VDC |
4,215 |
|
数据手册 |
PMD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 26.5 CFM (0.742m³/min) | 1.730 in H2O (430.9 Pa) | Ball | Tubeaxial (Dual) | - | 59.0dB(A) | 16.8 W | 14500 Front, 9500 Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.195 lb (88.45 g) |
|
PMD1204PPB2-A.(2).GNFAN AXIAL 40X56MM 12VDC WIRE |
4,303 |
|
数据手册 |
PMD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
OD1238-48MBVXEFAN AXIAL 120X38MM 48VDC WIRE |
3,872 |
|
数据手册 |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 215.0 CFM (6.02m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart | 58.2dB(A) | 34.2 W | 4450 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD1238-48HHBVXEFAN AXIAL 120X38MM 48VDC WIRE |
1,449 |
|
数据手册 |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 258.8 CFM (7.27m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Tubeaxial | Auto Restart | 62.3dB(A) | 56.4 W | 5475 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

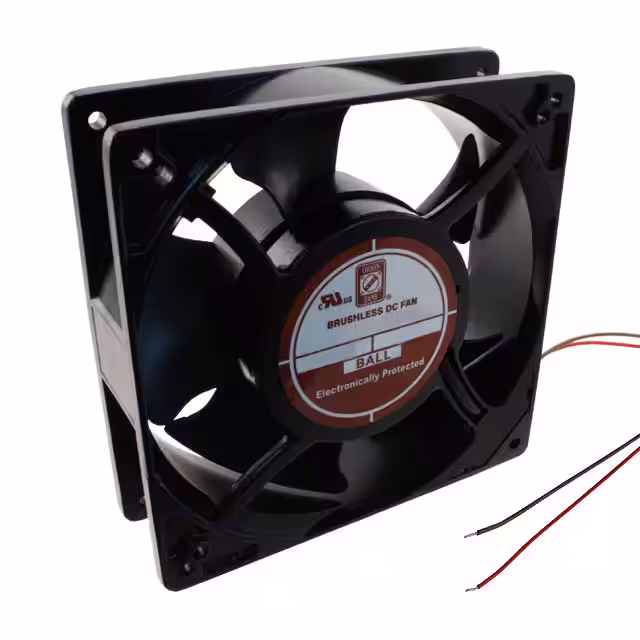

OD127AP-48HBFAN AXIAL 127X38.5MM 48VDC WIRE |
2,633 |
|
数据手册 |
OD127AP | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 140.0 CFM (3.92m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | - | 46.0dB | - | 3200 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD127AP-48LBDC FAN 48V 127X38MM |
3,817 |
|
数据手册 |
OD127AP | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 86.0 CFM (2.41m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 3.4 W | 1900 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD127AP-24MBDC FAN 24V 127X38MM |
2,188 |
|
数据手册 |
OD127AP | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.50mm | 108.0 CFM (3.02m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | 5.5 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD127AP-24LBDC FAN 24V 127X38MM |
2,489 |
|
数据手册 |
OD127AP | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.50mm | 86.0 CFM (2.41m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 3.6 W | 1900 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD127AP-48MBDC FAN 48V 127X38MM |
4,882 |
|
数据手册 |
OD127AP | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 108.0 CFM (3.02m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | 5 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD127AP-12MBDC FAN 12V 127X38MM |
3,942 |
|
数据手册 |
OD127AP | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.50mm | 108.0 CFM (3.02m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | 6 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
4312GMFAN AXIAL 119X32MM 12VDC WIRE |
4,065 |
|
数据手册 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 82.2 CFM (2.30m³/min) | - | Sintec | Tubeaxial | - | 39.0dB(A) | 2.6 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
|
PF40561BX-1000U-S9HFAN AXIAL DUAL 40X56MM 12VDC |
3,500 |
|
数据手册 |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.7 CFM (0.888m³/min) | 3.760 in H2O (936.6 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 65.9dB(A) | 16.68 W | 21500 Front, 18000 Rear | 4 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF40561B1-1000U-S9H12VDC FAN 40X56MM TACH/PWM |
4,305 |
|
数据手册 |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 26.9 CFM (0.753m³/min) | 2.640 in H2O (657.6 Pa) | Ball | Tubeaxial (Dual) | PWM Control | 62.3dB(A) | 10.68 W | 18000 Front, 15000 Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
4715VL-05W-B89-E00FAN AXIAL 120X38MM 24VDC WIRE |
2,028 |
|
数据手册 |
4715VL | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 243.2 CFM (6.81m³/min) | 1.457 in H2O (362.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 66.0dB(A) | 35.5 W | 6400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.816 lb (370.13 g) |
|
|
12038VA-24R-ET-00FAN AXIAL 120X38MM 24VDC WIRE |
4,223 |
|
数据手册 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 243.6 CFM (6.82m³/min) | 1.490 in H2O (371.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 66.0dB | 35.52 W | 6400 RPM | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
12038VA-24Q-ET-00FAN AXIAL 120X38MM 24VDC WIRE |
2,032 |
|
数据手册 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 215.7 CFM (6.04m³/min) | 1.150 in H2O (286.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 63.0dB | 24.96 W | 5700 RPM | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-12P-ET-00FAN AXIAL 120X38MM 12VDC WIRE |
4,489 |
|
数据手册 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.5dB | 18 W | 5000 RPM | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-12Q-ET-00FAN AXIAL 120X38MM 12VDC WIRE |
3,353 |
|
数据手册 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-12R-EL-00FAN AXIAL 120X38MM 12VDC WIRE |
2,299 |
|
数据手册 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 243.2 CFM (6.81m³/min) | 1.460 in H2O (363.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 66.0dB | 36 W | 6400 RPM | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | - | - |
