直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8412NGMEFAN AXIAL 80X25.4MM 12VDC WIRE |
129 |
|
数据手册 |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 1.4 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|

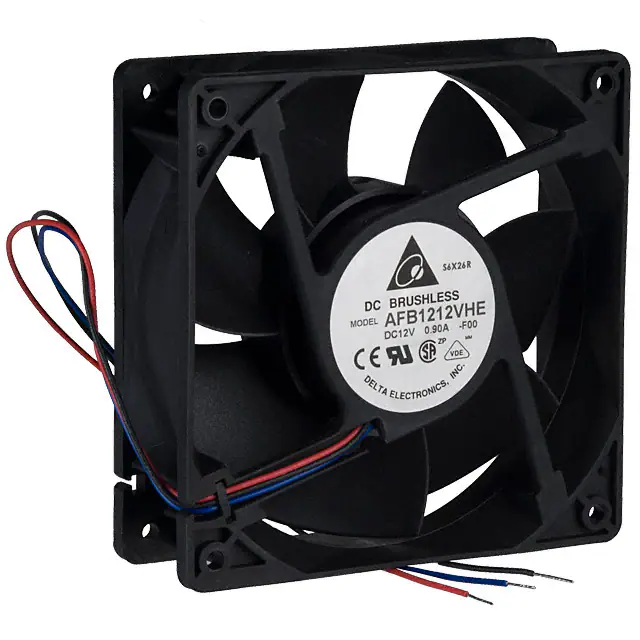

AFB1212VHE-F00FAN AXIAL 120X38MM 12VDC WIRE |
2,920 |
|
数据手册 |
AFB | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
DB200303H1A-3T0FAN BLOWER 20X3.2MM 3VDC WIRE |
759 |
|
数据手册 |
Slim-Line | Bulk | Active | 3VDC | Square - 20mm L x 20mm H | 3.20mm | 0.340 CFM (0.010m³/min) | 0.183 in H2O (45.6 Pa) | Ball | Blower | Speed Sensor (Tach) | 26.9dB(A) | 240 mW | 11000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.004 lb (1.81 g) |
|
9BMB12P2H01FAN BLOWER 97.1X33MM 12VDC WIRE |
359 |
|
数据手册 |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 13.2 W | 4850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
612FLFAN AXIAL 60X15MM 12VDC WIRE |
160 |
|
数据手册 |
600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 11.2 CFM (0.314m³/min) | - | Sintec | Tubeaxial | - | 16.0dB(A) | 400 mW | 2650 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.06 lb (27.22 g) |
|
AFB1224HE-F00FAN AXIAL 120X38MM 24VDC WIRE |
1,272 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 5.76 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|

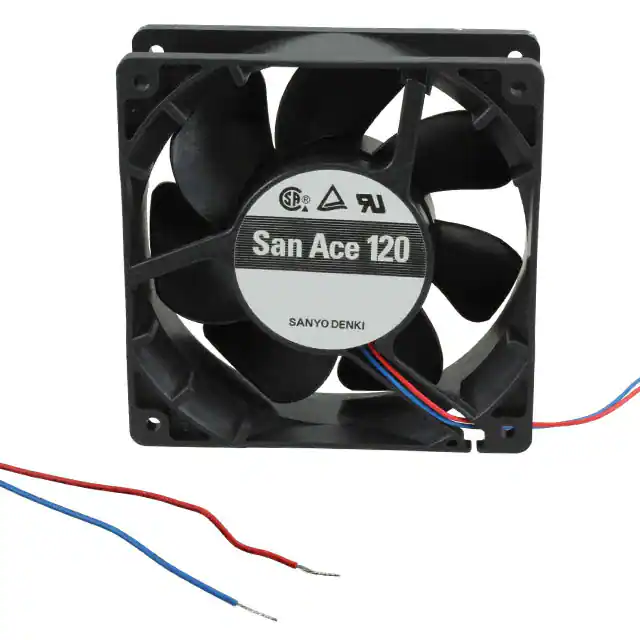

9G1224H1021FAN AXIAL 119X38MM 24VDC WIRE |
1,461 |
|
数据手册 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
AFB1224HE-R00FAN AXIAL 120X38MM 24VDC WIRE |
901 |
|
数据手册 |
AFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB(A) | 5.76 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|

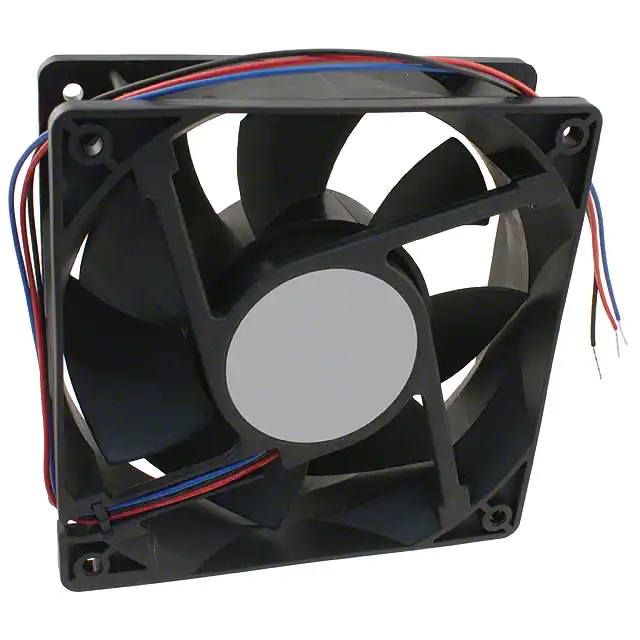

AFB1224SHE-F00FAN AXIAL 120X38MM 24VDC WIRE |
393 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 12 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|

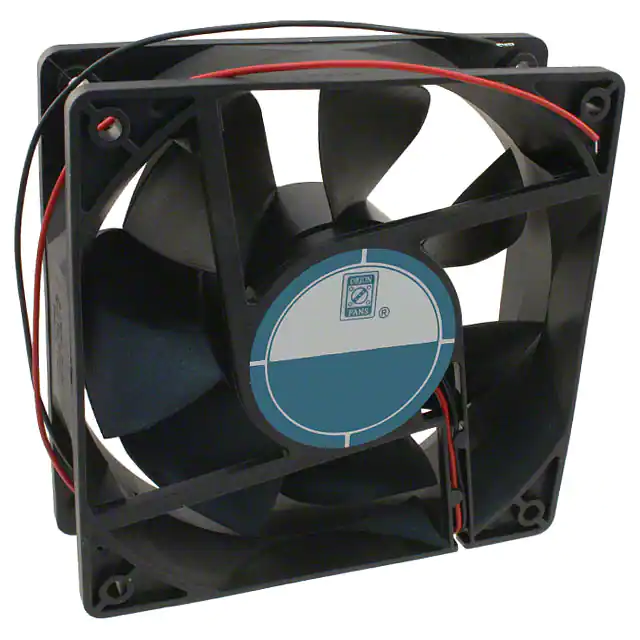

OD1238-24HHBFAN AXIAL 120X38MM 24VDC WIRE |
1,495 |
|
数据手册 |
OD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 154.0 CFM (4.31m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | - | 52.0dB | 14.4 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
9G1212E101FAN AXIAL 119X38MM 12VDC WIRE |
2,193 |
|
数据手册 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 7.32 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
MR1238E48B-FSRFAN AXIAL 120X38MM 48VDC WIRE |
149 |
|
数据手册 |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | Tubeaxial | Auto Restart | 67.9dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
CFM-8038BF-2150-662-20FAN AXIAL 80X38MM 24VDC WIRE |
165 |
|
数据手册 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 114.3 CFM (3.20m³/min) | 3.640 in H2O (906.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 66.3dB(A) | 35.04 W | 15000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9WP0648H402FAN AXIAL 60X25MM 48VDC WIRE |
123 |
|
数据手册 |
San Ace 60W | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.92 W | 3800 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

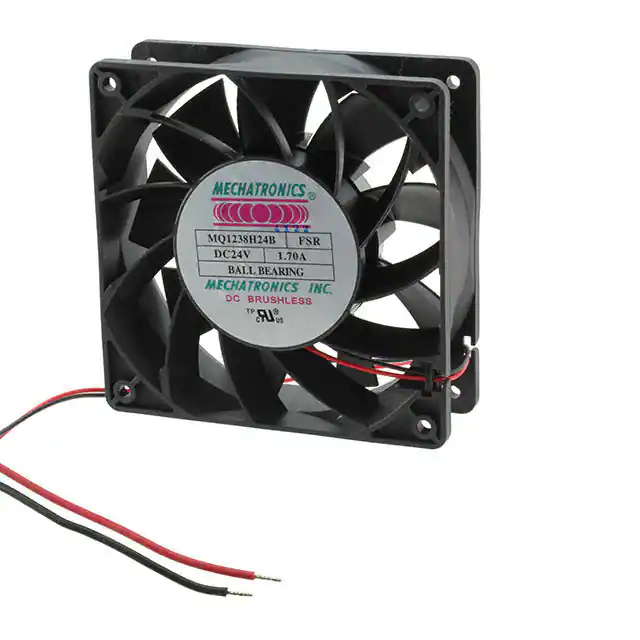

MQ1238H24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
159 |
|
数据手册 |
MQ1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.772 lb (350.17 g) |
|
9WF0424H6D01FAN AXIAL 40X20MM 24VDC WIRE |
247 |
|
数据手册 |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.2 CFM (0.258m³/min) | 0.361 in H2O (89.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 2.64 W | 13100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
9WF0424F601FAN AXIAL 40X20MM 24VDC WIRE |
138 |
|
数据手册 |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.8 CFM (0.218m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 1.82 W | 11000 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
9WP0812H401FAN AXIAL 80X25MM 12VDC WIRE |
139 |
|
数据手册 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1.56 W | 2900 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
9G1224H402FAN AXIAL 119X25MM 24VDC WIRE |
309 |
|
数据手册 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 4.08 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1224A4021FAN AXIAL 119X25MM 24VDC WIRE |
230 |
|
数据手册 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 100.0 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 5.04 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
