直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB1224LEFAN AXIAL 120X38MM 24VDC WIRE |
3,354 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 84.8 CFM (2.37m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 3.6 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
9BMB12G201FAN BLOWER 97.1X33MM 12VDC WIRE |
789 |
|
数据手册 |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 47.3 CFM (1.32m³/min) | 3.052 in H2O (760.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 61.0dB(A) | 21.6 W | 5750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
OD9238-24HBVXCFAN AXIAL 92.5X38MM 24VDC WIRE |
118 |
|
数据手册 |
OD9238 VA | Box | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 135.0 CFM (3.78m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | Auto Restart | 58.0dB | 16 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

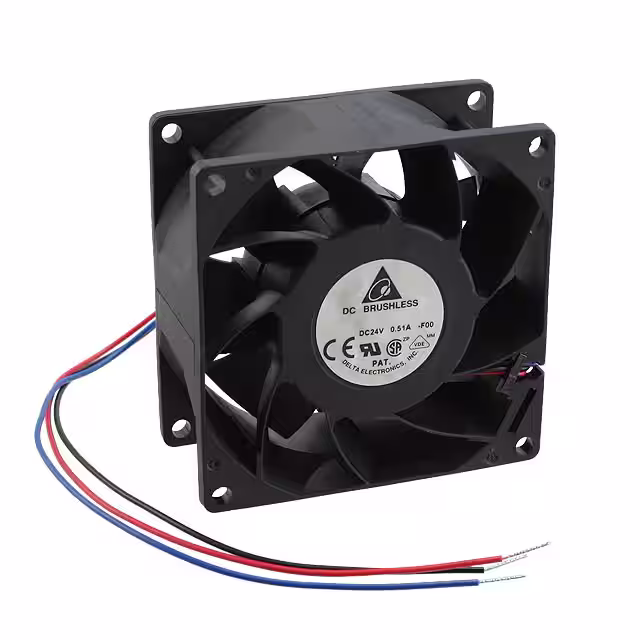

FFB0824SHE-F00FAN AXIAL 80X38MM 24VDC WIRE |
154 |
|
数据手册 |
FFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 68.5 CFM (1.92m³/min) | 0.591 in H2O (147.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.5dB(A) | 8.16 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
OD9225-24HBIP69KFAN AXIAL 92X25MM 24VDC WIRE |
179 |
|
数据手册 |
OD9225-IP69K | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB(A) | 3.5 W | 2900 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

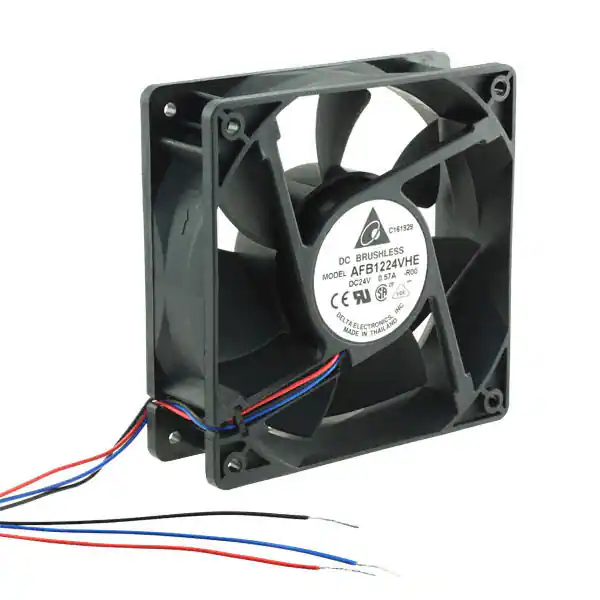

AFB1224VHE-R00FAN AXIAL 120X38MM 24VDC WIRE |
3,183 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 9.12 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
DC0602512W2B-BT0FAN AXIAL 60X25MM 12VDC WIRE |
419 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 55.4 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 6.48 W | 9800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.126 lb (57.15 g) |
|
614NGLFAN AXIAL 60X25.4MM 24VDC WIRE |
475 |
|
数据手册 |
600NG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 12.4 CFM (0.347m³/min) | - | Sintec | Tubeaxial | - | 16.0dB(A) | 1 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
|
CFM-A238-13-10FAN AXIAL 120X38MM 12VDC WIRE |
408 |
|
数据手册 |
CFM-120 | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 200.9 CFM (5.63m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 61.5dB(A) | 21 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.656 lb (297.56 g) |
|
AFB1224SH-T500FAN AXIAL 120X25.4MM 24VDC WIRE |
682 |
|
数据手册 |
AFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 6.72 W | 3400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
9WF0624H701FAN AXIAL 60X15MM 24VDC WIRE |
146 |
|
数据手册 |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 44.0dB(A) | 2.88 W | 6800 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.137 lb (62.14 g) |
|

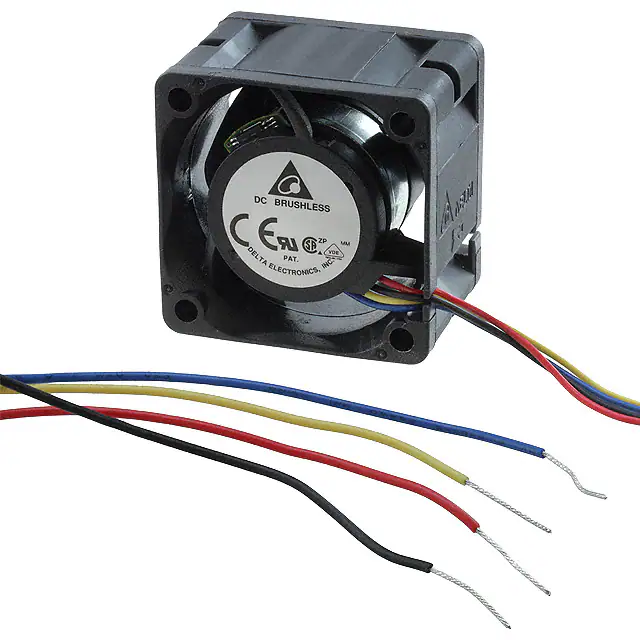

PFB0412EHN-TP06FAN AXIAL 40X28MM 12VDC WIRE |
4,904 |
|
数据手册 |
PFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 21.8 CFM (0.610m³/min) | 1.431 in H2O (356.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.5dB(A) | 6 W | 16000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
|
9WP0624H401FAN AXIAL 60X25MM 24VDC WIRE |
501 |
|
数据手册 |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.44 W | 3800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9WP0612H401FAN AXIAL 60X25MM 12VDC WIRE |
492 |
|
数据手册 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.32 W | 3800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

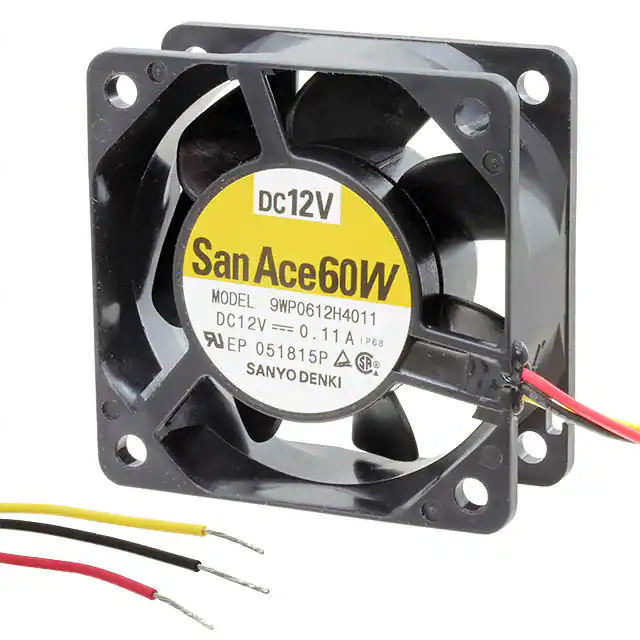

9WP0612H4011FAN AXIAL 60X25MM 12VDC WIRE |
241 |
|
数据手册 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.32 W | 3800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
AFB0648SH-AFAN AXIAL 60X25.4MM 48VDC WIRE |
1,791 |
|
数据手册 |
AFB | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.40mm | 34.2 CFM (0.958m³/min) | 0.422 in H2O (105.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 5.28 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|

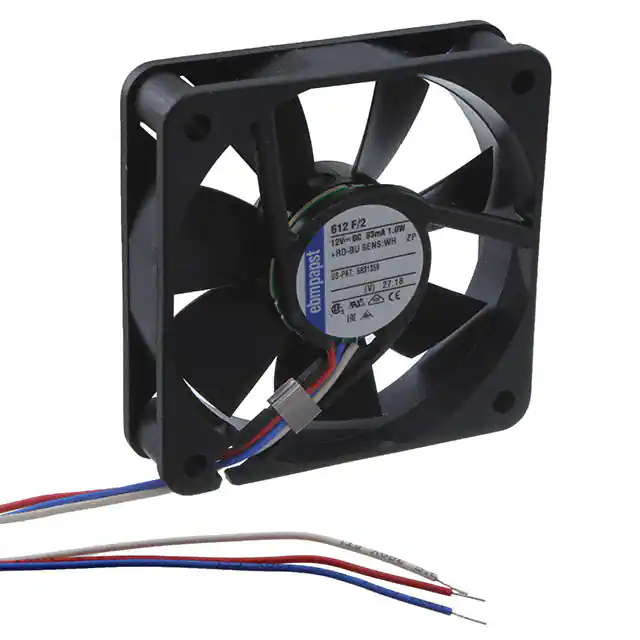

612F/2FAN AXIAL 60X15MM 12VDC WIRE |
135 |
|
数据手册 |
600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.1 CFM (0.479m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 19.0dB(A) | 1 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
PFB0512EHF-R00FAN AXIAL 50X32MM 12VDC WIRE |
237 |
|
数据手册 |
PFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 32.00mm | 31.6 CFM (0.885m³/min) | 1.051 in H2O (261.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.2dB(A) | 6.48 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
|
DC0602524W2B-BT0FAN 60X25MM 24VDC PWM/TACH |
499 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 55.2 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 12.96 W | 9800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
UB3H3-700BFAN BLOWER 17X3MM VAPO 3VDC WIRE |
446 |
|
数据手册 |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.244 CFM (0.007m³/min) | 0.162 in H2O (40.3 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 32.0dB(A) | 100 mW | 12500 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
