直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0605H402FAN AXIAL 60X25MM BALL 5VDC WIRE |
136 |
|
数据手册 |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.7 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
MA2506L05C-RSRFAN AXIAL 25X6.1MM 5VDC WIRE |
236 |
|
数据手册 |
MA2506 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 6.10mm | 1.2 CFM (0.034m³/min) | 0.050 in H2O (12.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | 11.0dB(A) | - | 6500 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.018 lb (8.16 g) |
|
F8025X12B-FSR-EMFAN AXIAL 80X25MM 12VDC WIRE |
235 |
|
数据手册 |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 51.0 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 35.0dB(A) | - | 3200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
|
F8025X12B-FHR-EMFAN AXIAL 80X25MM 12VDC WIRE |
143 |
|
数据手册 |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 4200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
|
F8025X24B-FHR-EMFAN AXIAL 80X25MM 24VDC WIRE |
133 |
|
数据手册 |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 4200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
|
F8025H24B-FHR-EMFAN AXIAL 80X25MM 24VDC WIRE |
106 |
|
数据手册 |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 3200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
ND35B00FAN BLOWER 30X4.5MM 5VDC WIRE |
1,748 |
|
数据手册 |
ND - Miniature | Box | Active | 5VDC | Square - 30mm L x 30mm H | 4.50mm | 1.1 CFM (0.031m³/min) | 0.409 in H2O (102.0 Pa) | Sleeve | Blower | Locked Rotor Protection | 49.5dB(A) | 500 mW | 10500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | cURus, TUV | 0.011 lb (4.99 g) |
|

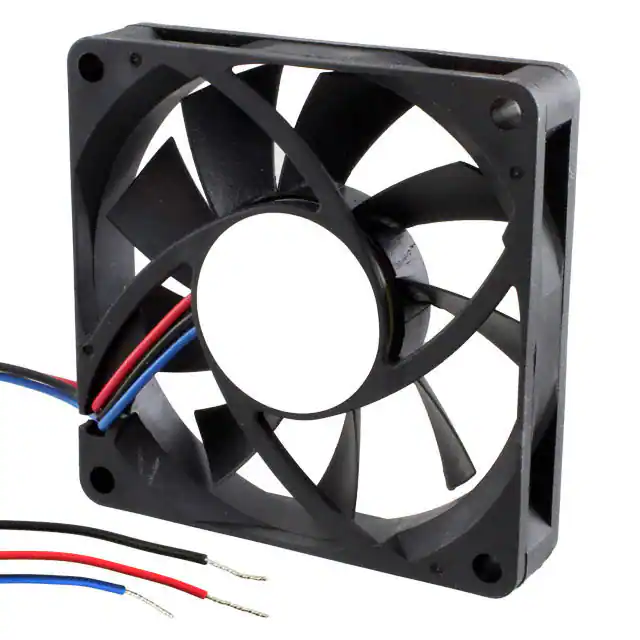

AFB0724HHB-F00FAN AXIAL 70X15MM 24VDC WIRE |
1,375 |
|
数据手册 |
AFB | Box | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 37.5 CFM (1.05m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.5dB(A) | 3.6 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
FFB0812SHE-R00FAN AXIAL 80X38MM 12VDC WIRE |
362 |
|
数据手册 |
FFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 68.5 CFM (1.92m³/min) | 0.591 in H2O (147.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.5dB(A) | 6.96 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|

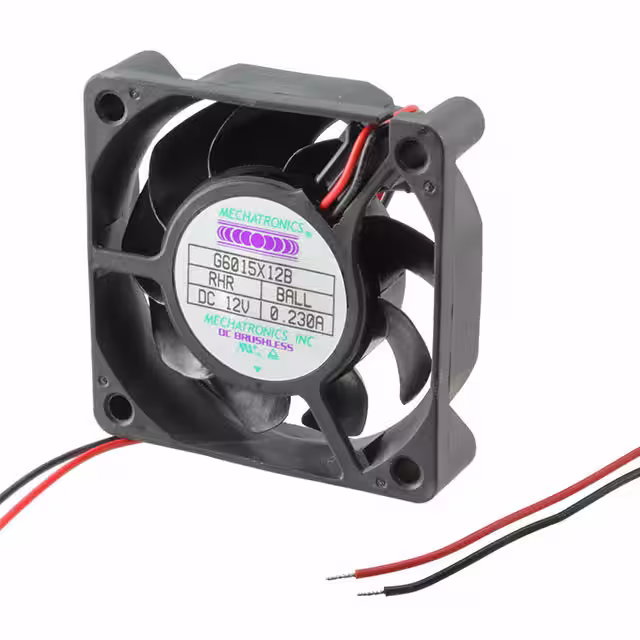

G6015X12B-RHR-EMFAN AXIAL 60X15MM 12VDC WIRE |
226 |
|
数据手册 |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 22.0 CFM (0.616m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | - | 5600 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
G6015X24B-AGR-EMFAN AXIAL 60X15MM 24VDC WIRE |
237 |
|
数据手册 |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 24.0 CFM (0.672m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5800 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
109R0824S401FAN AXIAL 80X25MM 24VDC WIRE |
2,231 |
|
数据手册 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
CFM-A238V-231-480-20FAN AXIAL 120X38MM 24VDC WIRE |
1,167 |
|
数据手册 |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB(A) | 10.57 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
|
109R0824S4011FAN AXIAL 80X25MM 24VDC WIRE |
553 |
|
数据手册 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
AFB0812SHBFAN AXIAL 80X15MM 12VDC WIRE |
1,098 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 42.7 CFM (1.20m³/min) | 0.216 in H2O (53.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.5dB(A) | 3.24 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
412FFAN AXIAL 40X10MM 12VDC WIRE |
2,303 |
|
数据手册 |
400F | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.7 CFM (0.132m³/min) | - | Sintec | Tubeaxial | - | 22.1dB(A) | 700 mW | 5400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.038 lb (17.24 g) |
|
04020VE-12Q-CT-00FAN AXIAL 40X20MM 12VDC WIRE |
2,642 |
|
数据手册 |
04020VE | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 12.4 CFM (0.347m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.0dB(A) | 2.52 W | 11000 RPM | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|
DC0402812V2B-2T0FAN AXIAL 40X28MM 12VDC WIRE |
124 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 29.5 CFM (0.826m³/min) | 2.890 in H2O (719.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.0dB(A) | 13.2 W | 21000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
PF40281B3-1000U-A9HFAN AXIAL 40X28MM 12VDC WIRE |
3,615 |
|
数据手册 |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.4 CFM (0.431m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 43.9dB(A) | 1.74 W | 11000 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|

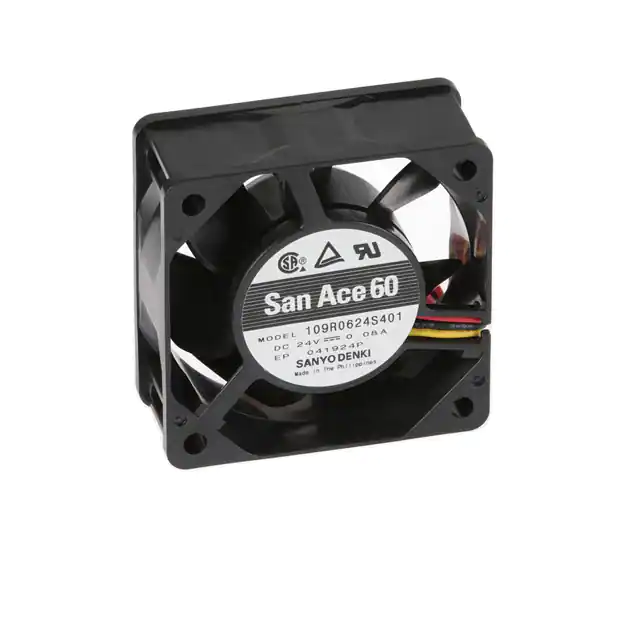

109R0624S401FAN AXIAL 60X25MM 24VDC WIRE |
162 |
|
数据手册 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 1.92 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
